Target · Diagram
Find this reference above

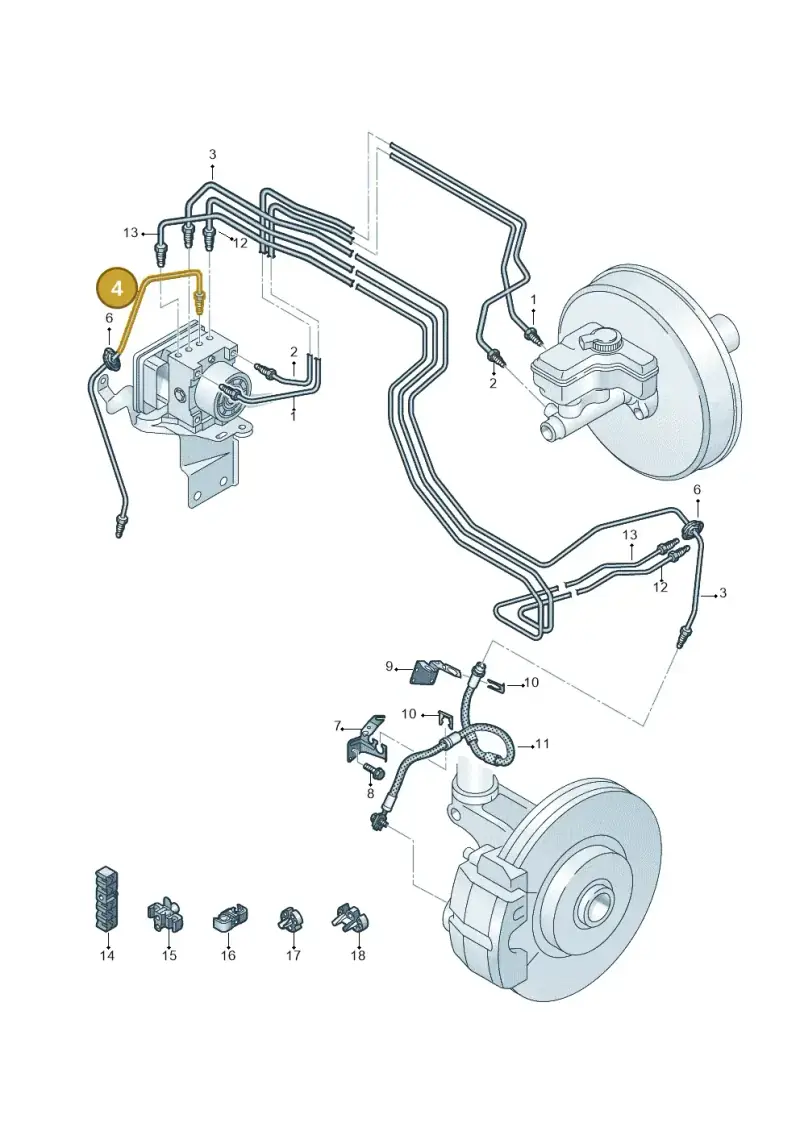

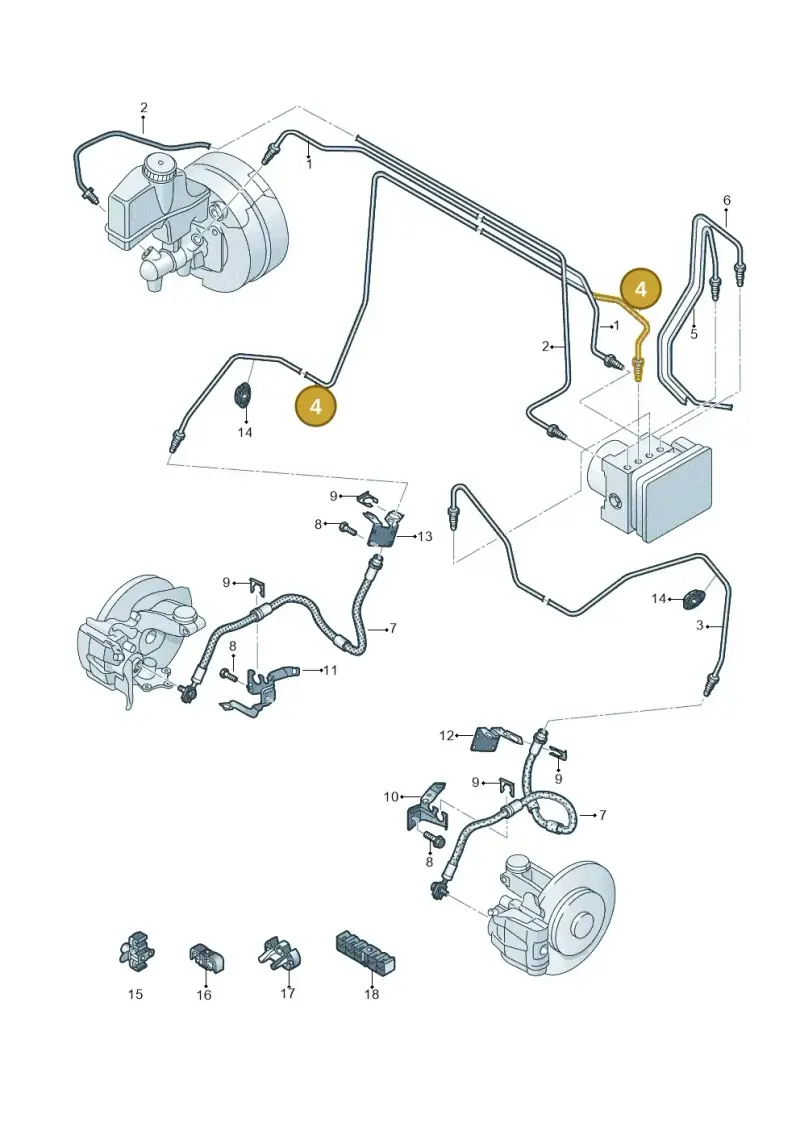

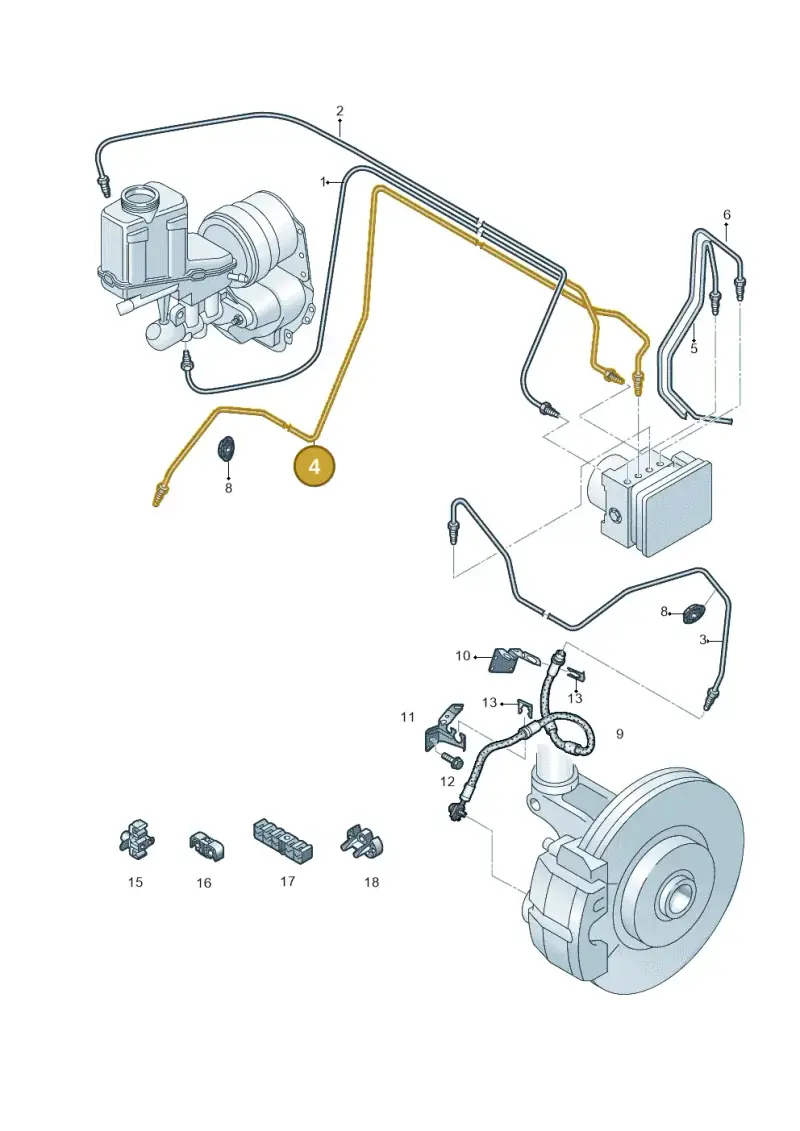

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Right Brake Pipe, part number 5QC614724. This critical component is designed to safely carry hydraulic fluid under high pressure throughout the braking system, enabling effective brake activation. It is installed on the right side of the vehicle. This brake pipe measures 0.92 meters in length and weighs 0.122 kg. Opting for a genuine OEM brake pipe ensures precise routing, correct material composition for pressure resistance, and leak-free performance, which is paramount for braking safety.
Technical details
- Category
- Brakes
- Country of origin
- Germany
- Customs (HS) code
- 87083091
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 92 × 33 × 6 cm
- Shipping weight
- 0.12 kg
Parts diagram & fitment
7 vehiclesBrake Pipe From Hydraulics To Brake Hose — locate 5QC614724 Audi Right Brake Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(18)
- 1Brake Pipe 5QC614739
- 2Brake Pipe 5QC614740
- 3Brake Pipe 5QC614723
- 5Brake Pipe 5QC614725A
- 6Brake Pipe 5QC614726A
- 7Brake Hose 83A611707B
- 7Brake Hose 8V0611701
- 8Screw N10703001
- 9Bracket 191611715
- 10Retainer 8V0611841
- 11Retainer 8V0611842
- 12Retainer 5Q0611845B
- 13Retainer 5Q0611846B
- 14Grommet 1K0611751
- 15Bracket 5Q0611797E
- 16Clip 6R0611797D
- 17Bracket 1K0611853
- 18Bracket 5Q0611797A
Diagrams & fitment data powered by oemdiagrams.com
5QC614724 Audi Right Brake Pipe | Genuine OEM is fitted on: Audi RSQ3 Sportback 2019-2024; Audi Q3 quattro 2018-2019; Caddy Maxi Kombi 2020-2024; Touran 2,0 BlueMotion 2015-2024; Tiguan 2.0 4Motion 2016-2024; Tarraco FR 2018-2024; Kodiaq 2016-2024.
