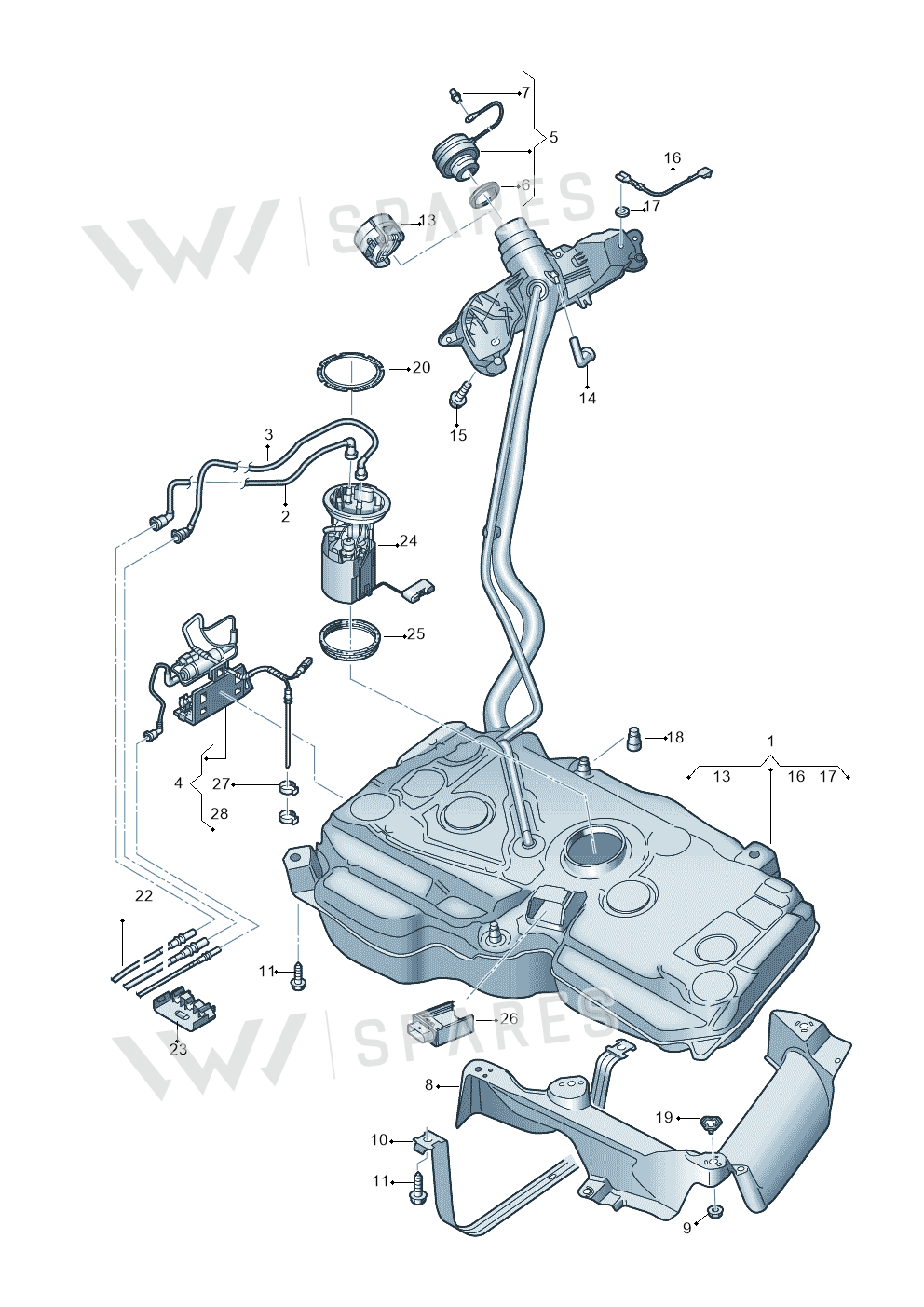

Fuel Tank exploded parts diagram — Kodiaq · 2018-2022, position 1
Exploded view
Kodiaq · 2018-2022 · position 1Full diagram ↓
5QF201060T

5QF201060T Fuel Tank

€1,075.67
incl. 21% VAT

€888.98 excl. VAT

Supersession roadforks into 2
  1. 5QF201060TThis pageNot stocked
    Jul 2019
  2. 5QF201060ATNot stocked
    Aug 2019
  1. 5QF201060CFCurrent number
  2. 5QF201060CLCurrent · not stocked
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.

Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

4 vehicles

Fuel Tank — locate Fuel Tank in the official exploded view and explore the surrounding assembly.

Parts in this assembly19
Vehicle fitment table4

Europe (3)

VehicleYearsPos.Qty
Kodiaq2018-202211
Tiguan 2.0 4Motion2016-202411
Kodiaq2016-202411

Other markets (1)

VehicleYearsPos.Qty
Tiguan 2.0 4Motion2016-202211

Diagrams & fitment data powered by oemdiagrams.com

Fuel Tank is fitted on: Kodiaq 2018-2022; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; Tiguan 2.0 4Motion 2016-2022.
