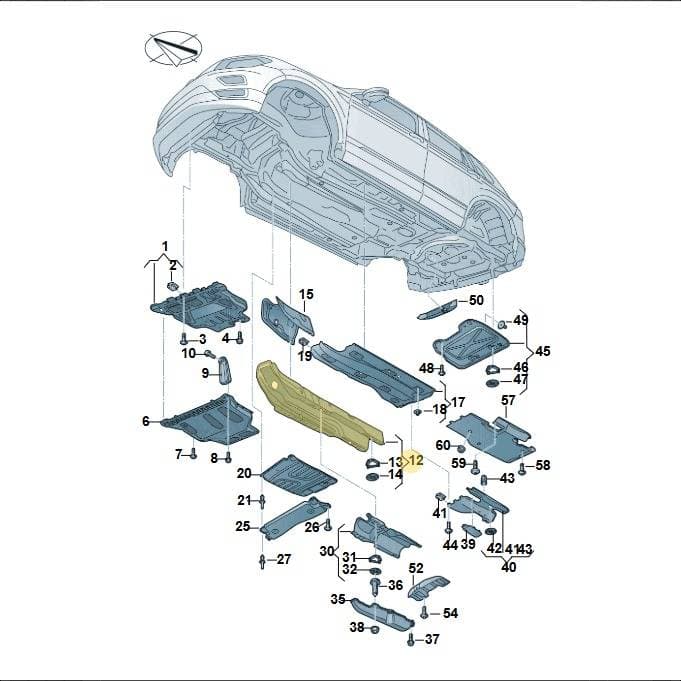

Number 12 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Tunnel Heat Shield, part number 5QF825662D. This heat shield is located in the tunnel area of the vehicle, protecting components from heat. It is positioned as part 12 in the diagram. Crafted from robust materials for effective thermal insulation. Genuine OEM parts ensure precise fit and factory standards.
Technical details
- Category
- Underbody & Splash Shields
- Country of origin
- Switzerland
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 176 × 56 × 32 cm
- Shipping weight
- 1.17 kg
Parts diagram & fitment
6 vehiclesHeat Shield For Tunnel — locate 5QF825662D Volkswagen Tunnel Heat Shield | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(40)
- 6UnderrunLeft5QF825901B
- 6UnderrunRight5QF825902
- 6UnderrunRight5QF825902C
- 6UnderrunLeft5QF825901A
- 7Bolt N90974701
- 8Bolt N0195307
- 9Bracket MtRight5Q0825922A
- 9Bracket MtLeft5Q0825921
- 10Bolt N10574702
- 12Heat ShLeft5QF825661D
- 13Washer WHT003386
- 14Washer N90335004
- 15Insulation 5QA825635
- 17TrimLeft5QF825201G
- 17TrimRight5QF825202C
- 17TrimRight5QF825202Q
- 17TrimLeft5QF825201C
- 18Collar Nut WHT000713
- 19Part N90959101
- 20Trim 5QA825230
- 21Spring Rivet WHT008023
- 25Trim 5Q0825230J
- 30Heat Sh 5QA825613A
- 30Heat Sh 5QA825613E
- 35TrimLeft5QF825101A
- 35TrimRight5QF825102B
- 35Trim 5QF825206A
- 39Part WHT003491
- 40Bungs 5QA825961A
- 41Heat Sh 5QF825701F
- 41Heat Sh 5QF825701D
- 45Trim 565825205C
- 45Trim 565825205D
- 45Trim 565825205E
- 45Trim 565825205B
- 49Trim 565825205
- 52Bungs N91150301
- 53Bracket 565825135A
- 53Bracket 565825135
- 54Collar Nut N01508210
Compatible / alternative parts(11)
- Part 5QA825613A
- Part 5QA825613D
- Part 5QA825613E
- PartRight5QF825202C
- PartLeft5QF825201C
- PartLeft5QF825201G
- PartLeft5QF825201P
- Part 5QF825236
- PartRight5QF825236A
- Part 5QF825236D
- Part 5QF825236E
Diagrams & fitment data powered by oemdiagrams.com
5QF825662D Volkswagen Tunnel Heat Shield | Genuine OEM is fitted on: Kodiaq 2018-2022; Kodiaq 2017-2022; Kodiaq 2016-2024; Tiguan 2016-2023; Tiguan 2.0 4Motion 2017-2024; Tarraco FR 2018-2024.
