Target · Diagram
Find this reference above

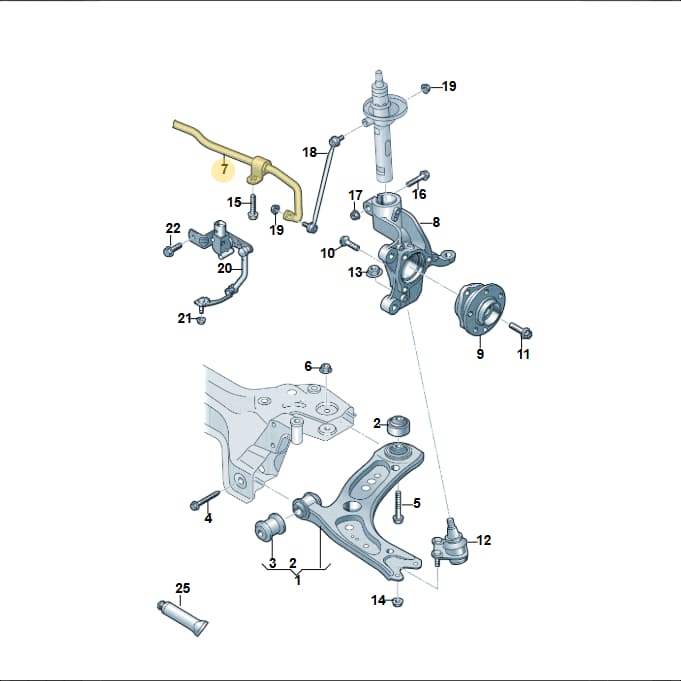

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Complete Stabilizer Bar, part number 5QM411303A. This component is part of the vehicle's suspension system and is designed to reduce body roll during cornering by counteracting the forces that cause the vehicle to lean. It connects the left and right sides of the suspension to provide lateral stability. Genuine OEM stabilizer bars are manufactured to precise specifications for optimal handling and ride comfort.
Technical details
- Category
- Steering
- Customs (HS) code
- 87088055
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 105 × 27 × 9.5 cm
- Shipping weight
- 3.11 kg
Parts diagram & fitment
5 vehiclesStabilizer Complete — locate 5QM411303A Volkswagen Stabilizer Bar | Suspension in the official exploded view and explore the surrounding assembly.
Parts in this assembly(43)
- 1Control ArmRight5QM407152B
- 1Control ArmLeft5QM407151B
- 2Rubber Bush 5Q0407183K
- 3Rubber Bush 5Q0407182A
- 4Bolt N91217701
- 5Bolt N10640501
- 6Collar Nut N0150818
- 7Stabilizer 5QM411303
- 8HousingLeft5Q0407253A
- 8HousingRight5Q0407254A
- 8HousingLeft5QM407253
- 8HousingRight5QM407254
- 8HousingLeft5QM407255B
- 8HousingRight5QM407256A
- 8HousingRight5QM407256B
- 8HousingLeft5QM407255A
- 9Wheel Hub 5Q0407621E
- 9Wheel Hub 5Q0407621F
- 9Wheel Hub 5WA407621A
- 9Wheel Hub 5WA407621B
- 10Ball Screw WHT000237
- 10Ball Screw WHT000237C
- 11Bolt WHT005437A
- 12JointLeft3C0407365B
- 12JointRight3C0407366B
- 12JointLeft5Q0407365E
- 12JointRight5Q0407366E
- 12JointLeft5QM407365
- 12JointRight5QM407366
- 12JointRight5QM407366A
- 12JointLeft5QM407365A
- 13Ut Hexagon Nut Self-locking Hexagon Nut N90942902
- 14Collar Nut N10332002
- 15Screw N10690201
- 16Bolt N90954802
- 17Collar Nut N10106402
- 18Coupl Rod 5Q0411315A
- 18Coupl Rod 5QM411315
- 20SensorRight5Q0412522C
- 20SensorLeft5Q0412521C
- 21Collar Nut N10205802
- 22Bolt N10653201
- 25Grease G052150A2
Compatible / alternative parts(12)
- Part 1K0411315J
- Part 1K0411315K
- Part 1K0411315P
- Part 1K0411315R
- Part 1KD411315
- Part 1KD411315A
- Part 5Q0411315A
- Part 5Q0411315D
- Part 5QM411315
- Part N0150814
- Part 5Q0412249E
- Part N0150816
Diagrams & fitment data powered by oemdiagrams.com
5QM411303A Volkswagen Stabilizer Bar | Suspension is fitted on: Jetta 1.4 2017-2024; POLO HATCH "ZA"06> 2005-; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; golf 1.6 2015-2019.
