Product overview

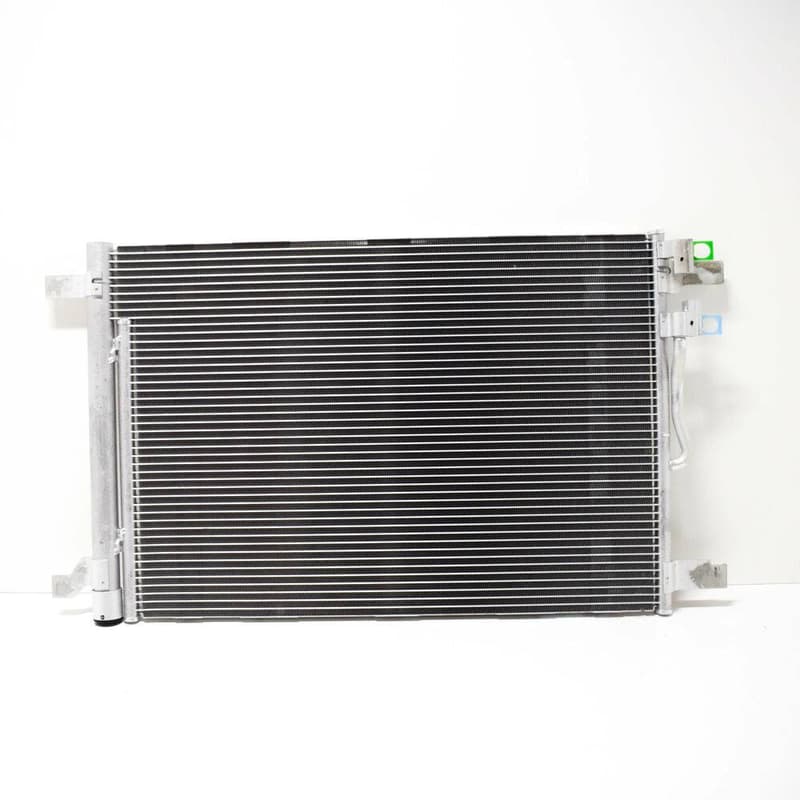

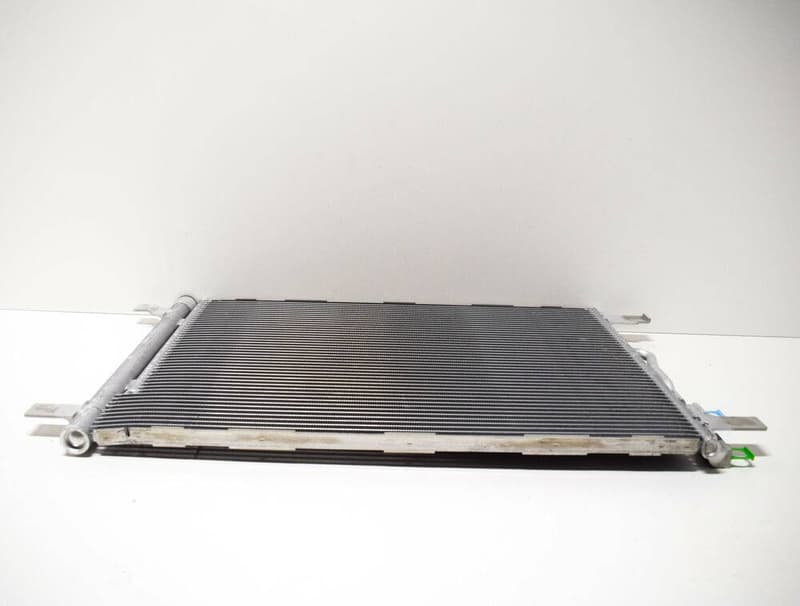

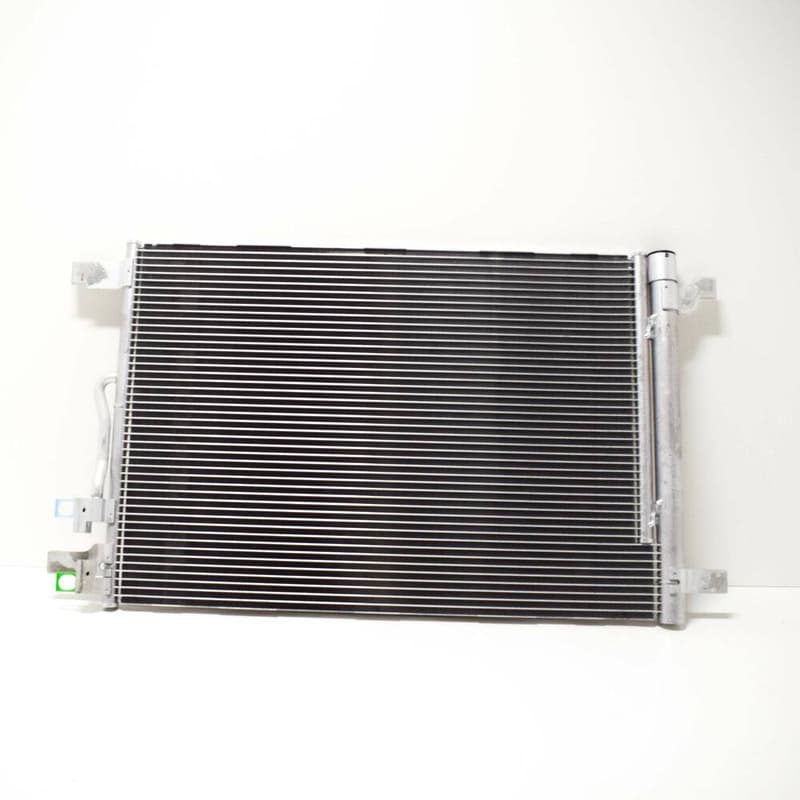

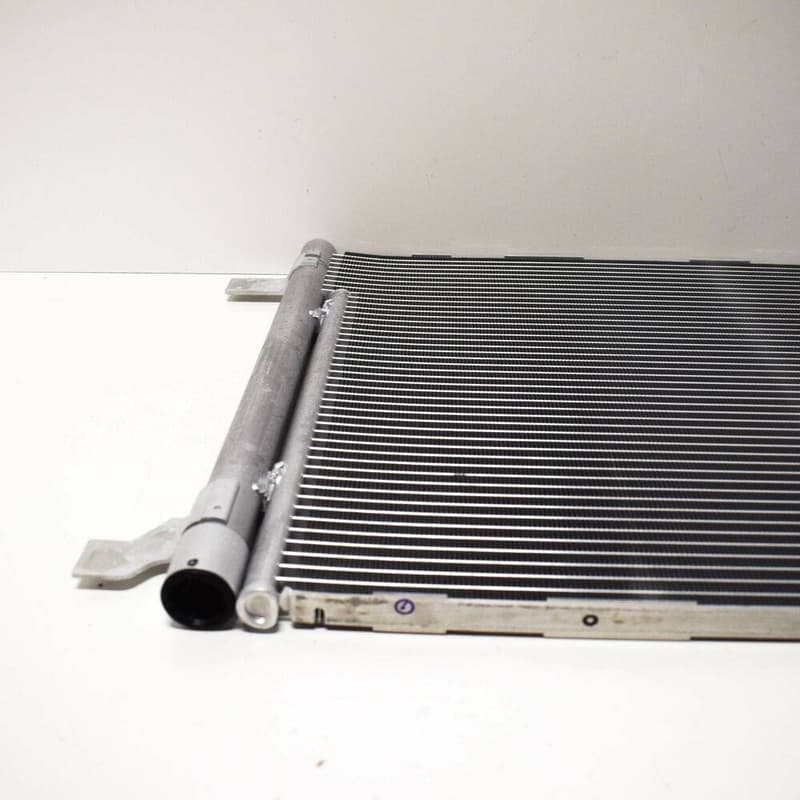

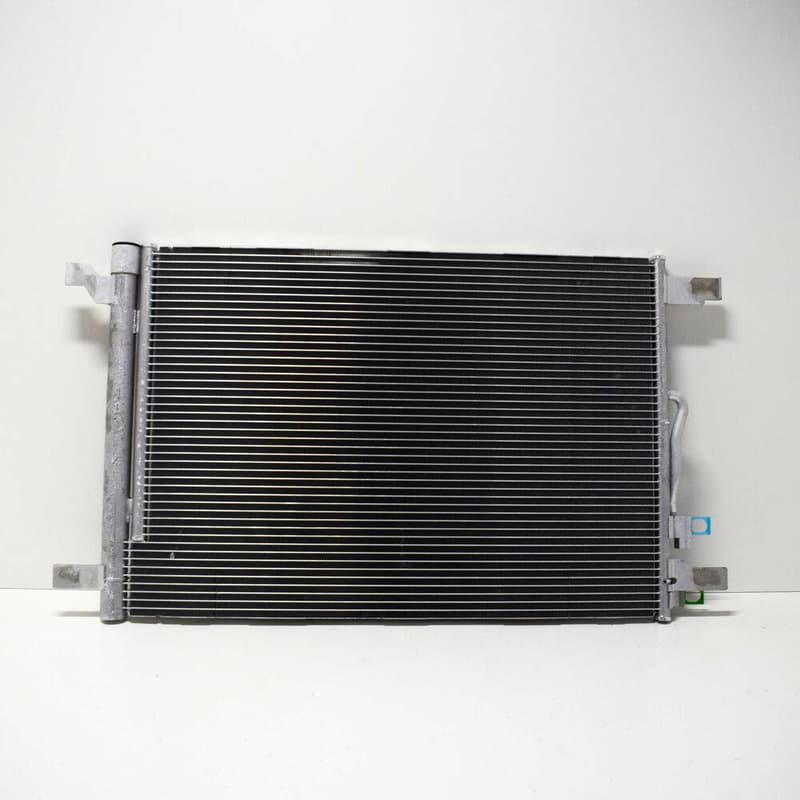

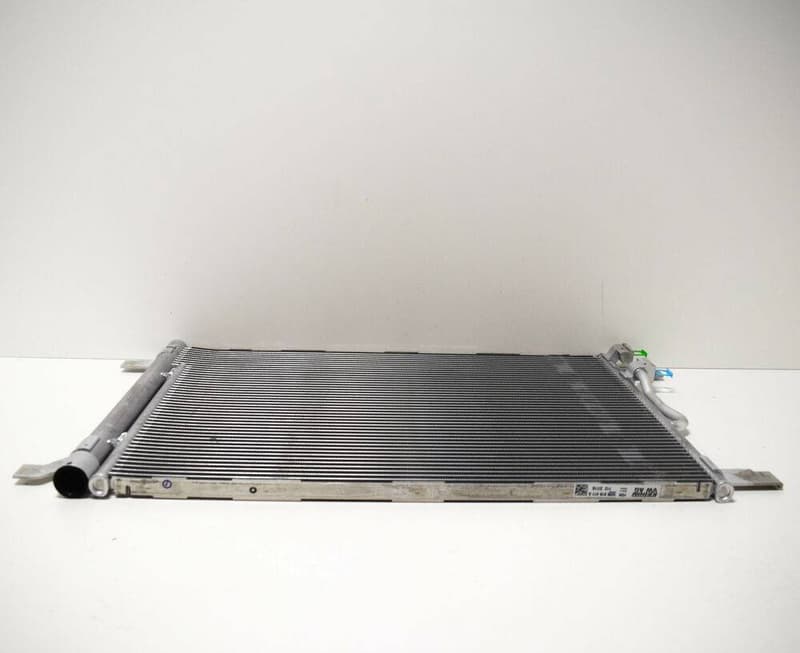

Genuine OEM Volkswagen A/C Condenser, part number 5QM816411B. This vital component of the air conditioning system is responsible for cooling and condensing high-pressure refrigerant, transforming it from a gas to a liquid. It is typically mounted at the front of the vehicle to receive optimal airflow. Constructed from lightweight aluminum, it weighs approximately 2.69 kg. A genuine OEM condenser ensures efficient heat exchange and proper system pressure, critical for reliable and long-lasting air conditioning performance.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84159000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 71.5 × 40 × 4 cm
- Shipping weight
- 2.69 kg
Parts diagram & fitment
3 vehiclesA C Condenser With Fluid Reservoir — locate 5QM816411B Volkswagen A/C Condenser | HVAC System in the official exploded view and explore the surrounding assembly.
Parts in this assembly(32)
- 1Part 5Q0816411AR
- 1Condenser 5QM816411D
- 1Condenser 5QM816411E
- 2Insert 5Q0298403A
- 5Line 5Q0816721AQ
- 5Line 5QM816721
- 6Seal Ring 3D0260749C
- 7Seal Ring 4E0260749A
- 8Screw N10414402
- 9Bolt N10347103
- 11Line 5Q0816741C
- 11Line 5Q0820741C
- 12Valve 8E0820855
- 13Part 5Q0816581
- 13Part 3C0820581
- 14Valve 8A0820855AA
- 15Seal Ring 7H0820896
- 16Part 4H0959126B
- 16Part 5Q0959126A
- 17Seal Ring 4D0260749B
- 20Line 5Q0816743H
- 20Line 5Q0820743C
- 22Part 5Q0816231
- 22Part 3C0820231
- 23Seal Ring 8E0260749C
- 28Bracket 5Q0820769
- 29Clip 5Q0820774
- 30Line 5QM816738B
- 30Part 5WB816738F
- 32Seal Ring 4E0260749B
- 33Collar Nut N01508210
- 34Bolt N91096801
Compatible / alternative parts(11)
- Part 4D0260749B
- Part 180121367
- Part 1K0121367F
- Part 1KD121367D
- Part 3D0260749C
- Part 5Q0129254B
- Part 5Q0129254C
- Part 5Q0129254J
- Part 5QD129254
- Part 5QD129254A
- Part 5QM129254
Diagrams & fitment data powered by oemdiagrams.com
5QM816411B Volkswagen A/C Condenser | HVAC System is fitted on: Taos 1.4 2020-2024; Jetta 1.4 2017-2024; Tiguan 2.0 4Motion 2017-2024.
