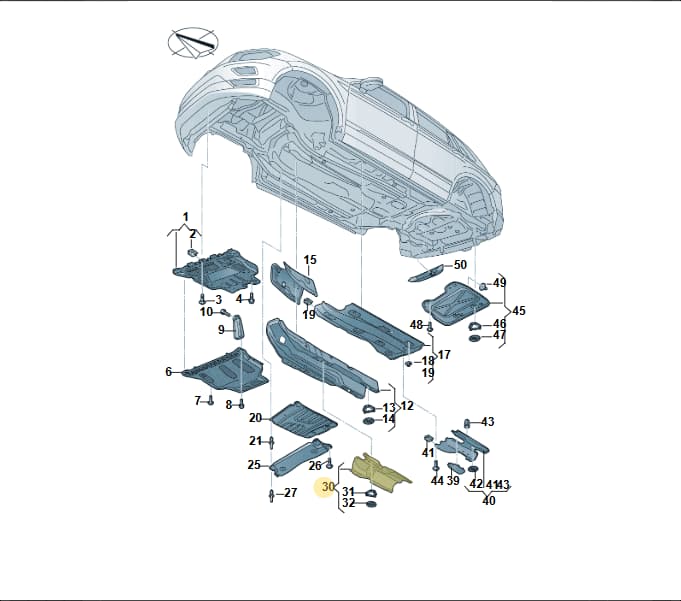

Number 30 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Shield, part number 5QS825613. This heat shield is designed to protect underbody components from excessive heat generated by the drivetrain. It is typically mounted in the central underbody area, near the propeller shaft. Genuine OEM heat shields are manufactured to precise specifications to ensure proper fitment and effective heat dissipation, maintaining the integrity of surrounding components.
Catalogue entry: HEAT SH. center; CARD. SHAF.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- SEAT
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 77.5 × 48 × 12 cm
- Shipping weight
- 0.7 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 1X1
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesHeat Sh — locate 5QS825613 Volkswagen Heat Shield | Underbody in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1InsulationRight5QF825236
- 1InsulationRight5QF825236A
- 2Part N90959101
- 3Bolt N90974701
- 4Bolt WHT000729A
- 12Heat ShLeft5QS825661
- 12Heat ShLeft5QS825661B
- 12Heat ShRight5QS825662
- 15Insulation 5QS825635
- 17TrimLeft5QS825201
- 17TrimLeft5QS825201B
- 17TrimLeft5QS825201D
- 17TrimRight5QS825202
- 17TrimRight5QS825202B
- 17TrimRight5QS825202D
- 18Washer WHT007663
- 20Trim 5QA825230
- 20Trim 5QF825230
- 21Spring Rivet N91245101
- 25Trim 5Q0825230J
- 27Spring Rivet WHT008023
- 40Trim 5QF825206A
- 50TrimLeft5QF825101A
- 50TrimRight5QF825102B
- 50TrimLeft5QS825101A
- 50TrimRight5QS825102A
- 60Trim 83H825219
- 60Trim 83H825220
Vehicle fitment table6
Europe (4)
| Vehicle | Years | Pos. | Remark | PR |
|---|---|---|---|---|
| Kodiaq | 2024- | 30 | ||
| Tiguan 2.0 | 2023- | 30 | ||
| Tarraco FR | 2018-2024 | 30 | ||
| Tiguan 2.0 4Motion | 2016-2024 | 30 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Remark | PR |
|---|---|---|---|---|
| Tiguan | 2024- | 30 | 1 | PR |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Remark | PR |
|---|---|---|---|---|
| 578 platform | 30 |
Diagrams & fitment data powered by oemdiagrams.com
5QS825613 Volkswagen Heat Shield | Underbody is fitted on: Kodiaq 2024-; Tiguan 2.0 2023-; Tarraco FR 2018-2024; Tiguan 2.0 4Motion 2016-2024; Tiguan 2024-; 578 platform.
