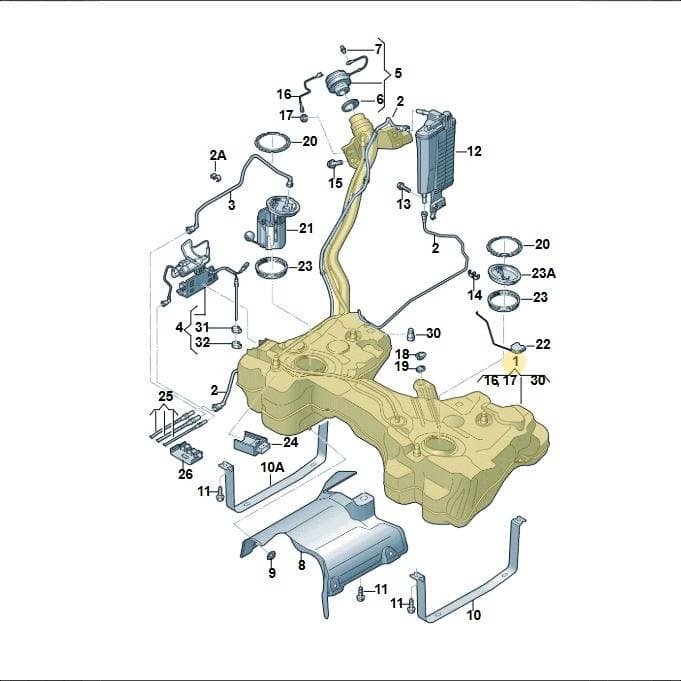

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank, part number 5WA201055H. This fuel tank is responsible for storing and supplying fuel to the engine. It is located in the fuel system assembly. Genuine OEM fuel tanks ensure precise fitment and material integrity for safe and reliable fuel storage. Dimensions: 1.27m x 1.2m x 0.74m, Weight: 10.101 kg.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 127 × 120 × 74 cm
- Shipping weight
- 10.1 kg
Parts diagram & fitment
4 vehiclesFuel Tank — locate 5WA201055H Volkswagen Fuel Tank | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(36)
- 1Container 5WA201055B
- 1Container 5WA201055C
- 1Fuel Tank 5WA201055K
- 1Container 5WA201055L
- 2Line 5Q0201160AP
- 2Line 5Q0201931AB
- 2Line 5Q0201931R
- 2AClip 5Q0201250K
- 3Fuel Line 5Q0201293AN
- 3Lead 5WA201293B
- 3Lead 5WA201293E
- 4Part 5Q0201607L
- 4Prot Plate 5Q0201974E
- 4Prot Plate 5WA201974
- 5Pop Rivet N90475801
- 5Pop Rivet N90994201
- 8Heat Sh 5WA201307B
- 9Heat Sh 5Q0201307R
- 9Part N91068501
- 10Strap 8S0201653
- 10AStrap 5WA201654
- 11Strap 5Q0201656G
- 11Bolt N91229601
- 12Container 5WA201801
- 13Bolt N10240003
- 14Clip 1H0201449C
- 14Clip 5Q0201250J
- 14Bolt N90693804
- 15Line 1J0201142A
- 16Bush 1J0201048C
- 17Bush 5Q0201693
- 18Part 1K0201375
- 18Rubber Bush 5Q0201840
- 30Insulation 8K0201274B
- 31Clamp N10203501
- 32Clamp N10056801
Diagrams & fitment data powered by oemdiagrams.com
5WA201055H Volkswagen Fuel Tank | Genuine OEM is fitted on: Golf 2.0 BlueMotion 2019-2024; Audi A3 Sportback 2019-2021; Leon style 2019-; Octavia 2019-2024.
