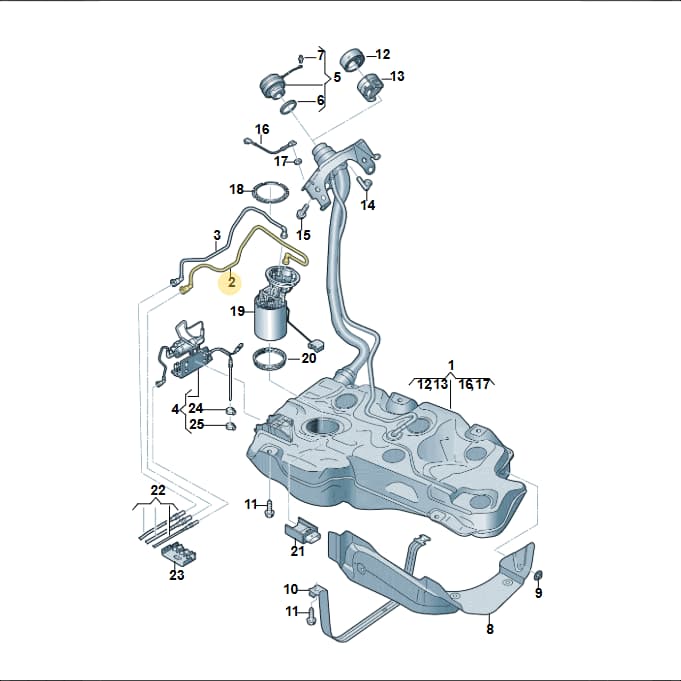

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Return Line, part number 5WA201294C. This essential line is responsible for returning unused or excess fuel from the engine's fuel rail back to the fuel tank, which helps maintain optimal fuel system pressure and prevents vapor lock. It is connected to the fuel tank and pump assembly. Weighing 0.0311 kg, this genuine OEM fuel line ensures correct routing, material compatibility with various fuel types, and resistance to pressure and temperature fluctuations, preventing leaks and ensuring efficient fuel system operation.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44.5 × 27 × 9.5 cm
- Shipping weight
- 0.03 kg
Parts diagram & fitment
9 vehiclesFuel Line — locate 5WA201294C Volkswagen Fuel Return Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(21)
- 1Container 5WA201060G
- 2Fuel Line 5Q0201294M
- 3Fuel Line 5Q0201293R
- 3Fuel Line 5WA201293G
- 4Part 5Q0201607AC
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550AN
- 5Part 7N0201550G
- 7Clip 1J0201250
- 10Strap 5WA201656
- 11Bolt N91229601
- 12Ring 4H0201115A
- 13Ins Piece 4H0201112A
- 14End Piece 895201890
- 15Bolt N90693804
- 19Deliv Unit 5Q0919050BA
- 20Sender 5Q0919673AQ
- 21Seal Ring 1K0919133D
- 22Part 1K0201375
- 23Control Unit 3Q0906121B
- 23Control Unit 3Q0906121C
- 23Control Unit 3Q0906121D
Diagrams & fitment data powered by oemdiagrams.com
5WA201294C Volkswagen Fuel Return Line | Genuine OEM is fitted on: Audi A3 Sportback 2019-2021; Audi Q2 2.0 TDI 2016-2018; Leon style 2019-; Formentor TSI CUPRA 2020-; Ateca Style 2016-; Octavia 2019-2024; Karoq 2017-2022; Golf 2.0 BlueMotion 2019-2024; T-Roc BlueMotion 2017-2024.
