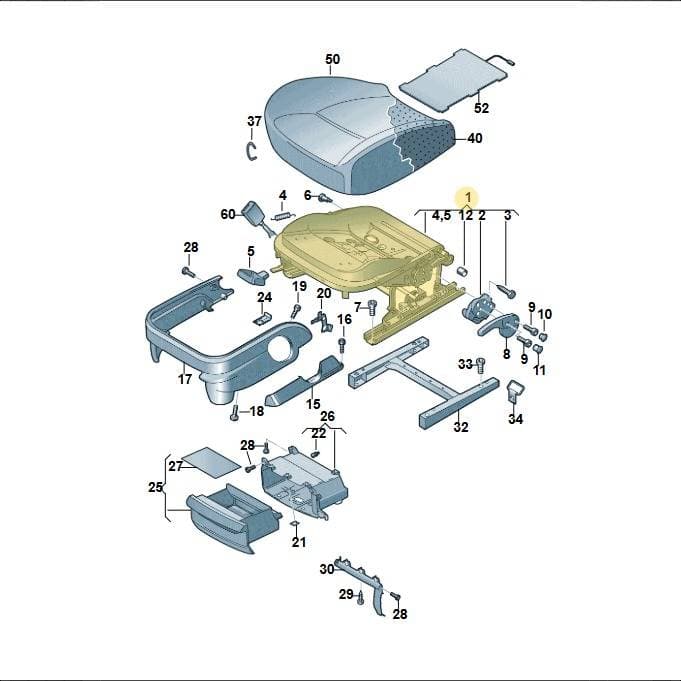

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seat Frame, part number 6Q4881106DL. This is the primary structural component of the seat assembly, providing a base for all other seat functions and components. It is located at the core of the seat structure. Constructed from robust metal for maximum durability and support. Genuine OEM seat frames are manufactured to exact specifications, ensuring proper alignment and structural integrity for safety and comfort.
Technical details
- Category
- Seats
- Customs (HS) code
- 94019080
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 62 × 53 × 26 cm
- Shipping weight
- 10.01 kg
Parts diagram & fitment
11 vehiclesSeat Frame With Height Adjustment — locate 6Q4881106DL Volkswagen Seat Frame | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(48)
- 1Seat FrameLeft6Q3881105CA
- 1Seat FrameRight6Q3881106CR
- 1Seat FrameRight6Q3881106CS
- 1Seat FrameLeft6Q4881105DA
- 1Seat FrameLeft6Q4881105DL
- 1Seat FrameRight6Q4881106DA
- 1Seat FrameLeft6R3881105G
- 1PartLeft6R3881105H
- 1PartRight6R3881106H
- 2Adjuster 6Q0881053B
- 3Bolt N90804901
- 4Spring 6Q0881245
- 5HandleLeft6Q0881253A
- 5HandleRight6Q0881254A
- 6Cable 8X0881271
- 7Screw N90892101
- 8HandleLeft6Q0882251A
- 8HandleRight6Q0882252A
- 9Bolt N90804903
- 10Part 6Q0881171
- 11Part 6Q0881171A
- 12Mounting 1J3881299A
- 13Part 8X0881063
- 14Bolt N90699002
- 14Bolt N90895901
- 15CoverLeft6Q0881087
- 15CoverRight6Q0881088
- 16Bolt N10671501
- 17TrimRight6Q0881318E
- 17TrimRight6Q0881318F
- 17TrimLeft6Q0881317E
- 17TrimLeft6Q0881317F
- 19Bolt N90999801
- 20RetainerLeft6Q0881547
- 20RetainerRight6Q0881548
- 21Screw 6Y0881333A
- 22BracketcdcLeft6Y0881627A
- 22BracketcdcRight6Y0881628A
- 23BracketcdcLeft6Y0881627B
- 23BracketcdcRight6Y0881628B
- 24Clip 6Q0881727B
- 25DrawerLeft6Q0882601
- 25DrawerLeft6Q0882601A
- 25DrawerRight6Q0882602
- 25DrawerRight6Q0882602A
- 26Frame 6Q0882599
- 26Frame 6Q0882600
- 27Insert 6Q0882611
Diagrams & fitment data powered by oemdiagrams.com
6Q4881106DL Volkswagen Seat Frame | Genuine OEM is fitted on: POLO 2001-2005; CADDY 2004-; POLO CLASSIC "ZA"03>05 2003-2005; POLO 2005-; POLO CLASSIC "ZA"05> 2005-; POLO CLASSIC (AUS) "CN"03>06 2003-2006; caddy panel van 2008-2010; Polo 2008-2009; Amarok twin cab 2009-2012; Caddy Maxi Kombi 2010-2015; CORDOBA/SE241 2002-2005.
