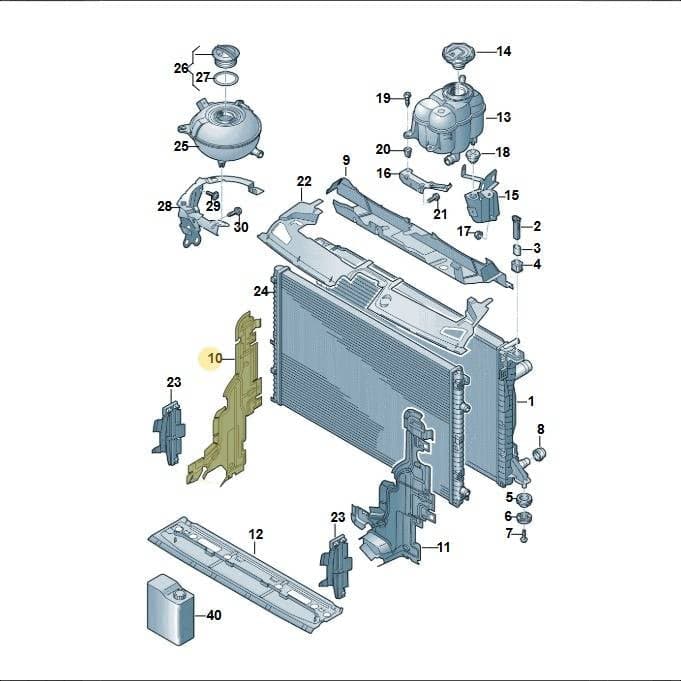

Number 10 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Air Guide, part number 760121284AQ. This air guide directs airflow to specific components within the engine bay for cooling or aerodynamic purposes. It is located at position 10 in the diagram. This part weighs 0.138 kg and measures 0.545 m in length, 0.3 m in width, and 0.11 m in height. Genuine OEM parts ensure exact fitment and factory-specified material properties for reliable operation.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 54.5 × 30 × 11 cm
- Shipping weight
- 0.14 kg
Parts diagram & fitment
1 vehicleAir Guide — locate 760121284AQ Volkswagen Air Guide | Engine Cooling in the official exploded view and explore the surrounding assembly.
Parts in this assembly(35)
- 1Radiator 8W0121251AB
- 2Part 4M0121095
- 3Sleeve 7P0121365
- 4Grommet 7P0121276
- 5Rubber Bush 4M0121275A
- 6Rubber Bush 4M0121268A
- 7Bolt 8K0805399B
- 8Part 4D0133335
- 9Air Guide 760121330J
- 9Air Guide 760121330AA
- 11Air Guide 760121283AQ
- 12Air Guide 760121763AB
- 13Container 4M0121403H
- 14Part 4M0121321Q
- 15Bracket 4M0121239H
- 16Retainer 4M0121214C
- 17Collar Nut N01508210
- 18Rubber Bush 4G0121585A
- 19Bolt N90974701
- 20Part 811807577C
- 21Screw N10714802
- 22Air Guide 760121330AS
- 22Air Guide 760121330AJ
- 23Air Guide 760121287
- 24Radiator 4M0145804T
- 25Container 5Q0121407P
- 26Cover 2Q0121321A
- 27Seal Ring 1H0121687A
- 28Retainer 4M0121412
- 30Bolt N10737101
- 40Coolant G12E050A2
- 40Coolant G12E050A8
- 40Coolant G12E050A9
- 40Coolant G12E100A8
- 40Coolant G12E100A9
