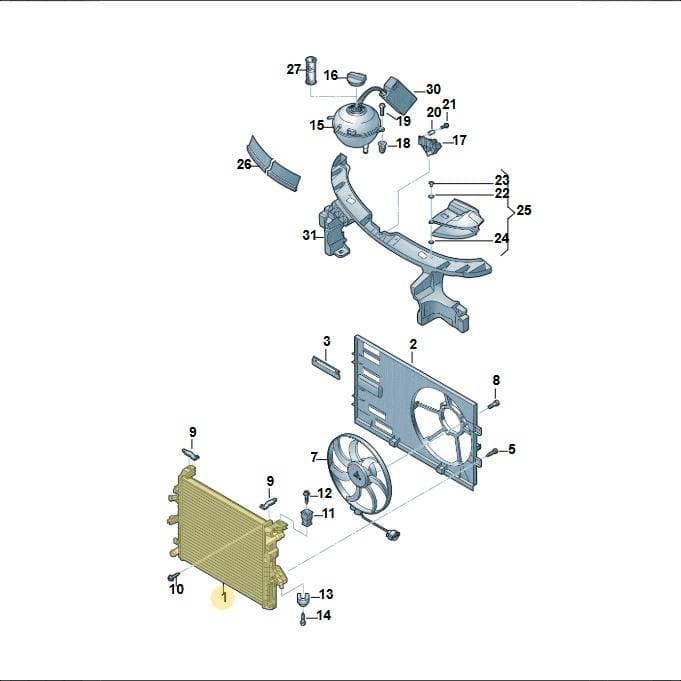

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Coolant Cooler, part number 7E0121253A. This part dissipates heat from the engine coolant, preventing overheating. It is located at position 1 in the diagram. The cooler has dimensions of 0.927m x 0.497m x 0.14m and weighs 5.951 kg. Genuine OEM coolant coolers are engineered for exact flow rates and heat exchange efficiency.
Technical details
- Category
- Engine Cooling
- Country of origin
- Poland
- Customs (HS) code
- 87089135
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 92.7 × 49.7 × 14 cm
- Shipping weight
- 5.95 kg
Parts diagram & fitment
6 vehiclesCooler For Coolant — locate 7E0121253A Volkswagen Coolant Cooler | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(26)
- 2Part 7E0121207C
- 2Fan Ring 7E0121207B
- 3Blind 7E0121223
- 5Bolt N90817003
- 8Bolt WHT004902
- 11Rubber Bush 7H0121276C
- 12Bolt N90808201
- 13Rubber Bush 7H0121275B
- 14Bolt N91056001
- 15Container 7H0121407C
- 16Cover 3B0121321
- 17Retainer 7E0121409A
- 18Spring Rivet 4D0863788
- 19Bolt N91179601
- 20Sleeve 1T0805179A
- 21Bolt N91079901
- 22Washer N90663301
- 23Lock 7H0915450
- 24Washer 6N0129355
- 25Cover 7E0119515A
- 26Seal 7E0121345
- 27Cartridge 4E0121176
- 30Coolant G013774M2
- 30Coolant G013A8JM8
- 30Coolant G013A8JM9
- 30Coolant G013A8JM1
Compatible / alternative parts(4)
Diagrams & fitment data powered by oemdiagrams.com
7E0121253A Volkswagen Coolant Cooler | Genuine OEM is fitted on: transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015.
