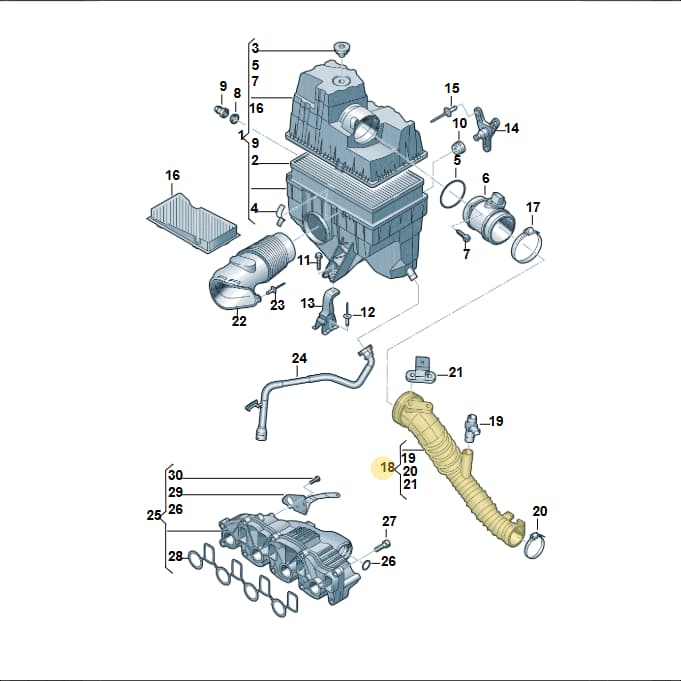

Number 18 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Intake Pipe, part number 7E0129615D. This component is a crucial corrugated hose responsible for channeling filtered air from the air filter housing to the engine's intake manifold. It ensures a sealed and efficient path for combustion air. Weighing approximately 0.90 kg and measuring 0.525m in length, it is designed for precise routing. Using genuine OEM intake pipes guarantees the correct material composition, flexibility, and resistance to engine bay temperatures and pressures, preventing air leaks and maintaining engine performance.
Technical details
- Category
- Intake & Turbo
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 52.5 × 15.5 × 10 cm
- Shipping weight
- 0.9 kg
Parts diagram & fitment
9 vehiclesIntake Manifold — locate 7E0129615D Audi Intake Pipe | Air Filter to Manifold in the official exploded view and explore the surrounding assembly.
Parts in this assembly(33)
- 1Air Filter 7E0129607A
- 1Air Filter 7E0129607
- 2Air Filter 7H0129620A
- 2Air Filter 7H0129620
- 3Indicator 701919301B
- 4Part 1H0129797
- 5Seal Ring 357129625A
- 6Air Meter 03L906461A
- 7Screw N10611201
- 8Bungs 7H0129757
- 9Grommet 8K0129669
- 10Buffer 036129689B
- 11Bolt N10482701
- 12Pop Rivet N91152701
- 13Bracket 7H0129671B
- 14Bracket 7H0129673C
- 16Insert 7H0129668
- 17Clamp N90656501
- 18Intake Man 7E0129615E
- 18Intake Man 7E0129615F
- 18Intake Man 7E0129615G
- 19Pipe 5N0906391
- 20Clamp N10518901
- 21Sensor 03C906051F
- 22Hose 7H0129578B
- 23Spring Rivet 8D0839829
- 24Hose 7H0129653
- 25Connection 03L129711P
- 26Seal Ring 03L131120A
- 27Screw N91139501
- 28Seal 03L129717E
- 29Bracket 03L129723F
- 30Screw N10721401
Diagrams & fitment data powered by oemdiagrams.com
7E0129615D Audi Intake Pipe | Air Filter to Manifold is fitted on: transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
