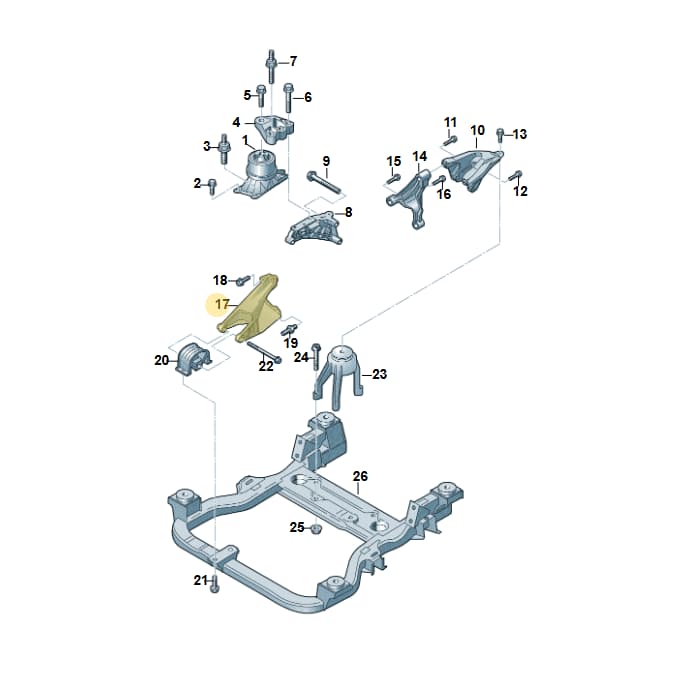

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Engine Front Support Bracket, part number 7E0199343B. This robust bracket is a critical component of the engine mounting system, designed to securely hold the engine in its correct position within the chassis. It is typically located at the front of the engine assembly. Weighing 1.173 kg and measuring approximately 250mm x 140mm x 175mm, genuine OEM mounts and brackets ensure the factory tolerance for vibration damping and structural integrity, preventing excessive engine movement and associated wear.
Technical details
- Category
- Mounts & Bushings
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 25 × 14 × 17.5 cm
- Shipping weight
- 1.17 kg
Parts diagram & fitment
6 vehiclesEngine Support — locate 7E0199343B Volkswagen Engine Front Support Bracket | Mount in the official exploded view and explore the surrounding assembly.
Superseded by 7E0199848 — the later replacement part.
Parts in this assembly(36)
- 1Support 7E0199343
- 2Bolt N10629602
- 2Bolt N10728502
- 3Bolt N91127301
- 4Eng Mounti 7E0199848
- 4Eng Mounti 7H0199848G
- 5Bolt N91136001
- 6Bolt N0195269
- 10Support 7E0199370
- 10Support 7E0199370L
- 12Bolt N10799201
- 12Bolt N10672702
- 12Bolt N10675603
- 13Bolt N91023602
- 15Eng Mounti 7E0199849F
- 15Eng Mounti 7E0199849
- 16Bolt N91028002
- 17Collar Nut N90798805
- 20Carrier 03L199207B
- 20Support 04L199207E
- 21Bolt N10666601
- 22Bolt N10655802
- 22Bolt N10765001
- 23Bolt N10680203
- 24Eng Mounti 7E0199256J
- 25Carrier 7E0199207
- 26Bolt N10661101
- 27Stud N91094102
- 27Bolt N10697801
- 28Bolt N91246201
- 30Gear Mount 7E0399151B
- 30Gear Mount 7H0399151G
- 31Bolt N10699401
- 34Weight 7E0199741C
- 35Part 7H0499333
- 36Bolt N90914502
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
7E0199343B Volkswagen Engine Front Support Bracket | Mount is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
