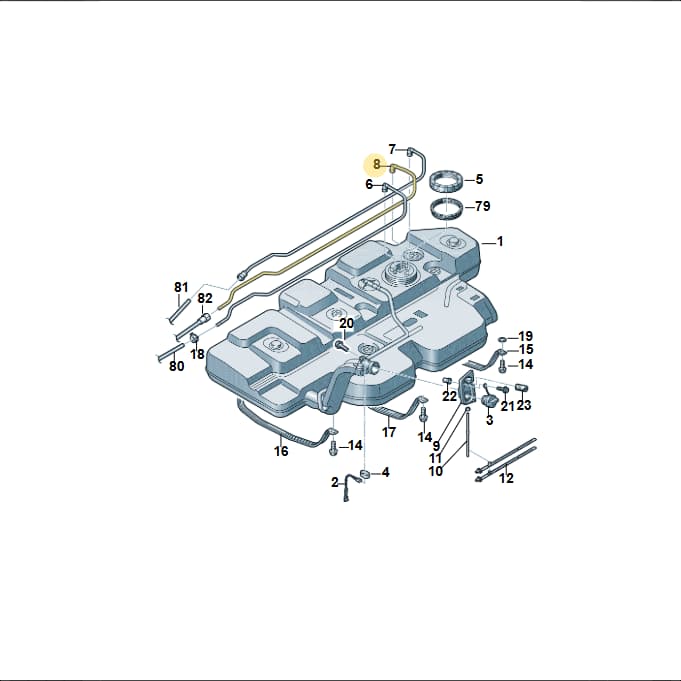

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Return Line, part number 7E0201360B. This critical component is responsible for returning excess fuel from the engine back to the fuel tank, which helps regulate fuel pressure and prevent engine flooding. It runs from the engine area to the fuel tank. Measuring approximately 1.045 meters in length and weighing 0.034 kg, this line is engineered for precise fitment. Opting for a genuine OEM fuel return line guarantees the correct material resistance and routing, crucial for fuel system safety and efficiency.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 104.5 × 12 × 11 cm
- Shipping weight
- 0.03 kg
Parts diagram & fitment
9 vehiclesFuel Line — locate 7E0201360B Volkswagen Fuel Return Line | Fuel System in the official exploded view and explore the surrounding assembly.
Parts in this assembly(19)
- 1Container 7H0201060L
- 1Container 7H0201060P
- 2Pipe 7H0201820
- 2Clamp N10231301
- 2Part 7H0201253D
- 3Line 7E0201142
- 4Ap&cap With Retaining Strap For Fuel Tank Cap 7H0201550D
- 5Part 321201375A
- 7Pipe 7E0201359B
- 10Pipe 7E0201355A
- 11Bolt N90999503
- 12Screw N90739704
- 13Part N10516801
- 14Ret Washer N91068401
- 14Bolt N90994403
- 15Strap 7H0201653C
- 16Strap 7H0201651C
- 17Strap 7H0201654C
- 90Clamp N10198101
Compatible / alternative parts(5)
Diagrams & fitment data powered by oemdiagrams.com
7E0201360B Volkswagen Fuel Return Line | Fuel System is fitted on: transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
