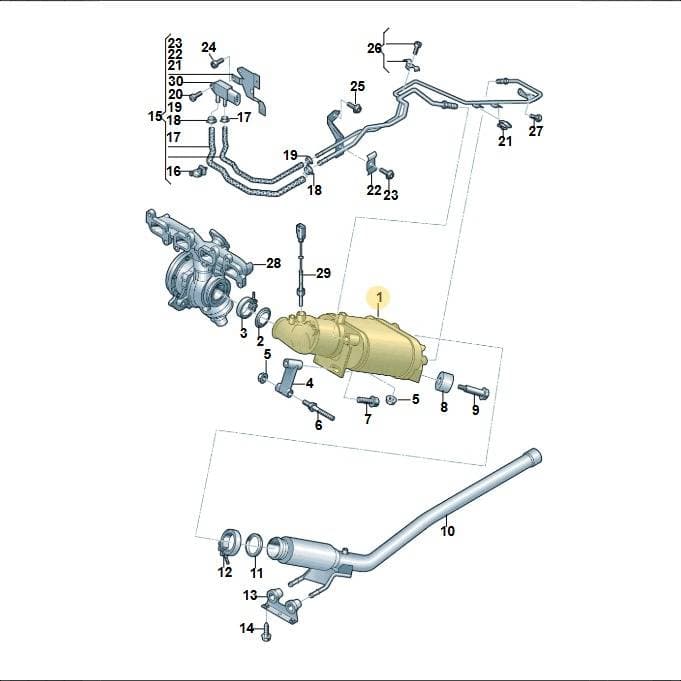

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Particulate Filter With Catalytic Converter, part number 7E0254700HX. This component filters soot particles from diesel exhaust and converts harmful gases into less harmful substances. It is positioned as part of the exhaust system. This part weighs 9.214 kg and has a length of 0.47 m. Genuine OEM particulate filters ensure precise filtration and catalytic conversion for compliance with emission standards.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 84213200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 47 × 29 × 20 cm
- Shipping weight
- 9.21 kg
Parts diagram & fitment
6 vehiclesParticulate Filter With Catalytic Conv — locate 7E0254700HX Volkswagen Particulate Filter With Catalytic Converter... in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1Catalyst 7E0254200EX
- 1Part 7E0254700JX
- 2Seal 1K0253115T
- 3Clamp 1K0253725
- 4Weight 7E0253653
- 5Bolt N91061101
- 6Support 7E0253027D
- 7Part N10261311
- 8Bolt N90942804
- 10Exh Pipe 7E0253095A
- 10AFilter 7E0254800FX
- 11Seal 7H0253115D
- 12Bracket 7H0253144
- 13Bolt N90809003
- 14Control Line 7E0131552E
- 14Control Line 7E0131552F
- 16Binder 7H0971838C
- 17Clamp 3C0131483
- 18Clamp 3C0131483A
- 19Clamp 4B0422379
- 20Bolt N10700201
- 21Bracket 7E0131649
- 22Bolt N90737105
- 23Bolt N01021226
- 24Screw N10544703
- 25Bracket 7H0253128C
- 26Bolt N10156009
- 27Bracket 7E0253128
- 31Bracket 7H0971939C
Diagrams & fitment data powered by oemdiagrams.com
7E0254700HX Volkswagen Particulate Filter With Catalytic Converter... is fitted on: transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
