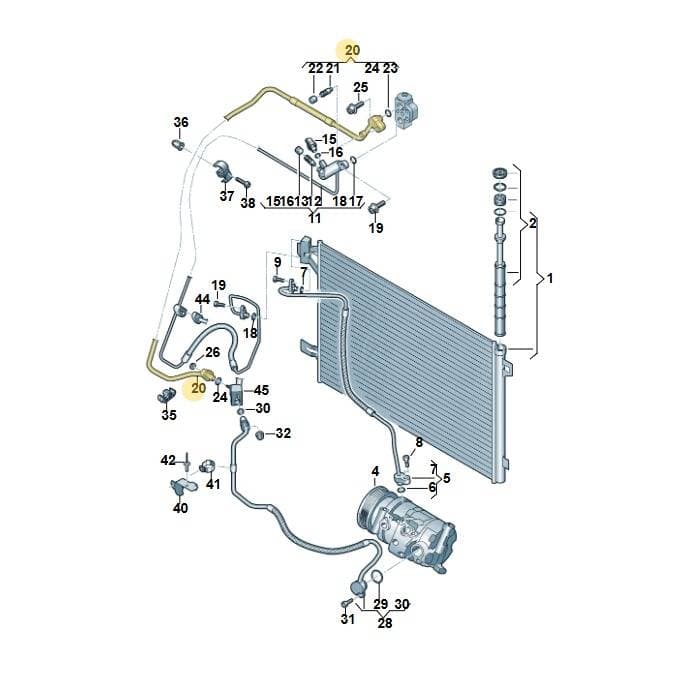

Number 20 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 7E1816743. This line transports refrigerant within the vehicle's air conditioning system. It is located at position 20 in the AC system diagram. The line has a length of 0.72 meters. Genuine OEM refrigerant lines ensure precise fitment and material integrity for safe and efficient operation of the air conditioning system.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 40091200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 72 × 52.5 × 11 cm
- Shipping weight
- 0.46 kg
Parts diagram & fitment
5 vehiclesRefrigerant Line — locate 7E1816743 Volkswagen Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(43)
- 1Condenser 7E0820411F
- 1Condenser 7E0820411G
- 2Insert 7E0298403
- 5Line 7LA816721A
- 6Seal Ring 4E0260749A
- 7Seal Ring 3D0260749C
- 8Screw N10414402
- 9Bolt N10347103
- 11LineLeft7L1816741C
- 11LineLeft7L1816741D
- 11LineLeft7L1820741C
- 11LineRight7L2816741A
- 11LineRight7L2820741A
- 11LineLeft7L1820741D
- 12Valve 8E0820855
- 13Part 5Q0816581
- 13Part 3C0820581
- 15Sender 5Q0959126A
- 16Seal Ring 7H0820896
- 18Seal Ring 4D0260749B
- 20LineLeft7E1816743A
- 20LineLeft7E1820743P
- 20LineLeft7E1820743Q
- 20LineRight7E2816743
- 20LineRight7E2816743A
- 20LineRight7E2820743J
- 20LineRight7E2820743K
- 20LineRight7E2820743L
- 20LineLeft7E1820743M
- 22Part 3C0820231
- 22Part 5Q0816231
- 23Seal Ring 4E0260749B
- 26Collar Nut N01508210
- 28Line 7LA816744A
- 28Line 7LA816744B
- 29Seal Ring 8E0260749C
- 35Clip 7E0820774A
- 36Part N90252104
- 37Clip 7E0820775
- 38Bolt N10704501
- 40Bracket 7E0820770
- 41Cable Tie 3W0971838
- 42Pop Rivet N90528204
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
7E1816743 Volkswagen Refrigerant Line | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; caravelle 2015-2019; California Camper 2015-2019.
