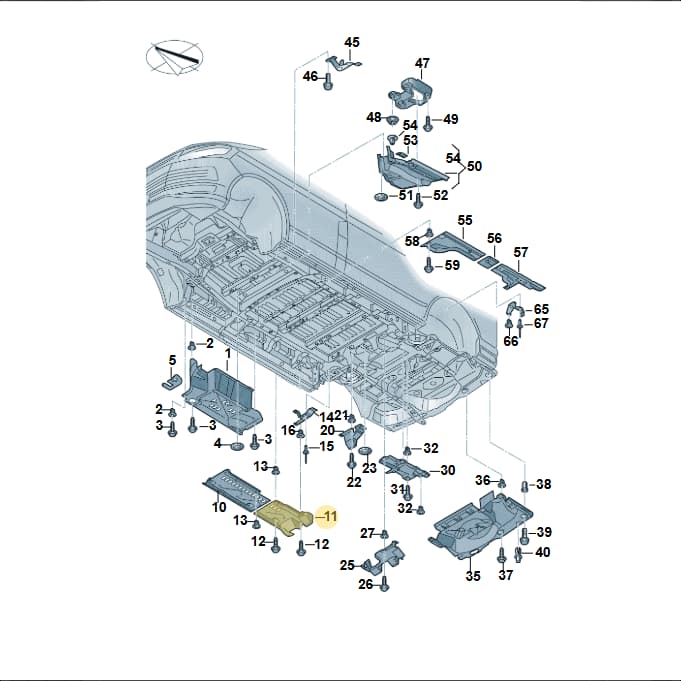

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Underbody Trim Panel, part number 7E3825312. This protective panel is designed to shield the vehicle's undercarriage from road debris, water, and other environmental elements, while also contributing to aerodynamic efficiency. It is located underneath the chassis, forming part of the vehicle's floor assembly. Weighing approximately 0.821 kg and measuring 0.93 meters in length, it is made from durable materials to withstand harsh conditions. Opting for a genuine OEM underbody trim panel ensures precise fitment, proper mounting points, and the intended level of protection and aerodynamic performance.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 93 × 40 × 9.5 cm
- Shipping weight
- 0.82 kg
Parts diagram & fitment
2 vehiclesUnderbody Trim — locate 7E3825312 Audi Underbody Trim Panel | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(31)
- 1Screw N91067002
- 2Washer N90335005
- 4Trim 7H0825194G
- 5Bolt N10009506
- 7Part 7H0825555A
- 8Part N90927801
- 9Spring Rivet N90558401
- 10Part 7E0825205A
- 10ABungs 7E0825961
- 11Trim 7E0825208A
- 11ABungs 7E0825962
- 14Trim 7E0825209
- 14ATrim 7E3825311
- 14ATrim 7E1825311
- 14BBungs 7E0825967
- 15Trim 7E0825210
- 15ATrim 7E1825312
- 18Trim 7E3825211
- 18Trim 7H3825211A
- 18Trim 7E0825211
- 18Trim 7H0825211C
- 24Trim 7E0825215
- 24Trim 7E0825215A
- 27Trim 7E0825217
- 37Bracket 7E0203507F
- 37Retaining 7E0819827C
- 38Bracket 7E0203510A
- 39Bolt N91193701
- 40Bracket 7H0804285C
- 41Bracket 7H0804286B
- 42Pop Rivet N90923602
Compatible / alternative parts(6)
Diagrams & fitment data powered by oemdiagrams.com
7E3825312 Audi Underbody Trim Panel | Genuine OEM is fitted on: transp. caravelle 2011-2015; caravelle 2015-2019.
