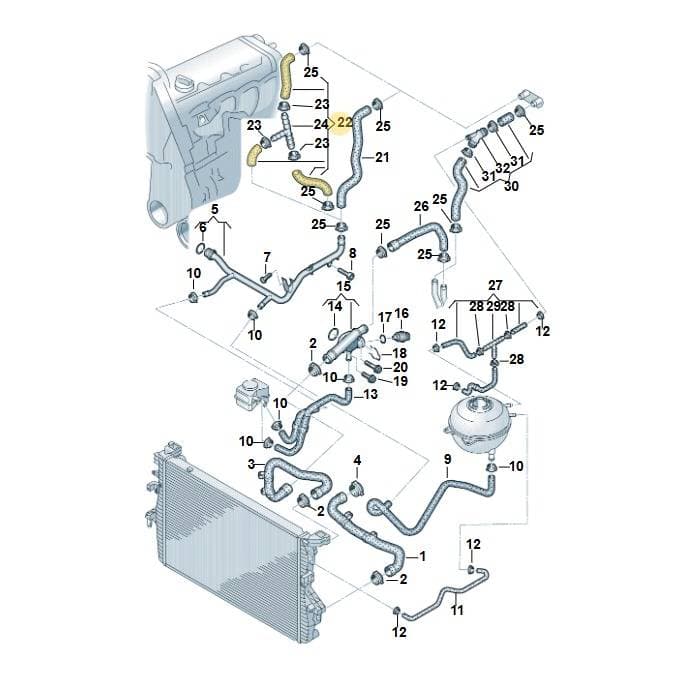

Number 22 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Protection Sleeve, part number 7H0122073C. This sleeve shields components from excessive heat generated by the engine. It is located in the engine cooling system. The sleeve has dimensions of 0.34m length, 0.11m width, and 0.11m height. Genuine OEM heat protection sleeves are designed with specific materials to withstand high temperatures and protect surrounding components effectively.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 34 × 11 × 11 cm
- Shipping weight
- 0.23 kg
Parts diagram & fitment
14 vehiclesCoolant Hose — locate 7H0122073C Volkswagen Heat Protection Sleeve | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 7H0122073G — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(26)
- 1Hose 7H0121051G
- 2Clamp N90687201
- 3Hose 7H0122101
- 5Water Pipe 038121065CE
- 6Seal Ring 06B121687
- 7Bolt N0102279
- 8Screw N0147214
- 9Hose 7H0121109F
- 10Clamp N90686901
- 11Hose 7H0121447D
- 12Clamp N90686701
- 13Hose 7H0121086A
- 14Seal Ring 037121688
- 15Flange 038121132C
- 16Sender 06A919501A
- 17Seal Ring N90316801
- 18Spring 032121142
- 19Bolt N90280904
- 20Bolt N10414501
- 21Hose 7H0121073F
- 23Clamp N90687001
- 24Tpiece 701819876
- 26Hose 7H0121157E
- 29Tpiece N90693001
- 30Hose 7H0122157H
- 32Junction 1J0121087D
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
7H0122073C Volkswagen Heat Protection Sleeve | Genuine OEM is fitted on: TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009.
