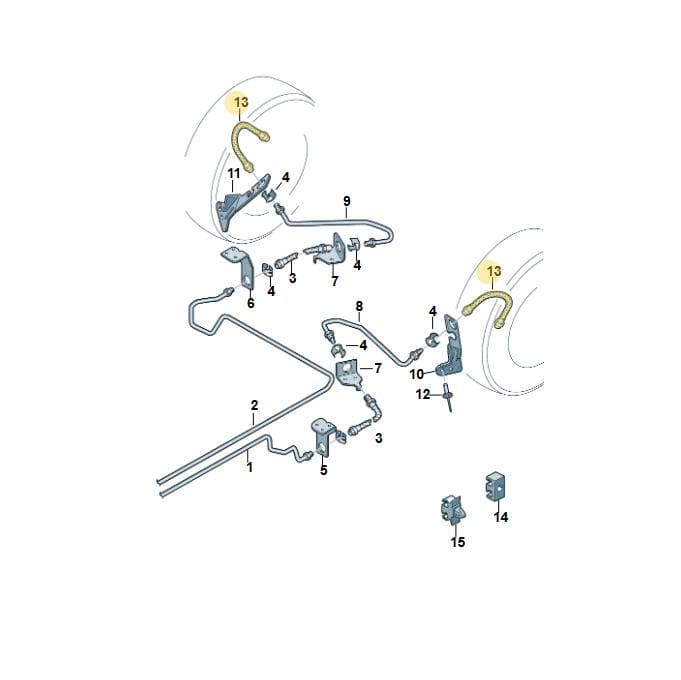

Number 13 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Brake Hose, part number 7H0611776C. This hose transmits hydraulic pressure from the master cylinder to the brake caliper or wheel cylinder. It is located at position 13 in the brake system assembly. Genuine OEM brake hoses are manufactured to precise specifications to ensure consistent hydraulic pressure and prevent premature failure.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 24.7 × 2.5 × 2.5 cm
- Shipping weight
- 0.07 kg
Parts diagram & fitment
16 vehiclesBrake Hose — locate 7H0611776C Volkswagen Brake Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(15)
- 1Brake Pipe 7LA614729
- 1Brake Pipe 7LA614729B
- 2Brake Pipe 7LA614730
- 2Brake Pipe 7LA614730A
- 3Brake Hose 7H0611775B
- 4Spring 4D0611715B
- 5Bracket 7H0804285C
- 6Bracket 7H0804286B
- 7Retainer 7H0612591A
- 8Brake Pipe 7E0611763A
- 9Brake Pipe 7E0611764A
- 10Retainer 7H0611799A
- 11Retainer 7H0611800A
- 12Pop Rivet N90788501
- 15Bracket 7H0611797
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
7H0611776C Volkswagen Brake Hose | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
