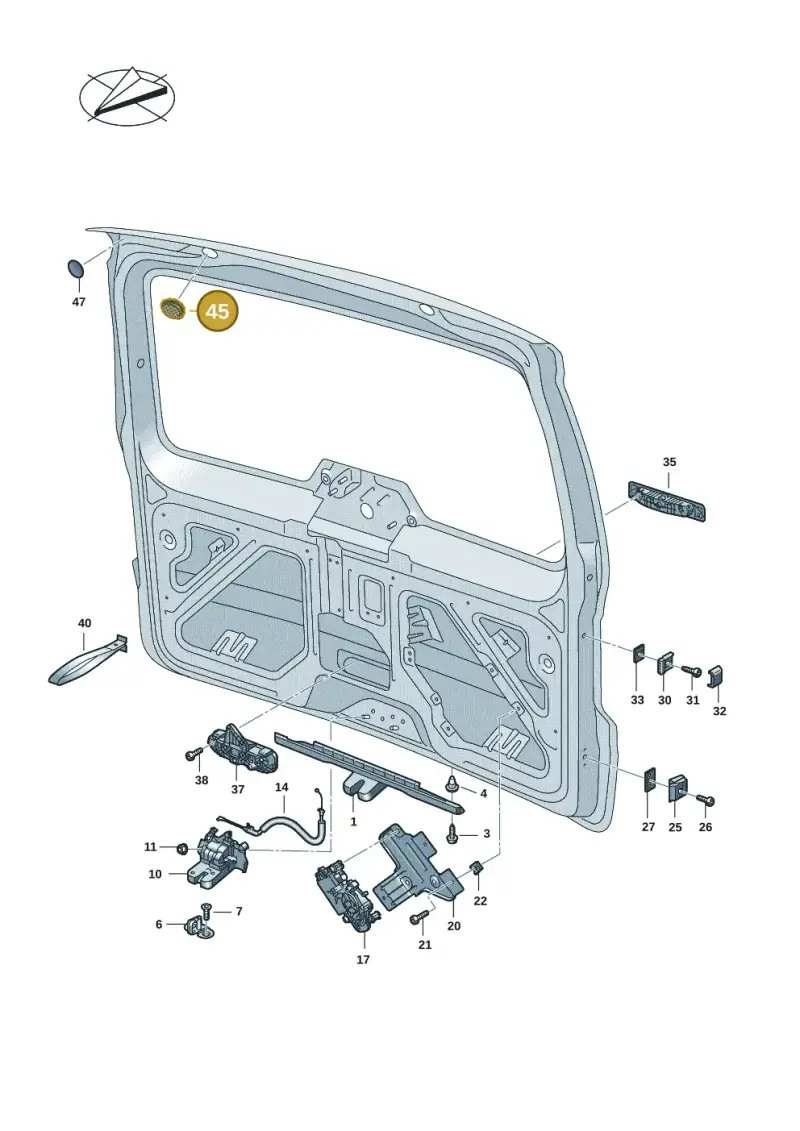

Number 45 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seal, part number 7H0711489A. This component functions as a grommet or plug, designed to seal an opening in a body panel, typically a door. Its purpose is to prevent the ingress of water, dust, and noise into the vehicle's interior. It is positioned within an aperture on a door panel. Weighing 0.0096 kg, this seal is made from a flexible material like rubber or soft plastic. Choosing a genuine OEM seal ensures exact dimensions for a tight fit and durable material properties for long-lasting protection.
Technical details
- Category
- Gaskets & Seals
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 5 × 4.1 × 1.2 cm
- Shipping weight
- 0.01 kg

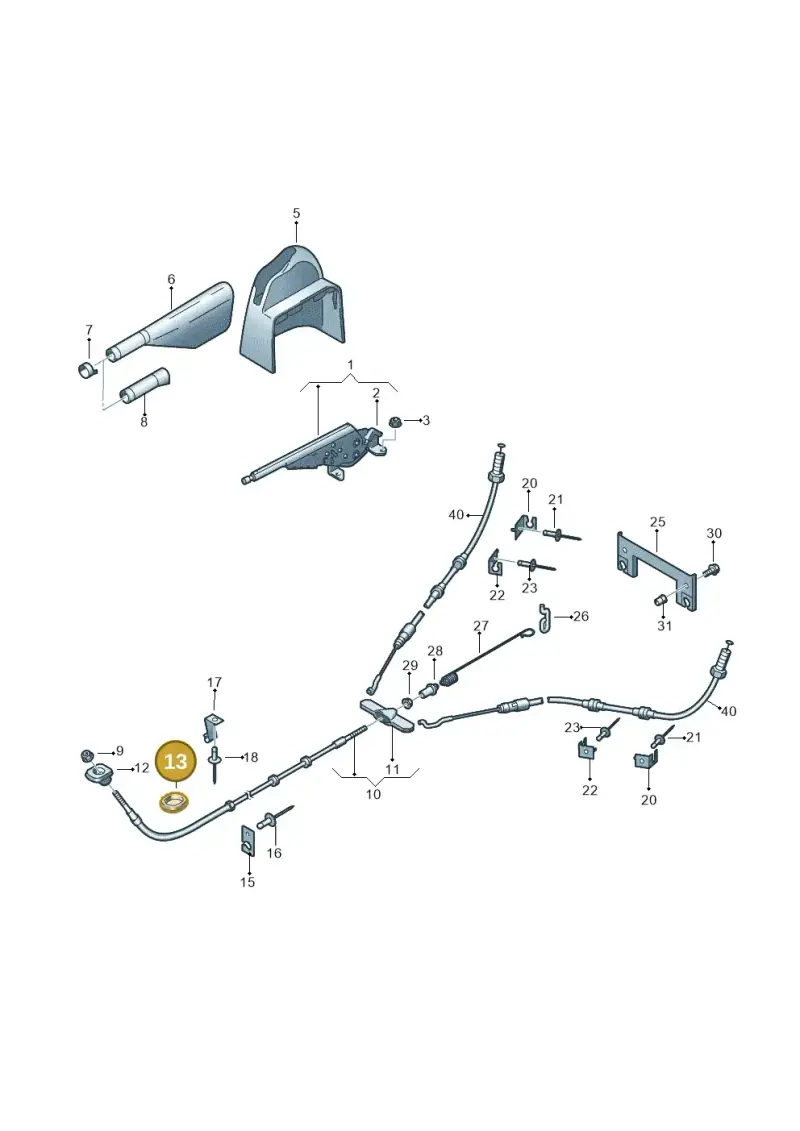

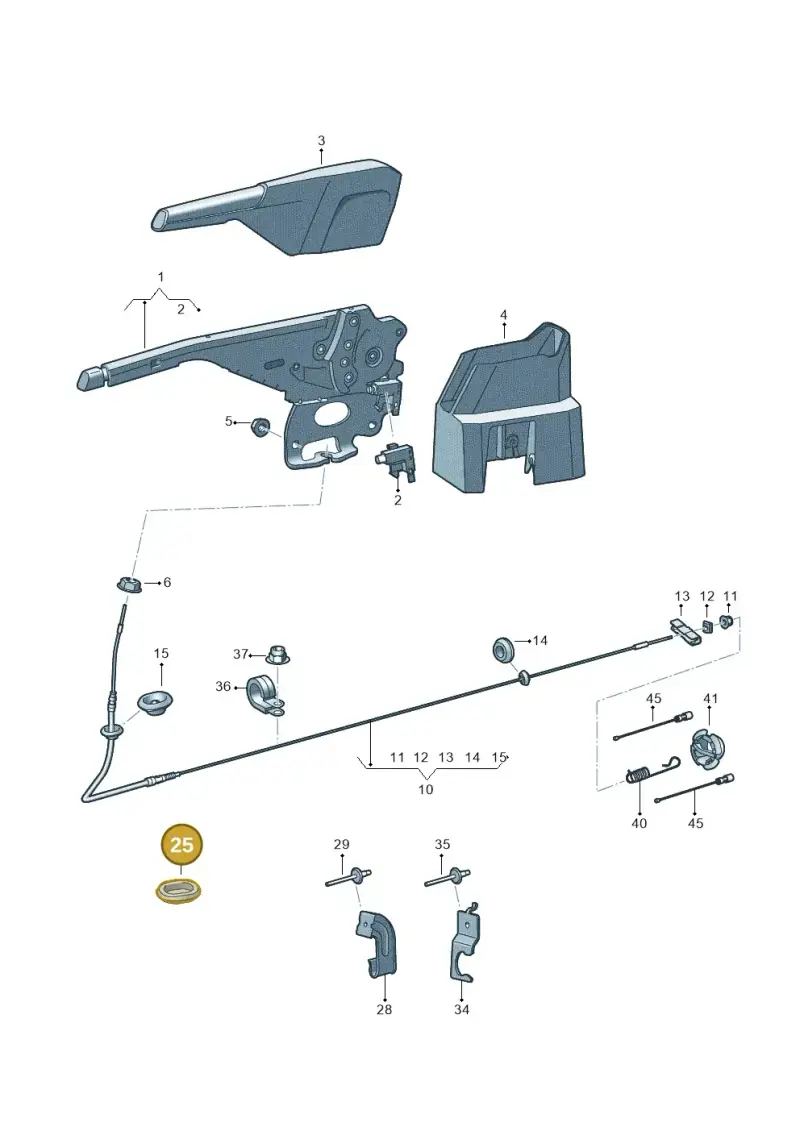

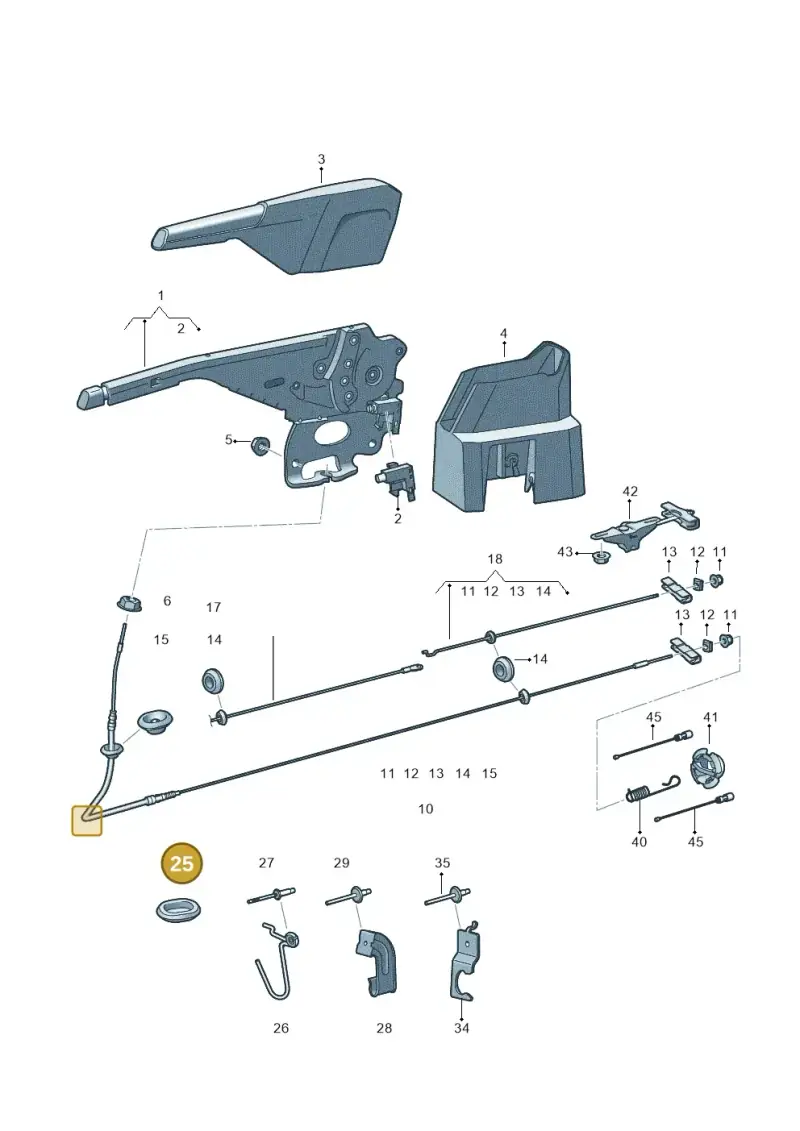

Parts diagram & fitment
30 vehiclesSeal — locate 7H0711489A Volkswagen Seal | Door Panel Grommet in the official exploded view and explore the surrounding assembly.
Parts in this assembly(36)
- 1Brake LevLeft7E1711301R
- 1Brake LevRight7E2711301Q
- 1Brake LevRight7E2711301R
- 1Brake LevLeft7E1711301Q
- 2Switch 1H0947561A
- 3Collar Nut N10609201
- 5TrimRight7H2711464A
- 5TrimLeft7E1711464A
- 6Handl 7E0711461
- 9Ut"hex Nut Self-locking With Washer Hex Nut N90286705
- 10Cable 7H0711476J
- 10CableLeft7H1711476G
- 10CableRight7H2711476F
- 10Cable 7H3711476G
- 10CableLeft7L1711476A
- 10CableRight7L2711476A
- 10Cable 7LA711476A
- 10Cable 7LA711476C
- 11Lever 7H0711481A
- 12Seal 7H0711489
- 15Bracket 7H3711403
- 15Bracket 7H3711495
- 16Pop Rivet N90437401
- 17BracketRight7H2711495B
- 17BracketLeft7H1711495A
- 20BracketLeft7E0711443A
- 20BracketRight7E0711444A
- 20Bracket 7H0711454
- 21Pop Rivet N90923602
- 22Bracket 7H0711453
- 25Abutment 7H0711804
- 26Bracket 7H0711249
- 27Spring 7H0711975D
- 28Bracket 701711367
- 30Bolt N10156009
- 31Part N90938701
Compatible / alternative parts(9)
Diagrams & fitment data powered by oemdiagrams.com
7H0711489A Volkswagen Seal | Door Panel Grommet is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; Caddy Maxi Kombi 2020-2024; TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; E-Crafter 35 2018-2024; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
