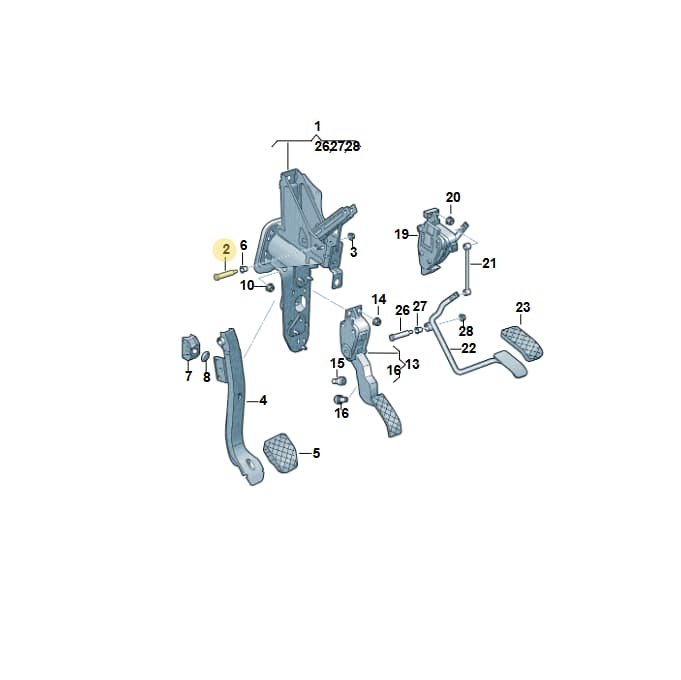

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Pedal Bracket Shaft, part number 7H0721429. This small but critical shaft acts as a pivot point and support for the pedal bracket, enabling the smooth and consistent movement of the pedal within its assembly. It is located within the pedal box mechanism. Weighing approximately 0.054 kg, this genuine OEM shaft ensures precise dimensions and material strength, which are vital for the long-term durability and reliable function of the pedal system.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 5.9 × 1.8 × 1.8 cm
- Shipping weight
- 0.05 kg
Parts diagram & fitment
19 vehiclesShaft — locate 7H0721429 Volkswagen Pedal Bracket Shaft | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1BracketRight7E2721115B
- 1BracketLeft7E1721115D
- 3Collar Nut N02300313
- 4PedalLeft7H1723143
- 4PedalRight7H2721143
- 4PedalRight7H2723143
- 4PedalLeft7H1721143
- 5Ap Cap For Foot Brake Pedal Cap For Foot Brake 4D1721173
- 5Ap Cap For Foot Brake Pedal Cap For Foot Brake 4D1723173
- 5Ap Cap For Foot Brake Pedal Cap For Foot Brake 8D1723173B
- 5Ap Cap For Foot Brake Pedal Cap For Foot Brake 8D1721173B
- 6Bush 7H0721153
- 7Support 1J0721169A
- 8Bearing 1H0721179
- 13Accel Ped 7E1723503C
- 13Accel Ped 7LA723503
- 13Accel Ped 7LA723503A
- 13Accel Ped 7E1721503C
- 13Accel Ped 7LA721503
- 13Accel Ped 7LA721503A
- 14Ut Hexagon Nut Self-locking Hexagon Nut N10737001
- 15Buffer 7H1721527
- 16Stop 8D0723522D
- 19Accel Ped 7H2723503E
- 19Accel Ped 7H2721503E
- 21Coupl Rod 7H2721077A
- 22Acc Pedal 7H2721507A
- 22Acc Pedal 7H2723507A
- 23Ap Cap For Accelerator Pedal Cap For 7H2721647A
Compatible / alternative parts(5)
Diagrams & fitment data powered by oemdiagrams.com
7H0721429 Volkswagen Pedal Bracket Shaft | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; TRANSPORTER OFFEN (7J) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
