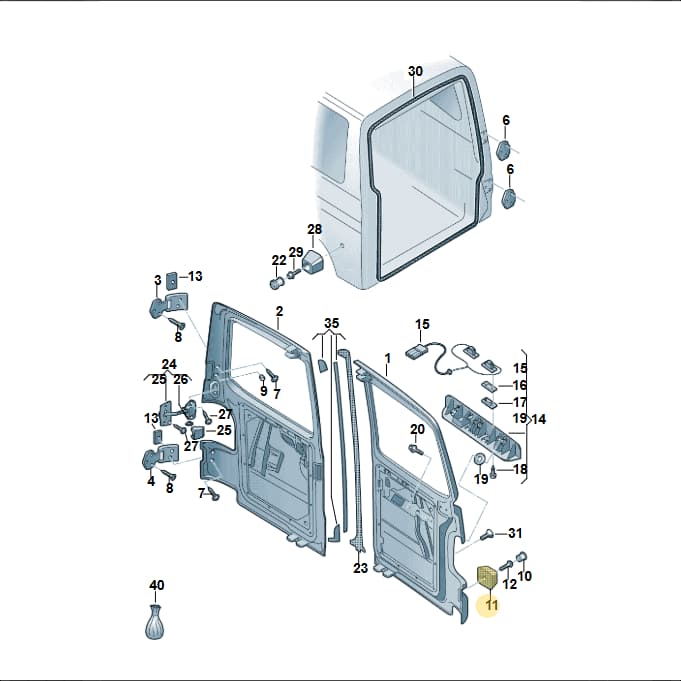

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Rear Wing Door Catch Stop, part number 7H0827475B. This component is designed to limit the opening range of the rear wing door, preventing overextension and potential damage. It is positioned on the rear door assembly. Weighing 0.275 kg and measuring approximately 90mm x 76mm x 70mm, this stop ensures the precise fit and reliable operation expected from genuine parts, maintaining factory door alignment and preventing premature wear.
Technical details
- Category
- Doors & Windows
- Customs (HS) code
- 85051190
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 9 × 7.6 × 7 cm
- Shipping weight
- 0.28 kg
Parts diagram & fitment
9 vehiclesStop — locate 7H0827475B Volkswagen Rear Wing Door Catch Stop | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(48)
- 1Wing Door 7H0827091AP
- 1Wing Door 7H0827091AQ
- 1Wing Door 7H3827091MD
- 1Wing Door 7H3827091ND
- 2Wing Door 7H0827092AP
- 2Wing Door 7H3827092MD
- 2Wing Door 7H3827092ND
- 2Part 7LA827092
- 2Wing Door 7H0827092AQ
- 2Part 7LA827092A
- 3HingeLeft7H0827151F
- 3HingeLeft7H0827151J
- 3HingeRight7H0827152J
- 3HingeRight7H0827152F
- 4HingeLeft7H0827153F
- 4HingeLeft7H0827153J
- 4HingeRight7H0827154F
- 4HingeRight7H0827154J
- 6Seal 701827157D
- 7Screw N90308607
- 8Screw N10666901
- 9Bungs N10265401
- 10Insert 7H0827445
- 11PartRight7H0827476B
- 12Bolt N91097001
- 13Buffer 7H0827489
- 14Grip 7E0827574G
- 14Grip 7LA827574D
- 14Part 7LA827574E
- 15Housing 7H0827740
- 16Gasket 7H0827634
- 18Screw N01396015
- 19Gask Set 7H0827599
- 20Screw N91007301
- 22Magnet 7H0827631
- 23Seal 7H3827709D
- 23Seal 7LA827709A
- 23Seal 7H0827709F
- 23Seal 7LA827709
- 24Door CatchLeft7H0827793G
- 24Door CatchLeft7H3827793E
- 24Door CatchRight7H3827794E
- 24Door CatchRight7H0827794G
- 25Actuator 7H0827701A
- 27Bolt N91007002
- 28StopLeft7H0827797B
- 28StopRight7H0827798B
- 29Screw N90898007
Compatible / alternative parts(4)
Diagrams & fitment data powered by oemdiagrams.com
7H0827475B Volkswagen Rear Wing Door Catch Stop | Genuine OEM is fitted on: caravelle 2019-2024; TRANSPORTER 2003-2005; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; transp. caravelle 2008-2009; transp. caravelle 2009-2011; transp. caravelle 2011-2015; caravelle 2015-2019.
