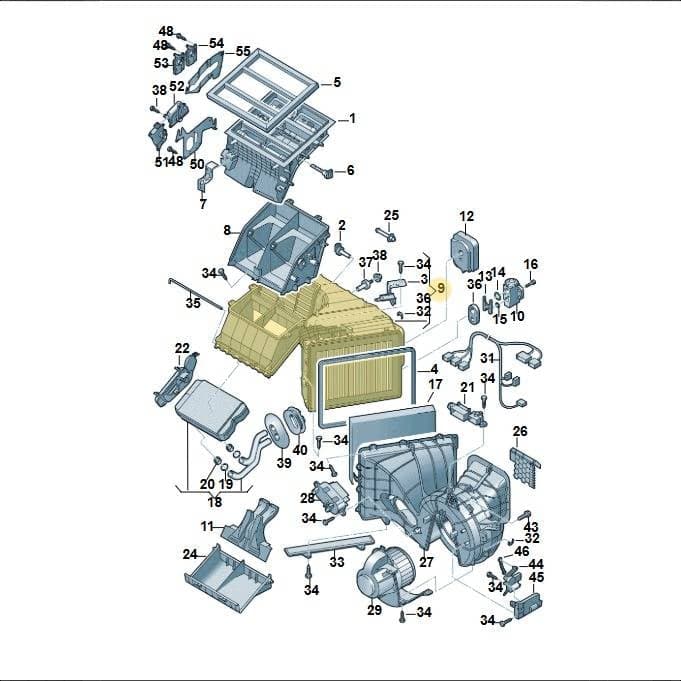

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Evaporator Housing, part number 7H1820087C. This housing contains the evaporator core, which cools the air passing through the vehicle's climate control system. It is part of the HVAC assembly. The housing is constructed from durable plastic and measures 0.53m x 0.5m x 0.39m. Genuine OEM parts ensure precise fit and system integrity for reliable refrigerant containment.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189910
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 53 × 50 × 39 cm
- Shipping weight
- 4.78 kg
Parts diagram & fitment
20 vehiclesHousing With Evaporator — locate 7H1820087C Volkswagen Evaporator Housing | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(48)
- 1Housing 7L0819351H
- 1Housing 7L0819351J
- 1Housing 7H1819351C
- 3BracketRight7H2819147
- 3BracketLeft7H1819147A
- 4Sealg Cord 7H0819211
- 5Seal 7H0819064B
- 6Temperature Sensor 4B0820539
- 7BracketRight7H2819259
- 7BracketLeft7H1819259
- 8Part 7L0819352B
- 8Part 7H1819352
- 9HousingRight7H2820087B
- 11Air Guide 7H0898409
- 12SealLeft7H1820139A
- 12SealRight7H2820139A
- 13Bracket 7H0820660
- 14Seal Ring 8E0260749
- 15Seal Ring 8E0260749A
- 16Screw N0199091
- 17Od Filter 7E0819631
- 17Filter 7H0819631
- 17Dust Filt 7H0819631A
- 17Part JZW819653E
- 18Heat ExchRight7H2819031
- 18Heat ExchLeft7H1819031
- 19Seal Ring N90973201
- 20Clamp Spring 7H0819139
- 21Part 7L0820536
- 22CoverRight7H2815159
- 22CoverLeft7H1815159
- 23Cover 7H0815713
- 24Cover 7H1819422A
- 25Drain Tube 7H2820752
- 25Drain Tube 7H0820119
- 26GrilleRight7H2819407
- 26GrilleLeft7H1819407
- 27PartRight7H2815153A
- 27Part 7H5815153A
- 27Part 7H6815153
- 27PartLeft7H1815153A
- 28Regulator 7L0907521B
- 28Resistance 7E0959263
- 29BlowerRight7H2820021B
- 29Blower 7H5820021B
- 29Blower 7H6820021
- 29BlowerLeft7H1820021B
- 32Clip 7H0819059
Compatible / alternative parts(7)
Diagrams & fitment data powered by oemdiagrams.com
7H1820087C Volkswagen Evaporator Housing | Genuine OEM is fitted on: TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015.
