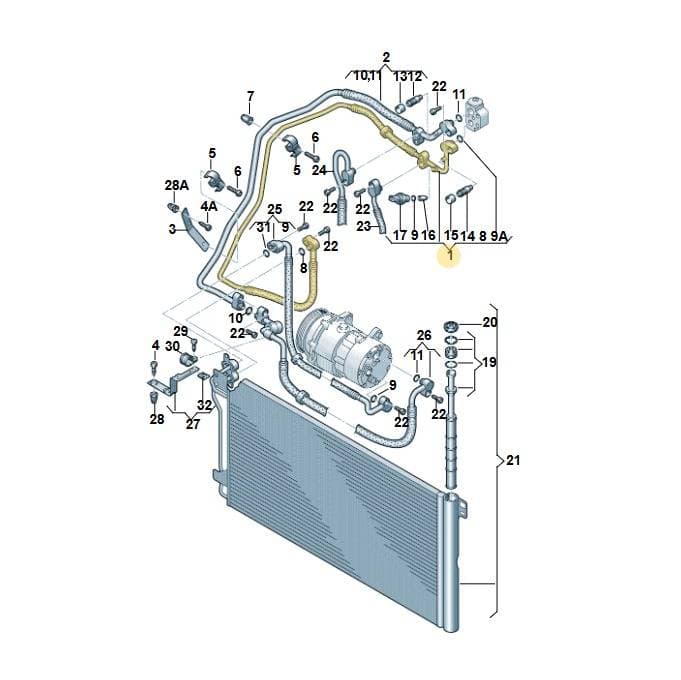

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Pipe, part number 7H1820741T. This pipe transports refrigerant between different components of the vehicle's air conditioning system. It is part of the air conditioning system. The pipe measures 0.59m x 0.58m x 0.125m. Genuine OEM pipes are manufactured to precise specifications to ensure leak-free operation and optimal refrigerant flow.
Technical details
- Category
- Heating & A/C
- Country of origin
- Germany
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 59 × 58 × 12.5 cm
- Shipping weight
- 0.37 kg
Parts diagram & fitment
7 vehiclesRefrigerant Pipe — locate 7H1820741T Volkswagen Refrigerant Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(36)
- 1Pipe 7H1820741S
- 2Hose 7H1820743P
- 2Part 7H1820743Q
- 3Bracket 7H0820791B
- 4APop Rivet N90437401
- 5Clip 7H0820775A
- 6Bolt N10704501
- 7Part N90252104
- 8Seal Ring 3D0260749C
- 9Seal Ring 8E0260749
- 10Seal Ring 4E0260749B
- 11Seal Ring 7H0820898
- 12Valve 8E0820855
- 12Valve 357820795H
- 13Part 3C0820231
- 13Part 357820809B
- 14Valve 357820795J
- 15Part 3C0820581
- 15Part 357820809C
- 16Part 7D0820855
- 17Sensor 1K0959126A
- 19Drier 7L0898191A
- 20Part 7L0820231A
- 21Condenser 7H0820411E
- 22Screw N10414402
- 25Hose 7H0820721R
- 25Hose 7H0820721AC
- 26Pipe 7H0820744P
- 26Pipe 7H0820744Q
- 27Bracket 7H0820769B
- 27Bracket 7H0820770B
- 28Part 811807577C
- 29Screw N10657201
- 30Clamp N0206474
- 31Seal Ring 4E0260749A
- 32Part N90755702
Diagrams & fitment data powered by oemdiagrams.com
7H1820741T Volkswagen Refrigerant Pipe | Genuine OEM is fitted on: TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; transp. dropside 2009-2011.
