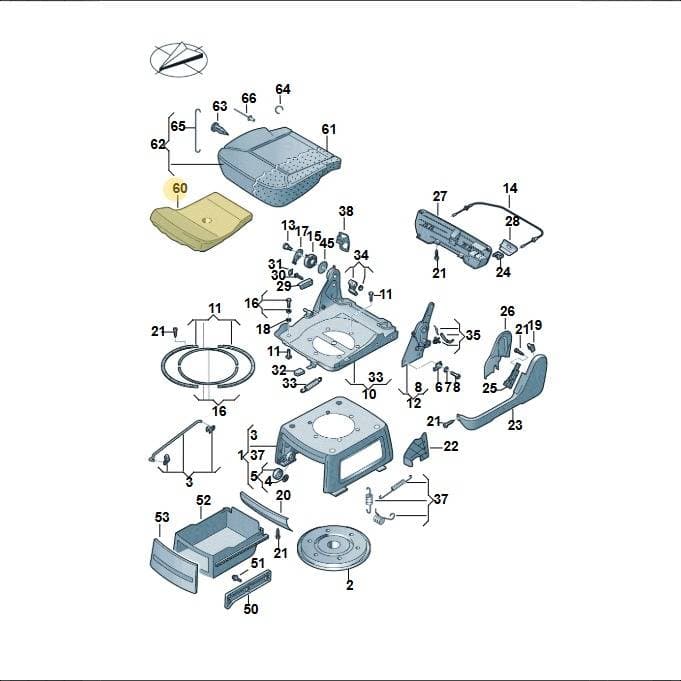

Number 60 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seat Padded Surface, part number 7H5883205A. This part provides a comfortable and cushioned surface for seat occupants. It is located at position 60 in the seat assembly. The part weighs 0.251 kg. Genuine OEM seat components ensure exact fit and factory quality for occupant comfort and safety.
Technical details
- Category
- Seats
- Customs (HS) code
- 94019990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 46 × 43 × 10 cm
- Shipping weight
- 0.25 kg
Parts diagram & fitment
17 vehiclesPadded Surface — locate 7H5883205A Volkswagen Seat Padded Surface | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 7E5883677 — the later replacement part.
Parts in this assembly(40)
- 1Seat Box 7E5885670B
- 3Part 7H5885289B
- 4Ring N0124161
- 5Roller 7E5883277
- 8Screw N91003802
- 10Seat Frame 7E5885139A
- 12Hinge 7E5883489
- 13Screw N91094901
- 14Cable 7H5883257B
- 15Spring 7H5883349A
- 16Repair Kit 7H5885908B
- 19Clip 357867646
- 20Trim 7H5883319E
- 21Screw N10415001
- 22Trim 7H5883320B
- 22Trim 7H5883320A
- 23TrimRight7H5883318J
- 23TrimLeft7H5883317F
- 24Clip 7H5883883
- 25S Belt Gui 7H5883707A
- 26Cover 7H5883937B
- 27Trim 7E5883320B
- 27Trim 7E5883320
- 28Handle 7H5883251
- 29Handle 7H5883252B
- 30Bolt N10586401
- 31Cover 7H5883499C
- 34Lever 7H5883593
- 35Parts Set 7H5883385A
- 37Springs 7H5883169
- 38Part 7H5886197
- 45Bush 7H5885167A
- 50RailRight7H5883212A
- 50RailLeft7H5883211A
- 51Bolt N10632004
- 52Drawer 7H5883655
- 53Panel 7H5883617
- 63Clip 171881449A
- 64Clip N0152612
- 66Pop Rivet N91153701
Compatible / alternative parts(12)
- Part 7E5883677A
- Part 7E5883677B
- Part 7H5883655
- Part 7H5883677
- Part 7H5883677B
- Part 7E5883375A
- Part 7E5883375B
- Part 7E5883375D
- Part 7E5883489
- Part 7E5883681
- Part 7E5883681B
- PartLeft7H5883317F
Diagrams & fitment data powered by oemdiagrams.com
7H5883205A Volkswagen Seat Padded Surface | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; California Camper 2011-2015; caravelle 2015-2019; California Camper 2015-2019.
