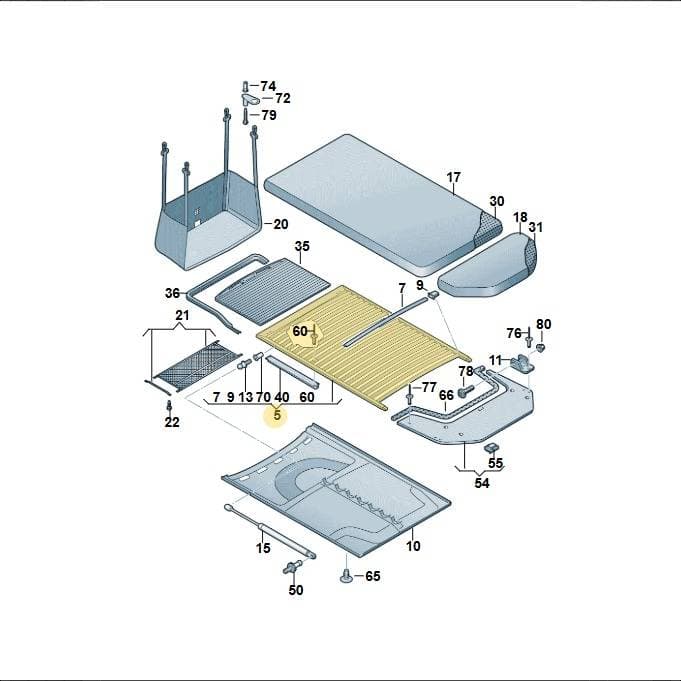

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Slatted Frame, part number 7H7067065A. This slatted frame provides a supportive base for a mattress or sleeping surface within a vehicle. It is located at position 5 in the diagram. Genuine OEM slatted frames are constructed for durability and precise fit to support sleeping surfaces.
Technical details
- Category
- Other
- Customs (HS) code
- 94041000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 170 × 120 × 4 cm
- Shipping weight
- 19.56 kg
Parts diagram & fitment
7 vehiclesSlatted Frame — locate 7H7067065A Volkswagen Slatted Frame | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 7Strip 7H7067073
- 9Mounting 7H7067075
- 10Trim 7H7067076A
- 11Hinge 7H7067077
- 13Part 7H7067079
- 15G Fill Str 7H7067081
- 17Cover 7H7067085B
- 18Cover 7H7067089A
- 20Safe Net 7H7067091
- 21Meshpocket 7H7067560
- 22Screw N91128201
- 30Upholstery 7H7067161
- 31Upholstery 7H7067162
- 35Blind 7H7067187A
- 40Rail 7H7067313
- 50Stud 2K0827439
- 54Bed Base 7H7861045B
- 55Support 7H7861117
- 60Pop Rivet N90576301
- 65Bungs N90201601
- 66Bump Strip 7H7861561
- 70Part N90631202
- 72Eyelet 7H7067100
- 74Part N10172402
- 76Pop Rivet N90765701
- 77Pop Rivet N90776403
- 78Bolt N91055301
- 79Bolt N10670501
- 80Washer N91039901
Diagrams & fitment data powered by oemdiagrams.com
7H7067065A Volkswagen Slatted Frame | Genuine OEM is fitted on: CAMPMOBIL-T5 08 2007-; California Camper 2008-2009; transp. caravelle 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; California Camper 2011-2015; California Camper 2015-2019.
