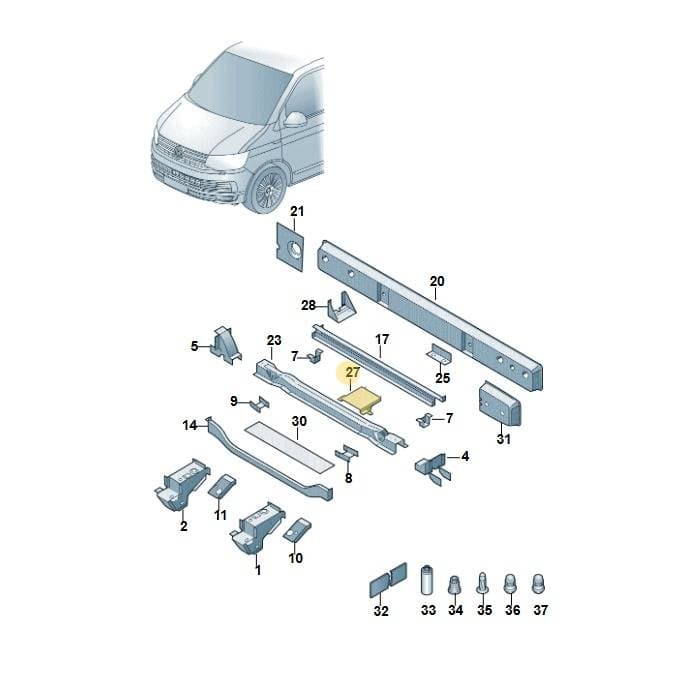

Number 27 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Spare Wheel Bracket, part number 7J0804717B. This bracket mounts and secures the spare wheel to the vehicle's chassis or body. Located at position 27 on the diagram, it measures 0.12 meters in length, 0.12 meters in width, and 0.05 meters in height, weighing 0.36 kg. Genuine OEM ensures secure mounting and correct fitment for the spare wheel assembly, maintaining structural integrity.
Technical details
- Category
- Body Interior
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 12 × 12 × 5 cm
- Shipping weight
- 0.36 kg
Parts diagram & fitment
9 vehiclesBracket For Spare Wheel — locate 7J0804717B Volkswagen Spare Wheel Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1Mounting 7H0801085
- 2Mounting 7H0801086
- 4Plate 7J0801453
- 5Plate 7J0801454
- 7Support 7J0801896
- 8Reinforce 7J0802163
- 9Reinforce 7J0802164
- 10Reinforce 7H0803119
- 11Reinforce 7H0803120
- 14Carrier 7J0803291B
- 17Cross Member 7J0803533
- 20Member 7F0803703B
- 21Reinforce 7F0803725
- 23Cross Member 7J0804133A
- 25Bracket 7F0804473
- 25Bracket 7J0804473A
- 28Part 7J0253193B
- 30Plate 7J0804765
- 31Cover 7F0825271
- 32Panel 000800981A
- 32Panel 000800981B
- 32Panel 000800981C
- 32Panel 000800981
- 33Inox Spray D007600A1
- 34Screw N90652602
- 34Thread Pin N90965502
- 35Bolt N90889502
- 36Screw WHT000869
- 37Part WHT000868
