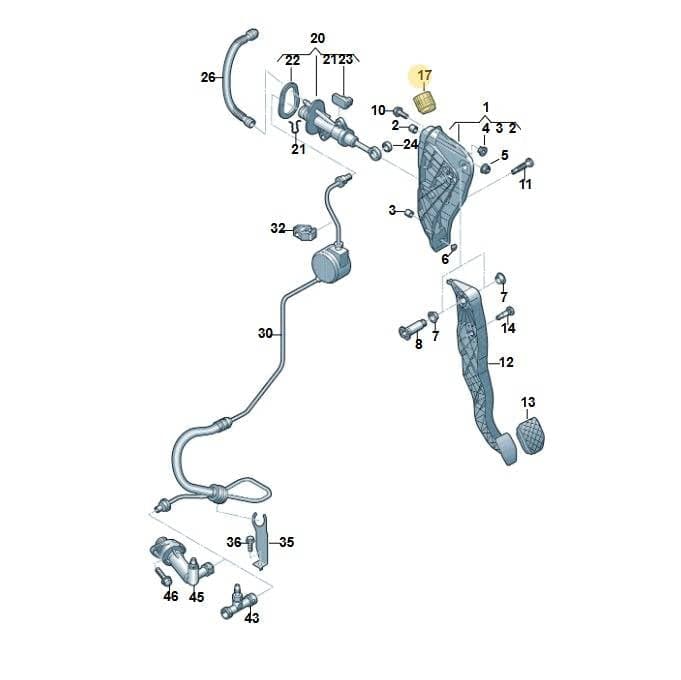

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Over-Centre Spring, part number 7LA721403. This spring provides a locking action or tension that engages or disengages a mechanism in the pedal assembly. It is located at position 17 in the diagram. The spring ensures proper operation of the connected mechanism. Genuine OEM parts are manufactured to precise tolerances, ensuring proper fit and function within the vehicle's systems.
Technical details
- Category
- Engine
- Customs (HS) code
- 73202081
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6.5 × 4.8 × 5.3 cm
- Shipping weight
- 0.08 kg
Parts diagram & fitment
3 vehiclesOver-centre Spring — locate 7LA721403 Volkswagen Over-Centre Spring | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(28)
- 1Bracket 7LA721373
- 5Ut Hexagon Nut Self-locking Hexagon Nut N02300311
- 6Buffer 2N0721381
- 7Bush 2N0721153
- 8Part 7LA721123
- 10Bolt N90471802
- 11Cotter Pin 5QM721845
- 12Foot PedalRight7L2721315
- 12Foot PedalLeft7L1721315
- 13Part 8E0721173
- 14Stud 5QM721152
- 20Master Cylinder 5Q0721388H
- 21Clip 5Q0721095
- 22Seal 5Q0721741
- 23Hallsensor 5Q0927810
- 24Bush 5Q0721543
- 26Hose 3Q0721453
- 30LineLeft7L1721462
- 30LineRight7L2721462
- 30LineRight7L2721478A
- 30LineLeft7L1721478C
- 32Clip 8K0721350
- 35Bracket 7H0721491A
- 36Bolt N10051507
- 43Breather 1K0721468D
- 45Slavecylin 7E0721261A
- 45Slavecylin 7E0721261B
- 46Bolt N10240003
Diagrams & fitment data powered by oemdiagrams.com
7LA721403 Volkswagen Over-Centre Spring | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024.
