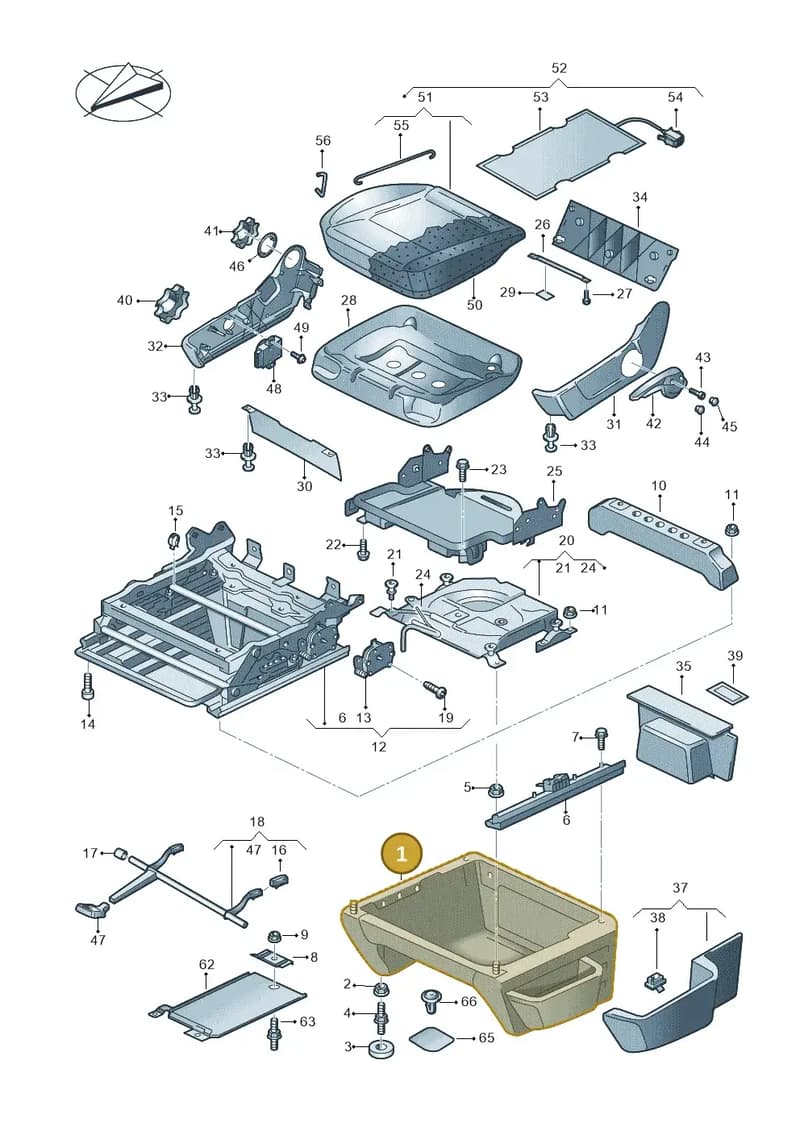

Number 1 marks the part’s position in the exploded view (Volkswagen Caravelle (2019-2024)).
Product overview
Genuine OEM Volkswagen Seat Frame, part number 7LA881677B01A. Colour/finish: Black (01A); variant of base part 7LA881677B. Fits Volkswagen Caravelle (2019-2024), Volkswagen Transporter Single Cab (2019-2024). Shown as position 1 in the body diagram 861881000.
Catalogue entry: BLACK; SEAT FRAME rhd.
Fitted with: 7E1881677AJ SEAT FRAME, 7E1881677AJ01A BLACK, 7E1881677AH SEAT FRAME, 7E1881677AH01A BLACK, 7E1881677AK SEAT FRAME, 7E1881677AK01A BLACK, 7L1881677A SEAT FRAME, 7L1881677A01A BLACK, 7L1881677B SEAT FRAME, 7L1881677B01A BLACK, 7L1881677M SEAT FRAME, 7L1881677M01A BLACK.
Technical details
- Base part number
- 7LA881677B
- Category
- Seats
- Colour / finish
- Black (01A)
- Diagram sheet
- Volkswagen 861881000, position 1
- ETKA group
- 8 / 81 (881)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 5N3
- 5N6
- 5N7
- A8B
- A9K
- L0R
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesSeat Frame (Black) — locate 7LA881677B01A Volkswagen Seat Frame (Black 01A) in the official exploded view and explore the surrounding assembly.
You are ordering the Black version — 7LA881677B01A. The diagram shows its base part number 7LA881677B.
Parts in this assembly48
- 1Seat FrameLeft7L1881677A
- 1Seat FrameLeft7L1881677B
- 1Seat FrameLeft7L1881677K
- 1Seat FrameLeft7L1881677M
- 1Seat FrameLeft7L1881677P
- 1Seat FrameLeft7E1881677AH
- 1Seat FrameLeft7E1881677AJ
- 1Seat FrameLeft7E1881677AK
- 1Seat FrameLeft7L1881677
- 1Seat FrameLeft7L1881677E
- 1Seat FrameLeft7L1881677G
- 1Seat FrameLeft7L1881677L
- 1Seat FrameLeft7L1881677N
- 1PartRight7L2881677A
- 1Seat Frame 7LA881677B
- 2Collar Nut N10261310
- 3Sleeve 7H0881493
- 4Bolt 7E0881700
- 5Collar Nut N02300313
- 6ChannelLeft7E7881201A
- 6ChannelLeft7E7881201B
- 6ChannelRight7E7881202A
- 6ChannelRight7E7881202B
- 7Bolt N10005207
- 8Strip 7H0881567A
- 10Connector Piece 7H0881588B
- 12Seat Frame 7E0881617B
- 12Part 7E0881617F
- 13Adjuster 6Q0881053B
- 14Bolt N10572405
- 15Part 7E0881767
- 16Part 7H0881181
- 17Bush 7H0881529
- 18Lever 7E0881091B
- 19Bolt N90804903
- 20Frame 7E0882309
- 20Frame 7LA882309
- 21Part 7H7881712
- 22Bolt N10306504
- 23Bolt N10156305
- 24Spring 7H7881985A
- 25Adapter 7E7881033B
- 26Spacer Pl 7E7881291B
- 28Seat Well 7H0881303G
- 29Underlay 251201525
- 30Trim 7E7881319
- 31Trim 7E7881317
- 31Trim 7H0881317D
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | PR |
|---|---|---|---|
| caravelle | 2019-2024 | 1 | |
| Single-cab transp. | 2019-2024 | 1 | 5N2 |
The manufacturer’s catalogue lists this part number as fitted until August 2024; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
7LA881677B01A Volkswagen Seat Frame (Black 01A) is fitted on: caravelle 2019-2024; Single-cab transp. 2019-2024.
