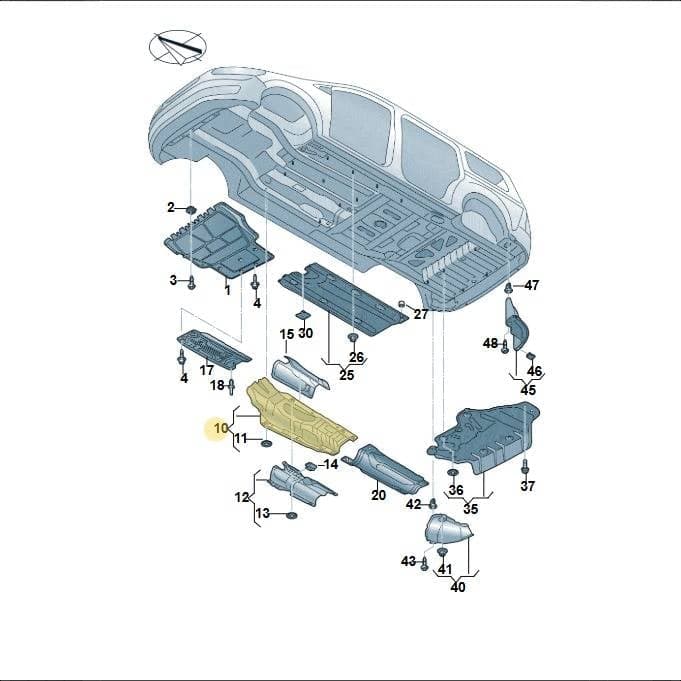

Number 10 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Shield For Tunnel, part number 7N0825661B. This heat shield protects vehicle components from excessive heat generated by the exhaust system. It is located at position 10 in the underbody assembly. Constructed from heat-resistant materials to withstand high temperatures. Genuine OEM parts are manufactured to exact specifications for optimal performance and longevity.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 155.5 × 54 × 34.3 cm
- Shipping weight
- 1.19 kg
Parts diagram & fitment
4 vehiclesHeat Shield For Tunnel — locate 7N0825661B Volkswagen Heat Shield | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(22)
- 1Insulation 7N0825235
- 1Insulation 7N0825235B
- 2Bolt WHT000729A
- 3Part N90959101
- 4Bolt N90974701
- 5TrimRight7N0825202B
- 5TrimLeft7N0825201A
- 6Trim 7N0825206
- 8Collar Nut WHT000713
- 9Spacer 7N0825981
- 16Heat Sh 7N0825671
- 17Clip 441863987B
- 18Heat Sh 7N0825711A
- 18Heat Sh 7N0825711
- 20Bolt N0195307
- 21Trim 7N0825205
- 24Part N90833801
- 25BungsRight3C0825962
- 25BungsLeft3C0825961
- 30Heat Sh 7N0825725A
- 30Heat Sh 7N0825725
- 35Insulation 7N0825635
Compatible / alternative parts(4)
Diagrams & fitment data powered by oemdiagrams.com
7N0825661B Volkswagen Heat Shield | Genuine OEM is fitted on: Sharan Blue Motion 2010-2015; Sharan BlueMotion 2015-2022; Alhambra Stylance 2010-2013; Alhambra Stylance 2015-2022.
