Target · Diagram
Find this reference above

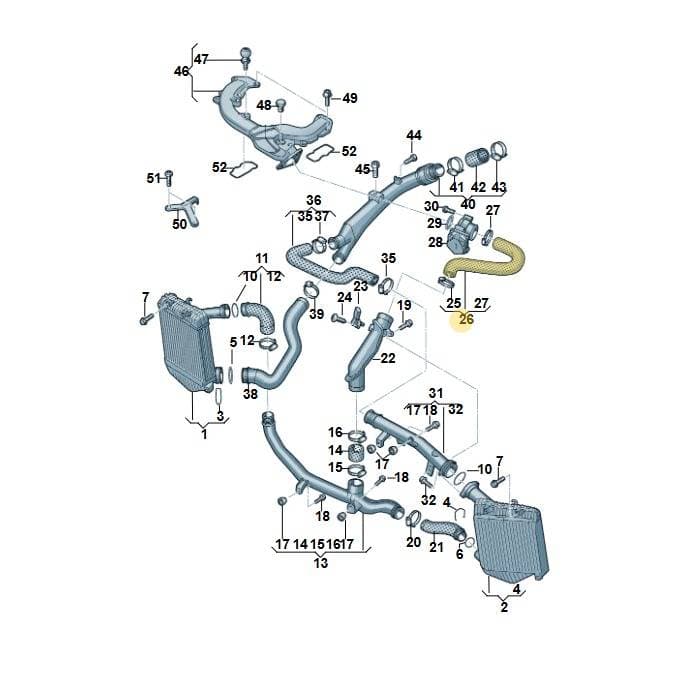

Number 26 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Pressure Hose, part number 7P0145972A. This hose conveys pressurized fluid or air, ensuring proper system operation. It is located at position 26 in the diagram. The length of the hose is 0.315 meters.
Technical details
- Category
- Intake & Turbo
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 31.5 × 20 × 11 cm
- Shipping weight
- 0.73 kg
Parts diagram & fitment
1 vehiclePressure Hose — locate 7P0145972A Volkswagen Pressure Hose | Position 26 in the official exploded view and explore the surrounding assembly.
Parts in this assembly(44)
- 1Cooler 7P0145804C
- 2Cooler 7L6145803H
- 3Clip 1J0145769G
- 3Clip 1K0145769C
- 3Clip 1K0145769A
- 5Seal Ring 3C0145117F
- 7Bolt N91053801
- 10Seal Ring WHT001018A
- 10Seal Ring 3C0145117B
- 11Hose 7P0145708A
- 12Clamp N10734901
- 13Chargetube 7P0145792
- 14Hose 7P0145709
- 15Clamp N10544401
- 17Grommet 867129669
- 18Bush 7L6145830
- 19Bolt N90958904
- 20Clamp N10734801
- 21Hose 7P0145943
- 22Air Pipe 7P0145770
- 23Sensor 038906051C
- 24Screw N10507201
- 28Thr Flap 4E0145950J
- 29Seal Ring 059145865
- 30Bolt N91071701
- 31Pipe 7P0145762A
- 32Bolt N10124408
- 35Clamp N10518901
- 36Hose 7P6145737B
- 36Hose 7P0145737
- 37Clamp N10518801
- 38Hose 7P0145738
- 39Clamp N10735501
- 40Chargetube 7P0145941A
- 41Clamp N10619801
- 42Hose 7P0145832A
- 44Bolt N10335202
- 46Pipe 059145762K
- 47Part WHT000351
- 48Screw N0161581
- 49Screw N10626801
- 49Bolt N91054001
- 50Bracket 059145764
- 51Bolt N10405604
Diagrams & fitment data powered by oemdiagrams.com
7P0145972A Volkswagen Pressure Hose | Position 26 is fitted on: touareg 2010-2012.
