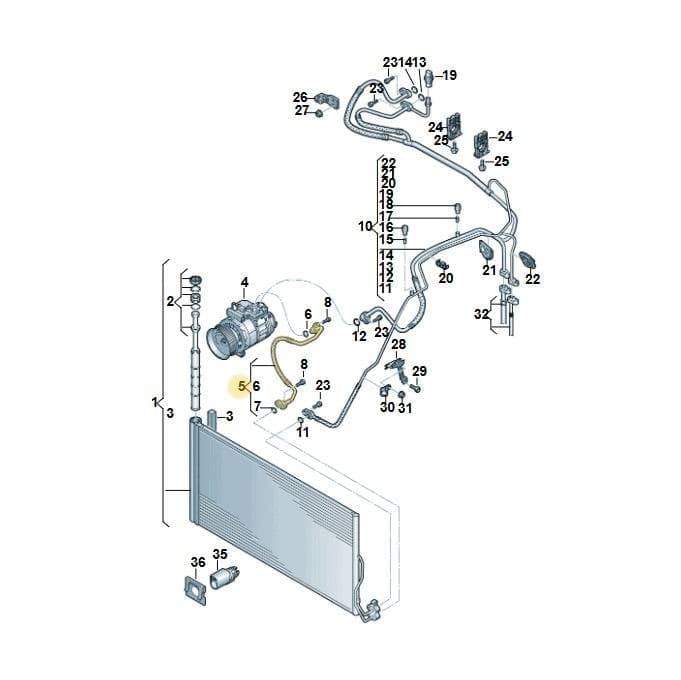

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 7P0820721H. This line transports refrigerant between components in the air conditioning system. It is located at position 5 in the diagram. Genuine OEM refrigerant lines are manufactured to precise specifications to ensure leak-free operation and optimal A/C performance.
Catalogue entry: LINE.
Fitted with: 7P0820721L LINE, 7P0816721 LINE, 7P0816721D LINE, N10414402 SCREW.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 56 × 21 × 10 cm
- Shipping weight
- 0.25 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesRefrigerant Line — locate 7P0820721H Volkswagen Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Condenser 7P0820411A
- 2Drier 7P0898191
- 3Seal 7P0820877
- 6Seal Ring 4E0260749A
- 8Screw N10414402
- 10LineLeft7P1820741AP
- 10LineLeft7P1820741BG
- 10LineRight7P2820741AK
- 10LineRight7P2820741AL
- 10LineLeft7P1820741BH
- 11Seal Ring 3D0260749C
- 12Seal Ring 8E0260749C
- 14Seal Ring 4E0260749B
- 15Valve 8E0820855
- 16Part 3C0820581
- 18Part 3C0820231
- 19Pressure 4H0959126A
- 20Bracket 8E0260759AD
- 21Grommet 7P0820667
- 22Grommet 7P0820668
- 24Clip 7P0820055B
- 25Bolt N91123501
- 26Clip 7P0820055A
- 27Collar Nut N90455301
- 28Bracket 7P0820893A
- 29Bolt N91096701
- 30Clamp N0206015
- 31Collar Nut N01508210
- 35Sensor 8Z0820535
- 36Bracket 6Q0971845C
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Touareg BlueMotion | 2014-2018 | 5 | 1 |
| touareg | 2012-2014 | 5 |
The manufacturer’s catalogue lists this part number as fitted until 29 May 2016; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
7P0820721H Volkswagen Refrigerant Line | Genuine OEM is fitted on: Touareg BlueMotion 2014-2018; touareg 2012-2014.
