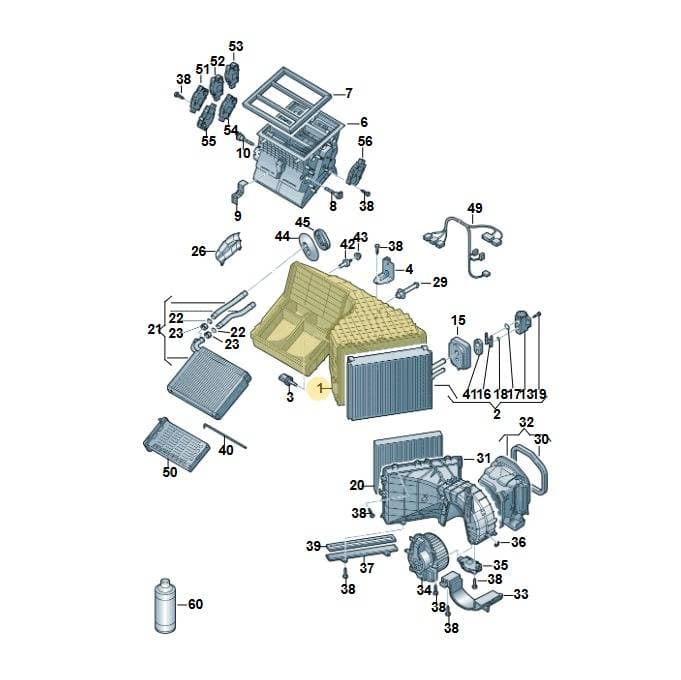

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Evaporator Housing, part number 7P1820121. This housing encloses the evaporator core, which is essential for cooling the air passing through the vehicle's climate control system. It is located within the main HVAC unit assembly, at position 1 on the diagram. Genuine OEM parts ensure the integrity of the climate control system and proper sealing for efficient cooling.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 63 × 35 × 22 cm
- Shipping weight
- 2.36 kg
Parts diagram & fitment
3 vehiclesEvaporator Housing — locate 7P1820121 Volkswagen Evaporator Housing | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Housing 7P1820123
- 2Evaporator 7P0820101C
- 2Evaporator 7P0820101B
- 3Temperature Sensor 1K0907543G
- 4Bracket 7P1820515
- 5Sealg Cord 7H0819211
- 6PartLeft7P1820354A
- 6PartRight7P2820354
- 6PartRight7P2820354A
- 6PartLeft7P1820354
- 7Seal 7H0819064B
- 8Temperature Sensor 3D0907543A
- 9Bracket 7P1820761
- 13Expans Val 7P0820679A
- 15Seal 7L0820513G
- 15Seal 7L0820513F
- 16Bracket 7L0820678
- 17Seal Ring 8E0260749
- 18Seal Ring 8E0260749A
- 19Screw N10476301
- 20Dust Filt 7P0819631
- 21Heat Exch 7P0819031A
- 21Heat Exch 7P0819031
- 22Seal Ring N90973201
- 23Clamp Spring 7H0819139
- 26CoverRight7P1820582
- 26CoverLeft7P1820581
- 29Drain Tube 7L0820119B
- 30Seal 7L0819143C
- 30Seal 7L0819143B
- 31HousingRight7P2815153
- 31HousingLeft7P1815153
- 32Int DuctRight7P2820304
- 32Int DuctLeft7P1820304
- 33CoverRight7P2820057
- 33CoverLeft7P1820057
- 34Blower 7P0820021C
- 34Blower 7P0820021B
- 35Servomotor 7P0907511
- 36Clip 7H0819059
- 37Part 7P1820955
- 38Screw N10424102
- 40Part 7P1820117
- 41Seal 7H0819737
- 42Rubber Bush 7L0819133
- 43Part N90217304
- 44Grommet 7L0819345A
- 45Clip 7H0819058
Diagrams & fitment data powered by oemdiagrams.com
7P1820121 Volkswagen Evaporator Housing | Genuine OEM is fitted on: touareg 2010-2012; touareg 2012-2014; Touareg BlueMotion 2014-2018.
