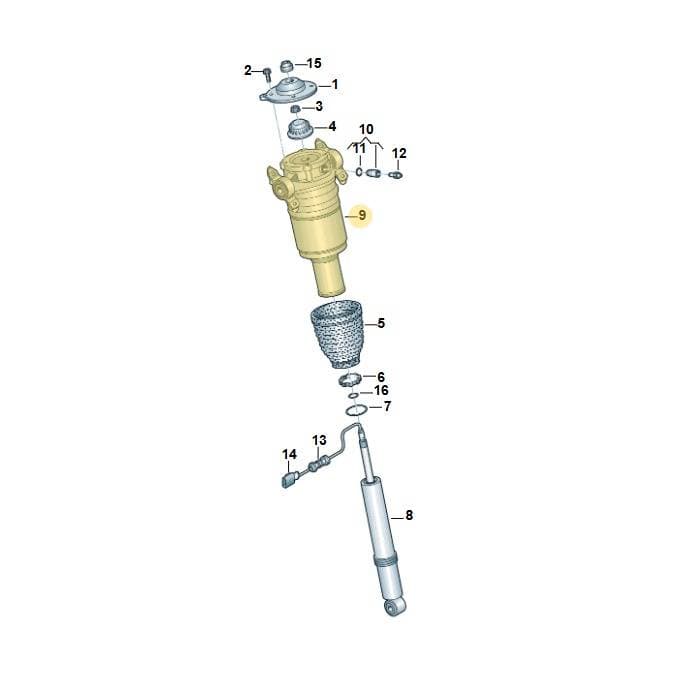

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Air Spring, part number 7P6616503J. This air spring adjusts vehicle ride height and absorbs road imperfections to provide a smooth and comfortable ride. It is located in position 9 on the diagram. Genuine OEM air springs are manufactured to precise tolerances to ensure consistent performance and longevity in the suspension system.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 40.5 × 26 × 17 cm
- Shipping weight
- 3.86 kg
Parts diagram & fitment
3 vehiclesAir Spring — locate 7P6616503J Volkswagen Air Spring | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(20)
- 1Cover 7P0512087C
- 2Bolt N10127707
- 3Collar Nut WHT004925
- 4Mounting 7P6412327
- 5Cover 7P0412137B
- 6Ret Ring 7P0412269A
- 7Seal Ring 7P0616045
- 8Shock Abs 7P6513029AD
- 9Air SpringLeft7P6616503H
- 9Air SpringRight7P6616504G
- 9Air SpringRight7P6616504H
- 9Air SpringRight7P6616504J
- 9Air SpringLeft7P6616503G
- 10Valve 7P0616813A
- 11Seal Ring 7L0616817
- 12Connection 7L0616758
- 13Grommet 7P0971878
- 14Housing 1J0973802
- 15Grommet 7P0971873D
- 16Seal Ring N90367701
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
7P6616503J Volkswagen Air Spring | Genuine OEM is fitted on: touareg 2010-2012; touareg 2012-2014; Touareg BlueMotion 2014-2018.
