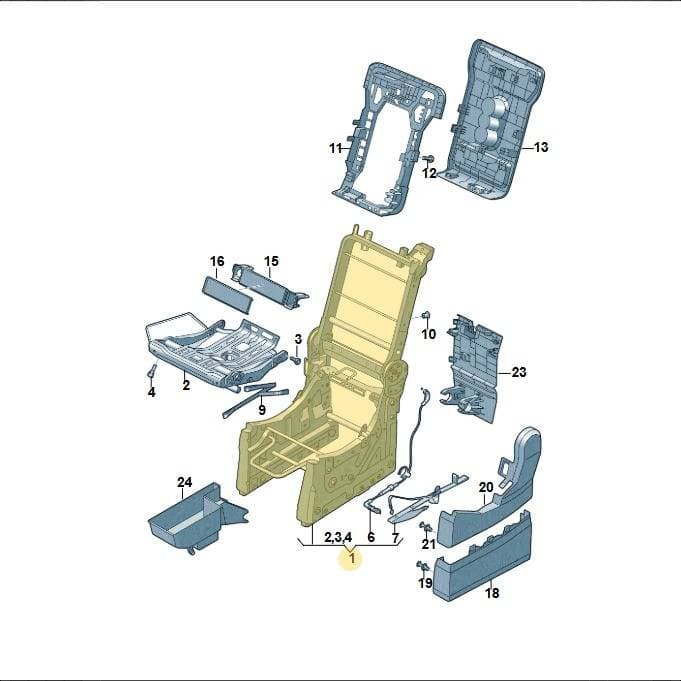

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seat Frame, part number 7T0883061D. This is the main structural component of the seat assembly, providing support for all other seat parts. It is a substantial metal frame, forming the core of the seat. Genuine OEM seat frames are engineered for maximum strength and durability.
Technical details
- Category
- Seats
- Customs (HS) code
- 94019990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 58 × 40.5 × 54 cm
- Shipping weight
- 20.28 kg
Parts diagram & fitment
1 vehicleSeat And Backrest Frame — locate 7T0883061D Volkswagen Seat Frame | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 7T0883061E — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(20)
- 1Frame 7T0883061C
- 1Frame 7T0883061E
- 4Packing 7T0881293
- 6Cable 7T0885595
- 7Loop 7T0883385
- 9Loop 7T0883875C
- 9Loop 7T0883875B
- 10Grommet 3B0867334
- 11Adapter 7T0885221A
- 11Adapter 7T0885221B
- 12Clip 3B0867333
- 13Cover 7T0883611A
- 18TrimRight7T0883854
- 18TrimLeft7T0883853
- 19Spring Rivet N10700902
- 20Trim 7T0883870B
- 20Trim 7T0883869C
- 20Trim 7T0883870
- 23Panel 7T0883891C
- 24Tank 7T0883955
Compatible / alternative parts(12)
- Part 7T0883611A
- Part 7T0883891C
- Part 7T0883233A
- Part 7T0883233B
- Part 7T0883233D
- Part 7T0883869C
- Part 7T0883955
- PartLeft7T0883853
- Part 7T0883870
- Part 7T0883920
- Part 7T0883920A
- Part 7T0883870B
Diagrams & fitment data powered by oemdiagrams.com
7T0883061D Volkswagen Seat Frame | Genuine OEM is fitted on: Multivan 2021-.
