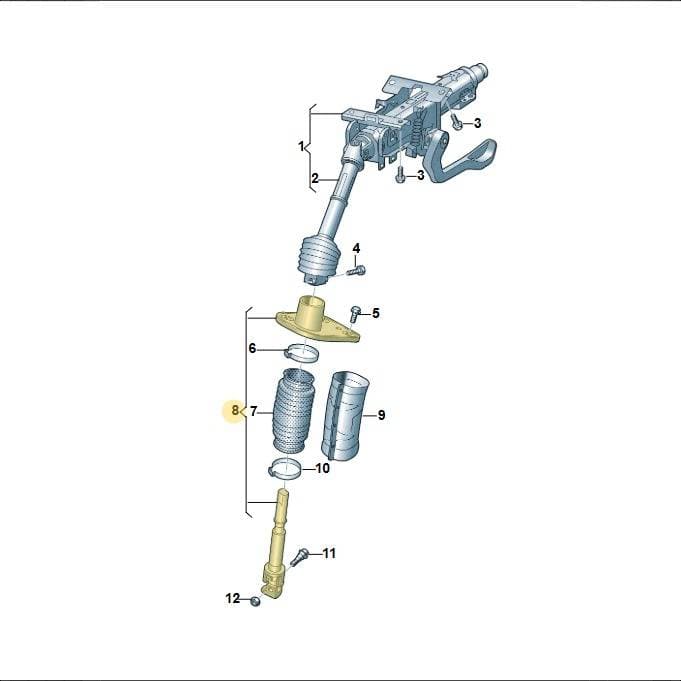

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Protection Sleeve, part number 7T1419751. This sleeve shields sensitive components from excessive heat generated by the engine or exhaust. It is located in the steering system assembly, specifically indicated as part 8 on the diagram. Manufactured to precise specifications for optimal performance and durability.
Technical details
- Category
- Steering
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29 × 16.5 × 10 cm
- Shipping weight
- 1.3 kg
Parts diagram & fitment
1 vehicleIntermediate Steering Shaft — locate 7T1419751 Volkswagen Heat Protection Sleeve | Steering in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Superseded by 7T1419751A — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(17)
- 1Steer ColRight7T2419501A
- 1Steer ColRight7T2419501B
- 1Steer ColLeft7T1419501A
- 1Steer ColLeft7T1419501B
- 3Screw N10870601
- 3Bolt N0195307
- 4Bolt N10518405
- 5Bolt N0195195
- 6Clip N10400601
- 7Cover 7T0419069
- 8St ShaftRight7T2419751
- 8St ShaftRight7T2419751B
- 8St ShaftLeft7T1419751A
- 9At Heat Reflective Mat Heat Reflective Mat Heat 7T2419559
- 10Clip N10279501
- 11Screw 4D0419699
- 12Ut Hexagon Nut Self-locking Hexagon Nut N90615602
Diagrams & fitment data powered by oemdiagrams.com
7T1419751 Volkswagen Heat Protection Sleeve | Steering is fitted on: Multivan 2021-.
