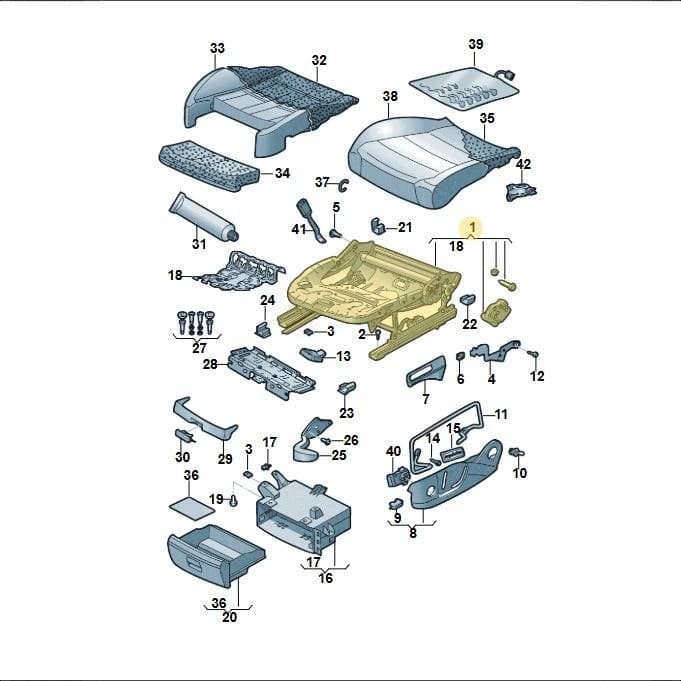

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seat Frame, part number 80A881105G. This frame forms the primary structural support for the vehicle's seat, enabling height adjustment. It is located as the main structure of the seat assembly. The seat frame is built with high-strength materials for optimal support. Genuine OEM seat frames ensure precise fitment and reliable performance of seat adjustments.
Technical details
- Category
- Seats
- Customs (HS) code
- 94019990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 68 × 54 × 21.5 cm
- Shipping weight
- 9.61 kg
Parts diagram & fitment
5 vehiclesSeat Frame With Height Adjustment — locate 80A881105G Volkswagen Seat Frame | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(25)
- 4Bolt N10771501
- 5Lever 3CN881091C
- 6Clip 1K0881449
- 7Screw N91205201
- 8Bolt WHT002796B
- 10Cover 510881347A
- 11Cover 510881348A
- 14Handle 5NA881253
- 20Part N90168607
- 21Trim 3CN881313
- 22Bolt N90737107
- 23Part 3CN881637
- 24Handle 3CN881605
- 25Handle 3CN882251
- 26Spring Rivet N0385013
- 30Part 3CN881537A
- 31Spring 3CN881095A
- 34Clip 5C6881279
- 35Part 3CN881069A
- 36Valve 5C6881615
- 37Clip 5C6881621
- 38Spacer Pl 5C6881291A
- 39Basicplate 5C6882377
- 42Clip 7H0881621
- 43Clip N10867601
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
80A881105G Volkswagen Seat Frame | Genuine OEM is fitted on: Atlas Cross Sport 2019-2023; Taos 1.4 2020-2024; Atlas 2016-2023; Tiguan 2.0 4Motion 2017-2024; Audi Q5 2016-2020.
