Product overview

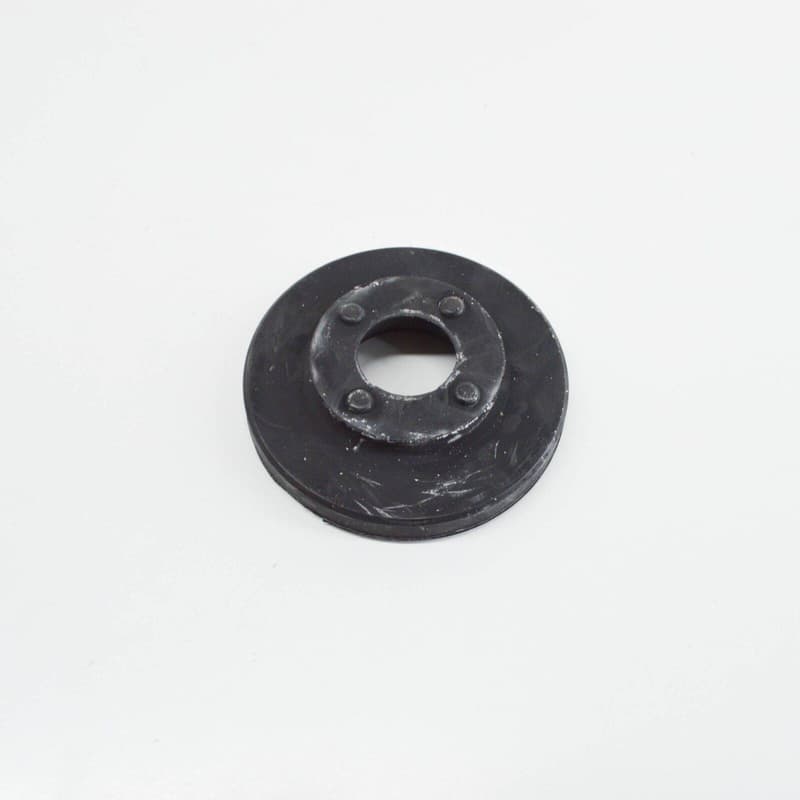

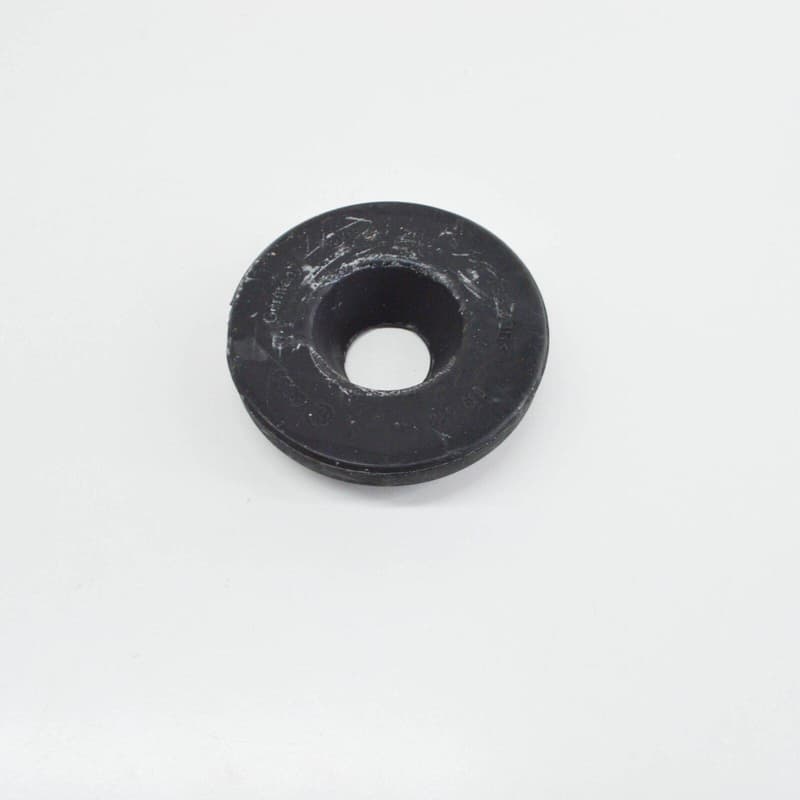

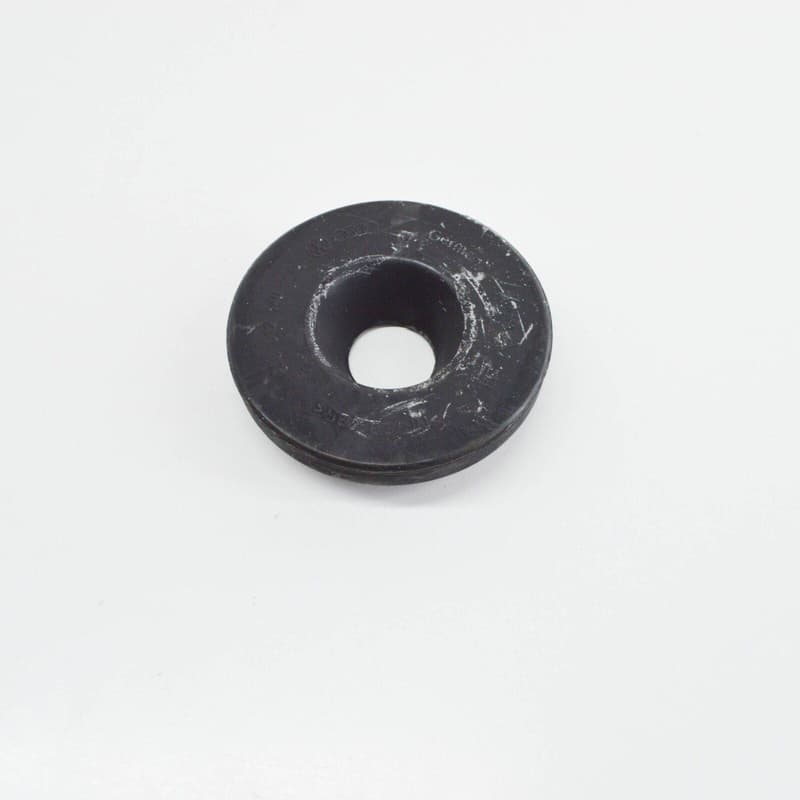

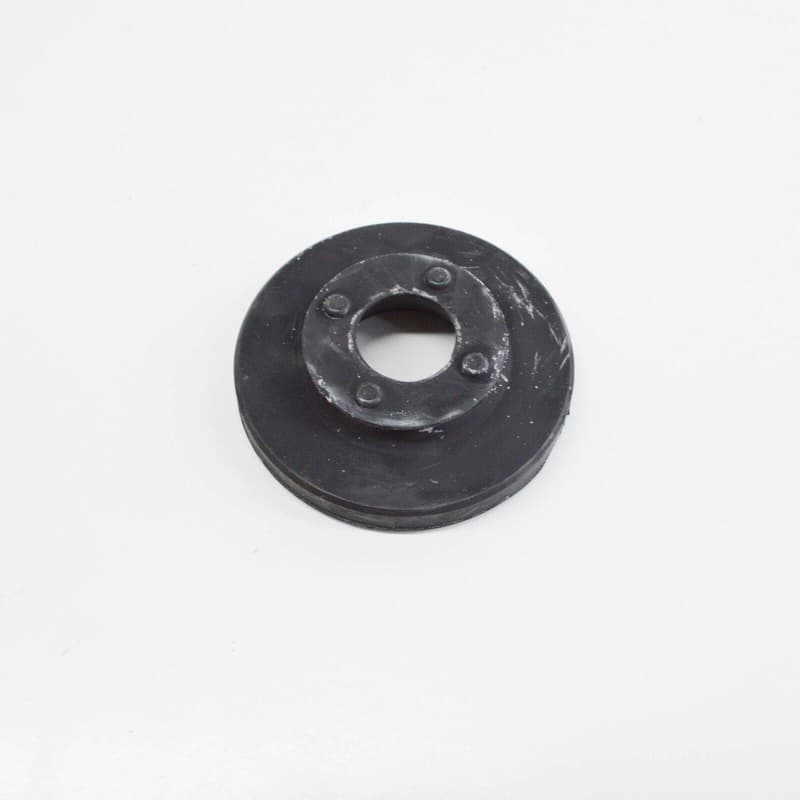

Genuine OEM Audi Coil Spring Upper Insulator, part number 8J0512149. This component is designed to provide essential cushioning and noise reduction for the coil spring, enhancing ride comfort and preventing metal-on-metal contact. It is specifically for the rear suspension assembly. Weighing 0.118 kg and measuring 0.101m in diameter and 0.024m high, this insulator is manufactured from durable, resilient material to factory specifications. Choosing a genuine OEM insulator ensures proper fitment, effective vibration damping, and long-lasting performance within the suspension system.
Technical details
- Category
- Suspension
- Country of origin
- Germany
- Customs (HS) code
- 87088035
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 10.1 × 10.1 × 2.4 cm
- Shipping weight
- 0.12 kg
Parts diagram & fitment
12 vehiclesUnderlay — locate 8J0512149 Audi Coil Spring Upper Insulator | Rear in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1Coilspring 5Q0511115FJ
- 1Coilspring 5Q0511115FK
- 1Coilspring 5Q0511115FL
- 1Coilspring 5Q0511115FM
- 1Coilspring 5Q0511115FN
- 1Coilspring 5Q0511115FP
- 1Coilspring 5Q0511115FH
- 3Underlay 5Q0512297D
- 5Underlay 5Q0512149B
- 7Shock Abs 5Q0513029EL
- 7Shock Abs 5Q0513029EC
- 8Screw N10883401
- 8Bolt N10628301
- 9Collar Nut N10106403
- 11Buffer 5Q0511358D
- 12Bearing 5Q0513353K
- 13Ut Hexagon Nut Self-locking Hexagon Nut WHT007127
- 14Part 1J0512135A
- 15Bolt N90648402
- 19Cable Tie N10662201
- 22Splash GrdLeft5Q0501733A
- 22Splash GrdRight5Q0501734
- 22Splash GrdRight5Q0501734A
- 22Stone ChipLeft5Q0511533A
- 22Stone ChipRight5Q0511534A
- 22Splash GrdLeft5Q0501733
- 23Part N90920301
- 24Bolt N91133501
- 25Spring Rivet 8E0825267
Compatible / alternative parts(4)
Diagrams & fitment data powered by oemdiagrams.com
8J0512149 Audi Coil Spring Upper Insulator | Rear is fitted on: Audi A3 Sportback 2019-2021; Audi TT Coupe/Roadster 08> 2007-; Audi TTS Coupe 2.0 2010-2014; Audi A3 Sportback 2012-2016; Audi A3 Cab. 1.4 2013-2016; Audi Q2 2.0 TDI 2016-2018; Audi TTS Coupe 2.0 2014-2023; Audi RS3 Limousine 2017-2020; Audi RS3 Sportback 2015-2016; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Audi TTRS Coupe 2016-2023.
