Product overview

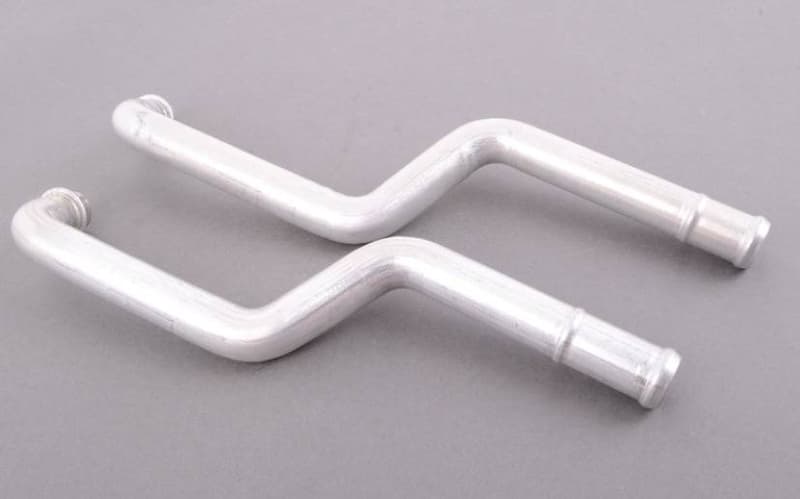

Genuine OEM Audi Heating Core Pipe Set, part number 8K1898037. This set consists of two bent metal pipes that connect various components within the vehicle's heating and air conditioning system, facilitating the circulation of heating fluid. The set weighs 0.118 kg. Choosing genuine OEM heating pipes ensures precise bends and connections, preventing leaks and maintaining the efficiency and reliability of the HVAC system.
Catalogue entry: PIPE.
Technical details
- Category
- Heating & A/C
- Country of origin
- Germany
- Customs (HS) code
- 84159000
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 30 × 11 × 5 cm
- Shipping weight
- 0.12 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 9AK
- 9AQ
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

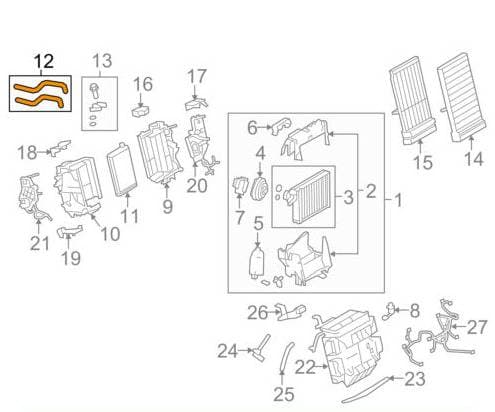

14 vehicles1 Set: Pipes For Heat Exchanger — locate 8K1898037 Audi Heating Core Pipe Set | HVAC System in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly48
- 1Int DuctRight8K2820153
- 1Int DuctLeft8K1820153
- 2Seal 8K0819229
- 3BlowerLeft8K1820021C
- 3BlowerRight8K2820021C
- 3ACoverRight8K2815057
- 3ACoverLeft8K1815057
- 4HousingRight8K2820356A
- 4HousingLeft8K1820356A
- 5Cover 8K0819422A
- 5Cover 8K0819422
- 6Dust Filt 8K0819439B
- 6Filterelem 8K0819439
- 7ValveRight8K2819425
- 7ValveLeft8K1819425
- 8Regulator 8K0820521B
- 9HousingRight8K2820024A
- 9HousingLeft8K1820024
- 10CoverRight8K2819422
- 10CoverLeft8K1819422
- 11Pipe Holde 8K0820536A
- 12Temperature Sensor 8K0820539
- 13Plate 8K0898037
- 14EvaporatorRight8K2898967A
- 14EvaporatorLeft8K1898967A
- 15HousingRight8K2898191A
- 15HousingLeft8K1898191A
- 16Grommet 8K1819345
- 17Expans Val 8K0820679B
- 17AGask Set 8K0820261
- 18Part 8K0898037A
- 19Pipe Holde 8K0898967
- 20PartRight8K2898037
- 21Heater 8K0819011
- 22Grille 8K0819164
- 23HousingLeft8K1820007E
- 23HousingRight8K2820007D
- 23HousingRight8K2820007E
- 23HousingLeft8K1820007D
- 24PartLeft8K1820007G
- 24PartRight8K2820007F
- 24PartRight8K2820007G
- 24PartLeft8K1820007F
- 25RetainerLeft8K1820892
- 25Retainer 8K0820892
- 25RetainerRight8K2820892
- 26RetainerRight8K2820892A
- 26RetainerLeft8K1820892A
Compatible / alternative parts(2)
Vehicle fitment table14
Europe (13)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 20 | 1 | |
| Audi RS4 Av. qu. 4.2 | 2012-2015 | 20 | 1 | L0L |
| Audi RS5 Cabrio | 2012-2015 | 20 | 1 | L0L |
| Audi A5 Sportback | 2011-2017 | 20 | 1 | L0L |
| Audi A5 Cabrio 2.0 | 2011-2017 | 20 | 1 | L0L |
| audi a4 av. 2.0 tdi | 2011-2015 | 20 | 1 | L0L |
| Audi RS5 Coupe | 2010-2015 | 20 | 1 | L0L |
| Audi Q5 qu. 2.0 | 2009-2018 | 20 | 1 | 9AK |
| Audi A4 Av. Allroad | 2008-2016 | 20 | 1 | L0L |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 20 | 1 | |
| Audi A5 Cabrio 2.0 | 2008-2012 | 20 | 1 | L0L |
| Audi A5/S5 Coupe 08> | 2007- | 20 | ||
| AUDI A4 08> | 2007- | 20 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A4L 2.0 | 2008-2012 | 20 | 1 | L0L |
Diagrams & fitment data powered by oemdiagrams.com
8K1898037 Audi Heating Core Pipe Set | HVAC System is fitted on: Audi Q5 qu. 2.0 TDI 2012-2017; Audi RS4 Av. qu. 4.2 2012-2015; Audi RS5 Cabrio 2012-2015; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi RS5 Coupe 2010-2015; Audi Q5 qu. 2.0 2009-2018; Audi A4 Av. Allroad 2008-2016; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A5 Cabrio 2.0 2008-2012; Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Audi A4L 2.0 2008-2012.
