Product overview
Genuine OEM Audi Brake Pipe, part number 8T0614724A. This critical component is responsible for transmitting hydraulic pressure within the braking system, ensuring effective and responsive braking. It connects directly to the ABS module. Weighing approximately 0.081 kg and measuring 1.1 meters in length, this pipe is designed for precise fitment. Using a genuine OEM brake pipe ensures the correct material composition, pressure resistance, and routing, which is paramount for maintaining braking system integrity and safety.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 110 × 35 × 6 cm
- Shipping weight
- 0.08 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

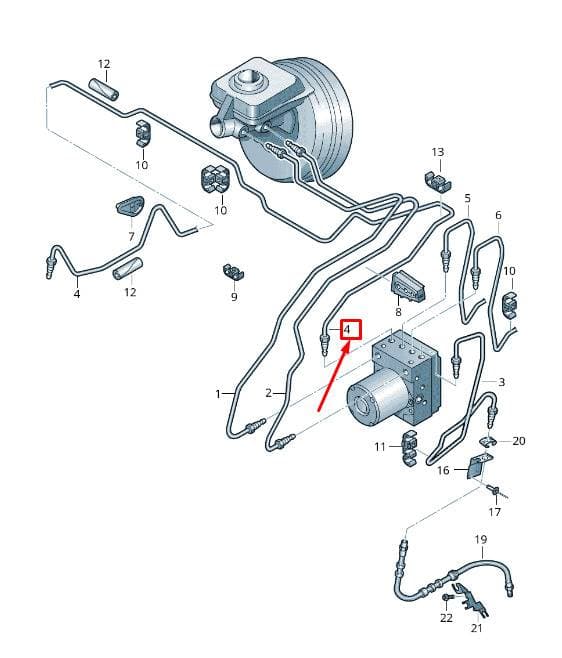

Parts diagram & fitment
3 vehiclesBrake Pipe From Hydraulics To Brake Hose — locate 8T0614724A Audi Brake Pipe | Transmits Hydraulic Pressure in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Brake PipeRight8K2614705M
- 1Brake PipeLeft8K1614705G
- 2Brake PipeRight8K2614706L
- 2Brake PipeLeft8K1614706F
- 3Brake Pipe 8T0614723A
- 3Brake Pipe 8T0614723B
- 3Brake Pipe 8K0614723S
- 4Part 8K0614724AC
- 4Part 8K0614724T
- 5Brake Pipe 8T0614725P
- 5Part 8T0614725M
- 6Brake Pipe 8T0614726AA
- 6Brake Pipe 8T0614726S
- 7Grommet 8K0614769B
- 8Grommet 8K0614769E
- 9Clip 8K0611797D
- 11Retainer 8K0611797E
- 12Spacer 4G0611853
- 13Bracket 6Q0611797C
- 16RetainerRight8K0611846R
- 16RetainerLeft8K0616275B
- 16RetainerRight8K0616276B
- 16RetainerLeft8K0611845R
- 17Pop Rivet N90826303
- 19Brake Hose 8T0611707B
- 19Brake Hose 8T0611707
- 20Spring 8K0611715
- 21Part 4H0971502
- 21Part 8K0971502K
- 21Part 8K0971502J
- 22Bolt N10082912
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi RS4 Av. qu. 4.2 | 2012-2015 | 4 | 1 | 2MC | |
| Audi RS5 Cabrio | 2012-2015 | 4 | 1 | 2MC | |
| Audi RS5 Coupe | 2010-2015 | 4 | 1 | 2MC |
Diagrams & fitment data powered by oemdiagrams.com
8T0614724A Audi Brake Pipe | Transmits Hydraulic Pressure is fitted on: Audi RS4 Av. qu. 4.2 2012-2015; Audi RS5 Cabrio 2012-2015; Audi RS5 Coupe 2010-2015.
