Product overview
Genuine OEM Audi HVAC Air Guide, part number 8T2819656. This air guide is designed to direct airflow within the vehicle's heating, ventilation, and air conditioning (HVAC) system, specifically guiding air to a motor or specific area. It is located on the right side and configured for Right-Hand Drive (RHD) vehicles. Weighing 0.172 kg with dimensions of 0.46m length, 0.15m width, and 0.1m height. Using a genuine OEM air guide ensures precise fitment, efficient airflow, and optimal climate control performance.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 87082990
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 46 × 15 × 10 cm
- Shipping weight
- 0.17 kg
Parts diagram & fitment

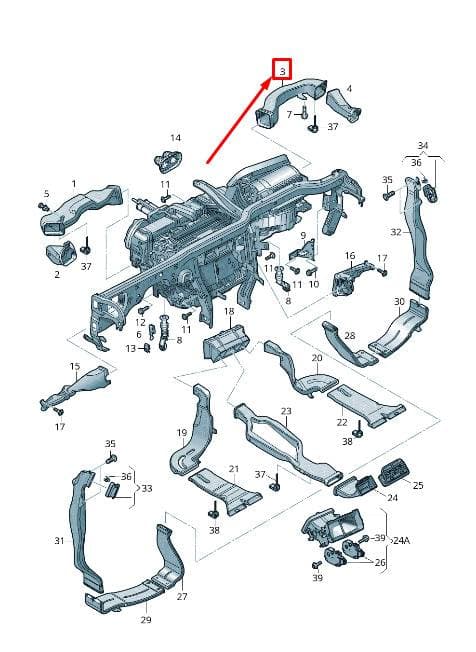

10 vehiclesAir Guide — locate 8T2819656 Audi HVAC Air Guide | Right Side, RHD in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(39)
- 1Air GuideRight8T2819655A
- 1Air GuideLeft8T1819655
- 2Air GuideRight8T2819725A
- 2Air GuideLeft8T1819725
- 3Air GuideLeft8T1819656A
- 4Air GuideLeft8T1819726A
- 4Air GuideRight8T2819726
- 5Spring Rivet 7L6868307
- 6Clip 4B1864247
- 7Bolt N10549503
- 8Hose 8K0260113
- 9PartRight8K2819079
- 9PartLeft8K1819079
- 10Bolt N90457003
- 11Bolt N90808203
- 12Bolt N90438805
- 13Part N90475903
- 14Grommet 8K0819699A
- 15VentRight8K2819151A
- 15VentRight8K2819151B
- 15VentLeft8K1819151A
- 16VentLeft8K1819152B
- 16VentRight8K2819152B
- 16VentLeft8K1819152A
- 17Screw N90985501
- 18Air Guide 8K0819513D
- 18Air Guide 8K0819513E
- 19Air Channel 8K0819503A
- 19Air Channel 8K0819503
- 20Air Channel 8K0819504A
- 20Air Channel 8K0819504
- 21Air Channel 8K0819801A
- 21Air Channel 8K0819801
- 22Air Channel 8K0819802A
- 22Air Channel 8K0819802
- 23Air Channel 8K0857039
- 24Connector Piece 8K0857042
- 25Vent 8K0819203E
- 25Vent 8K0819203A
Diagrams & fitment data powered by oemdiagrams.com
8T2819656 Audi HVAC Air Guide | Right Side, RHD is fitted on: Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Audi A5 Cabrio 2.0 2008-2012; Audi A4 Av. Allroad 2008-2016; Audi RS5 Coupe 2010-2015; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi RS4 Av. qu. 4.2 2012-2015; Audi RS5 Cabrio 2012-2015.
