Product overview
Genuine OEM Audi A/C Refrigerant Line, part number 8V0816721F. This essential component is responsible for transporting refrigerant under pressure throughout the vehicle's air conditioning system, facilitating the cooling process. It is positioned within the complex network of A/C hoses and pipes, connecting major components like the compressor, condenser, and evaporator. Weighing approximately 0.179 kg and measuring 0.445 meters in length, this line is constructed to withstand high pressures and temperature fluctuations. Using a genuine OEM refrigerant line ensures correct routing geometry, leak-free connections, and material compatibility with A/C refrigerants and oils, preventing system leaks and maintaining optimal cooling efficiency.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44.5 × 17 × 7 cm
- Shipping weight
- 0.18 kg
Parts diagram & fitment

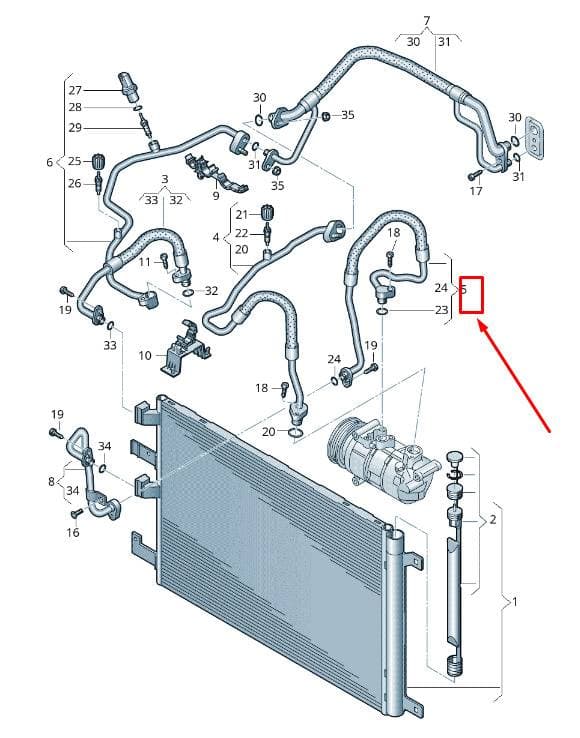

4 vehiclesRefrigerant Line — locate 8V0816721F Audi A/C Refrigerant Line | Air Conditioning System in the official exploded view and explore the surrounding assembly.
Parts in this assembly(34)
- 1Condenser 8V0816411A
- 2Insert 8V0298403
- 3Line 8V0820742
- 4Line 8V0816743
- 4Line 8V0820743C
- 6Line 8S0816741
- 6Line 8S0820741
- 7Part 83A816738
- 8Line 8V0820722A
- 9Clip 5Q0820774
- 10Bracket 5Q0820769
- 11Bolt N10347204
- 16Bolt N10456003
- 17Bolt N91096801
- 18Screw N10414402
- 19Bolt N10347103
- 20Seal Ring 8E0260749C
- 21Part 5Q0816231
- 21Part 3C0820231
- 22Valve 3D0820855A
- 22Valve 8E0820855
- 23Seal Ring 4E0260749A
- 24Seal Ring 3D0260749C
- 25Part 3D0820581
- 25Part 5Q0816581
- 25Part 5Q0816581A
- 25Part 3C0820581
- 27Part 5Q0959126B
- 27Part 5Q0959126A
- 28Seal Ring 7H0820896
- 29Valve 8A0820855AA
- 30Seal Ring 4E0260749B
- 31Seal Ring 4D0260749B
- 35Collar Nut N01508210
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
8V0816721F Audi A/C Refrigerant Line | Air Conditioning System is fitted on: Audi RSQ3 Sportback 2019-2024; Audi A3 Sportback 2019-2021; Audi RS3 Limousine 2017-2020; Audi TTRS Coupe 2016-2023.
