Product overview

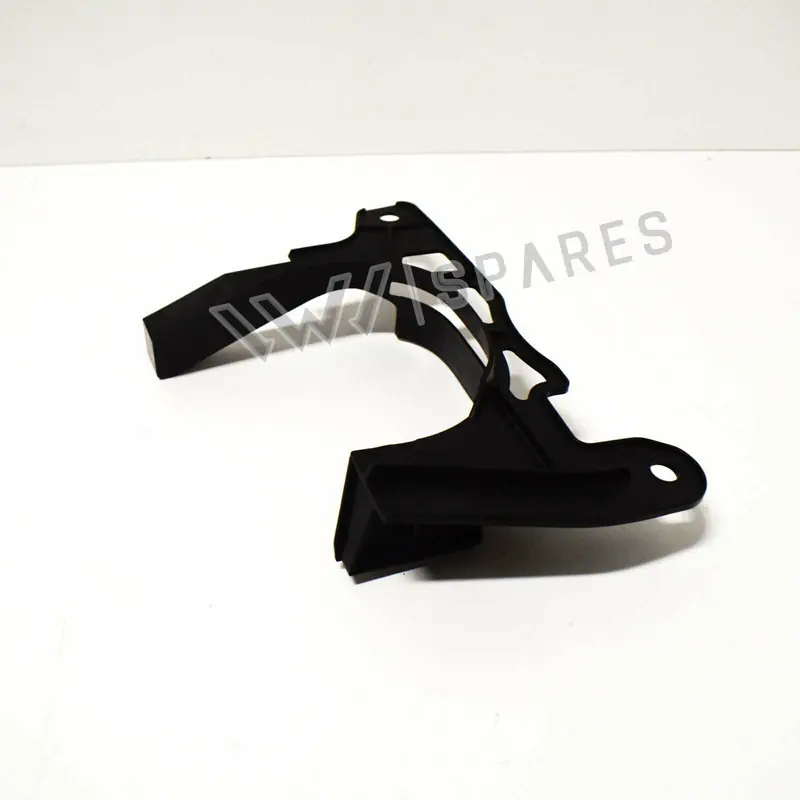

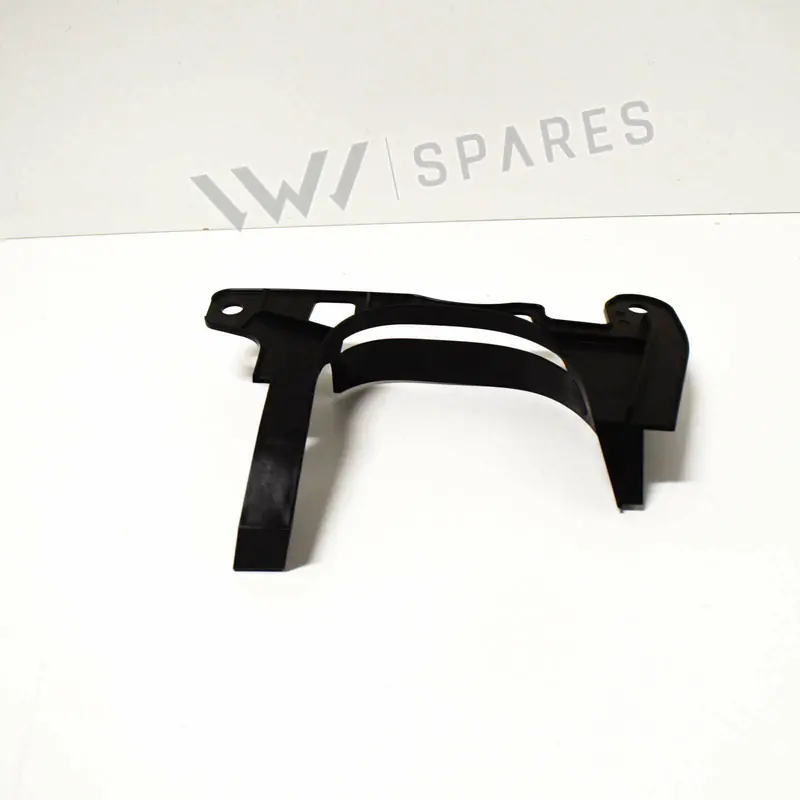

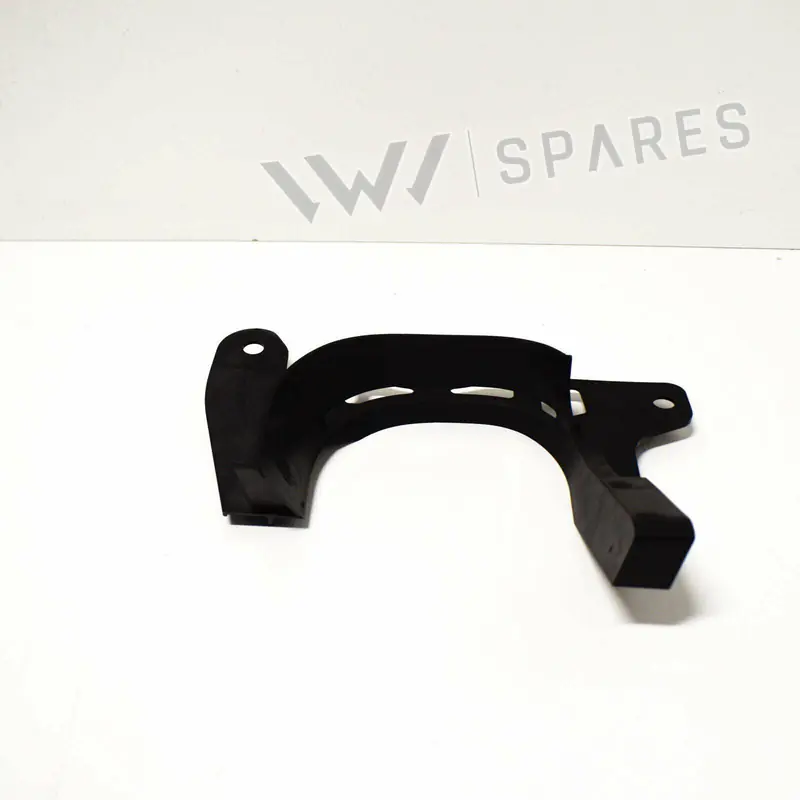

Genuine OEM Audi Radiator Support Splash Shield, part number 8W0863187A. This protective component is installed on the left side to shield the radiator support and surrounding areas from road debris, water, and other contaminants. Made from durable black plastic, it helps prevent corrosion and damage to critical components. Weighing approximately 0.066 kg, genuine OEM splash shields ensure precise fitment and robust protection, maintaining the integrity of the underbody.
Catalogue entry: COVER left.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 24.5 × 20 × 5.5 cm
- Shipping weight
- 0.07 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesCover For Jointed Shaft — locate 8W0863187A Audi Radiator Support Splash Shield | Left in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly20
- 1Insulation 8W0863821C
- 1Insulation 8W0863821D
- 1Insulation 8W0863821E
- 1Insulation 8W0863821B
- 2Dowel Pin 8W0805121
- 3Rubber Was WHT002227
- 4Bolt WHT008613
- 6Clip 4N0825429
- 6Clip 8K0805163A
- 7Bolt N90974701
- 8Bolt 8K0805399B
- 9Bolt N10045504
- 11Part WHT005296
- 12Spring Rivet 8N8868307
- 20Insulation 8W0863822B
- 26Bolt N91251601
- 28Spring Rivet 8K0863788
- 31CoverRight8W0863188A
- 32Collar Nut N90757901
- 33Part 8K0261595
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi RS4 Avant | 2017- | 31 | 1 |
| Audi RS5 Sportback | 2017- | 31 | 1 |
| Audi A5 Sportback | 2016-2020 | 31 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 19 | 1 |
| audi a4 2.0 | 2015-2019 | 31 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 2 August 2021; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
8W0863187A Audi Radiator Support Splash Shield | Left is fitted on: Audi RS4 Avant 2017-; Audi RS5 Sportback 2017-; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
