Product overview

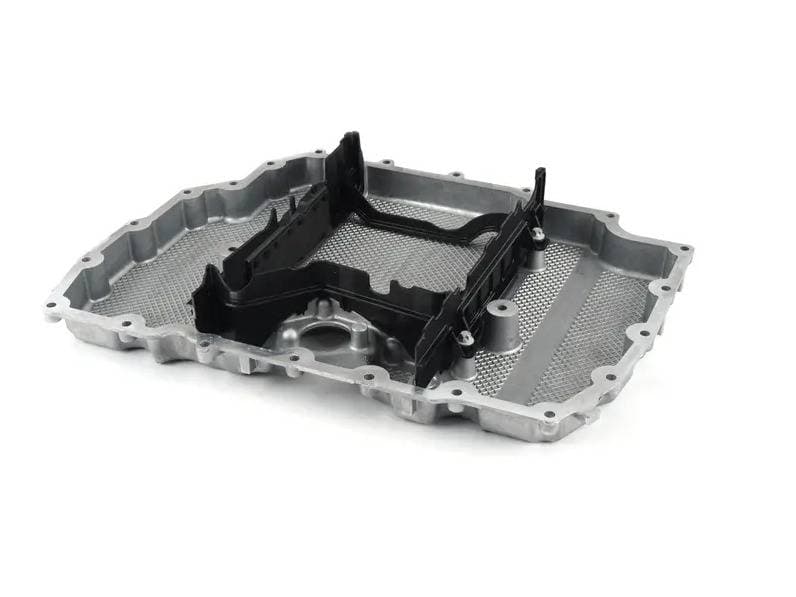

Genuine OEM Porsche Lower Engine Oil Pan, part number 9A110703276. This part collects and holds engine oil at the bottom of the engine. It is located at the base of the engine assembly. This oil pan weighs 2.305 kg. Genuine OEM oil pans are manufactured to exact specifications, ensuring precise fitment and optimal oil containment.
Catalogue entry: OIL SUMP; Lower part.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
- Shipping weight
- 2.31 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- DAB, DABA, DBC, DBCA, DBCB
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

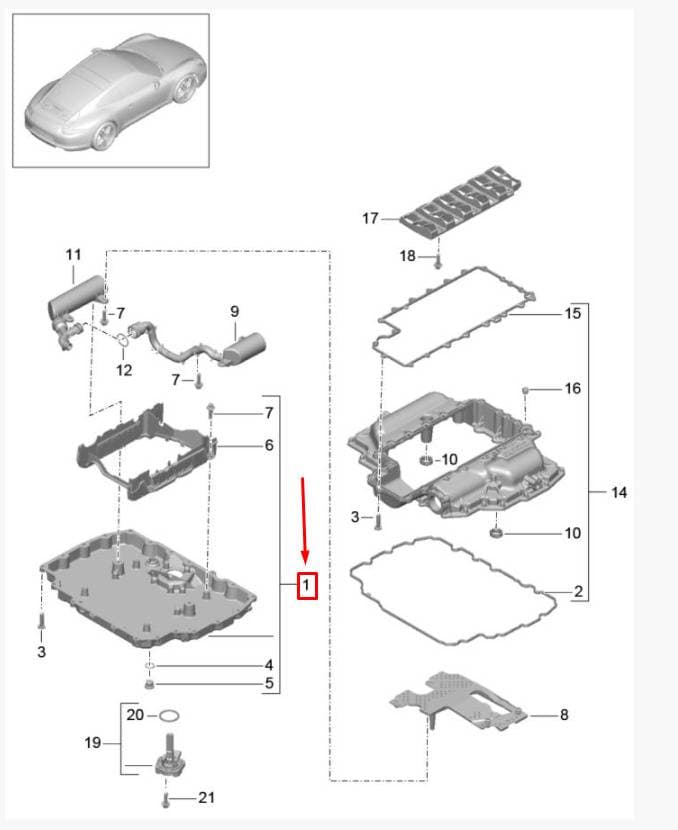

Parts diagram & fitment
6 vehiclesOil Sump — locate 9A110703276 Porsche Lower Engine Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly48
- 1Pressure 94860621300
- 1PartLeft9A110703275
- 1Oil PumpLeft9A110705011
- 1Oil PumpRight9A110705012
- 2Oil Filter 94810702200
- 2Sleeve 99610610350
- 2Gasket 9A110732502
- 3Seal 94810717500
- 3Screw 9A110731300
- 3Seal Ring 9A110732700
- 4Seal Ring 90012310630
- 4Seal Ring 99970734840
- 4Seal Ring 99970737540
- 5Screw 90021902031
- 5Seal Ring 99970763440
- 5Intake Man 9A110707510
- 6Screw 99907310201
- 6Seal Ring 99970763540
- 6Plate 9A110724375
- 7Screw 90038501901
- 7Seal Ring 99970759440
- 7Chn Sprckt 9A110522502
- 8Screw 99907338001
- 8Separator 9A110742001
- 8Seal Ring 9A110746501
- 9Seal Ring 99970759540
- 9Separator 9A110738301
- 10Fuelfiller 9A110701745
- 10Screw 90038512601
- 10Fill Tube 9A110701522
- 11Oil ConducLeft9A110701021
- 11PartRight9A110701022
- 11Oil Conduc 9A110701023
- 11Screw 90038504801
- 11Oil ConducLeft9A110701011
- 11PartRight9A110701012
- 11Oil Conduc 9A110701013
- 11Separator 9A110738001
- 12Bolt 90038500901
- 12Screw 90038502701
- 12Screw 90038527601
- 12Seal Ring 99970765140
- 13Screw 90038512501
- 13Part 9A110702501
- 14Oil Filter 94810722200
- 14Seal Ring 99970757540
- 14Oil Sump 9A110703120
- 15Valve 94810711311
Compatible / alternative parts(4)
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. |
|---|---|---|
| Cayman GT4 | 2015-2016 | 1 |
| Boxster Spyder | 2015-2016 | 1 |
| GT2 RS Clubsport | 2013-2020 | 1 |
| Cayman | 2013-2016 | 1 |
| Boxster | 2012-2016 | 1 |
| 991 Carrera 4 | 2011-2016 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 22 October 2017; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
9A110703276 Porsche Lower Engine Oil Pan | Genuine OEM is fitted on: Cayman GT4 2015-2016; Boxster Spyder 2015-2016; GT2 RS Clubsport 2013-2020; Cayman 2013-2016; Boxster 2012-2016; 991 Carrera 4 2011-2016.
