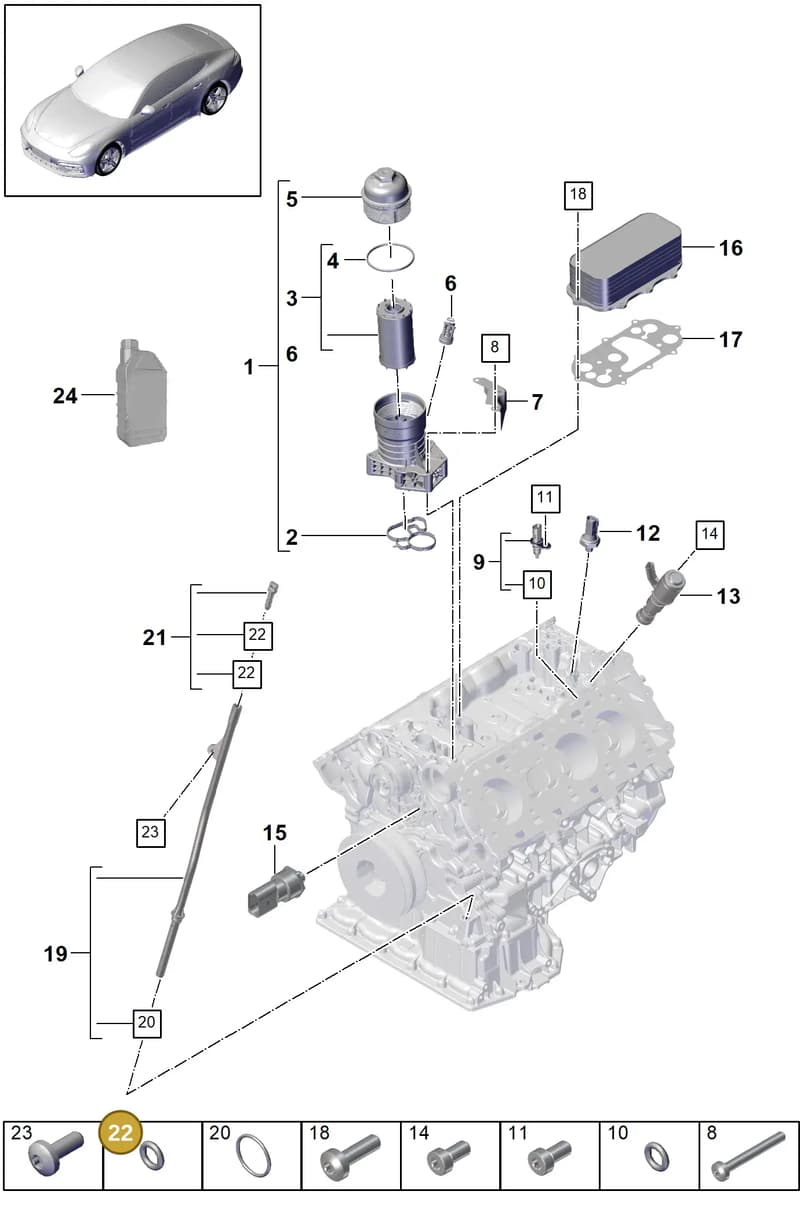

Number 22 marks the part’s position in this exploded view (Porsche Panamera (2023-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Porsche Guide Tube, part number 9A711560910. Fits Porsche Panamera (2016-2025). Shown as position 22 in the engine diagram P5810421.
Catalogue entry: TUBE.
Technical details
- Category
- Engine
- Diagram sheet
- Porsche p58104210, position 22
- ETKA group
- 1 / 04 (104)
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesGuide Tube — locate 9A711560910 Porsche Guide Tube in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Part 9A711540100
- 1Part 9A711540105
- 1Oil Filter PAB115401
- 1Part PAC115401
- 1Part 9A711540110
- 2Seal PAB115441
- 2Seal 9A711544100
- 3Oil Filter 9A719840500
- 4Seal Ring 9A711533100
- 5Cover 9A711531100
- 6Valve 9A710317500
- 7Thermostat 9A711520100
- 7Plate 9A711927500
- 8Bracket 9A710332010
- 8Bracket 9A710332000
- 8Screw N10470703
- 9Bracket 9A713303400
- 9Sensor 9A791952510
- 10Seal Ring WHT002287C
- 11Screw N10285505
- 12Switch 9A791908110
- 13PartRight9A711524302
- 13Valve 9A711524303
- 13PartLeft9A711524301
- 13Bolt N10405604
- 15Pressure PAC906054A
- 15Pressure 9A790605407
- 16Valve 9A710320800
- 16Oil Cooler 9A711701500
- 17Seal Ring 90012311830
- 17Seal 9A710316101
- 18Screw 9A700580400
- 18Bolt N10124306
- 19Tube 9A711560902
- 19Seal 9A712107000
- 20Oil Cooler 9A711701530
- 20O Ring 95510742700
- 20Oil Cooler 9A711701510
- 21Bungs 95810716810
- 21Bolt N10196103
- 22Seal Ring 9A711575700
- 23Bolt N91126601
- 24Engine Oil V04015009H
- 24Part 00004321093
- 27Engine Oil 00004321046
- 27Engine Oil 00004330521
- 27Engine Oil 00004321092
- 28Engine Oil 00004330522
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Panamera | 2023- | 22 | 1 |
| Panamera 4 Hybrid | 2020-2023 | 22 | 1 |
| Panamera 4 Hybrid | 2016-2020 | 22 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
9A711560910 Porsche Guide Tube is fitted on: Panamera 2023-; Panamera 4 Hybrid 2020-2023; Panamera 4 Hybrid 2016-2020.
