Target · Diagram
Find this reference above

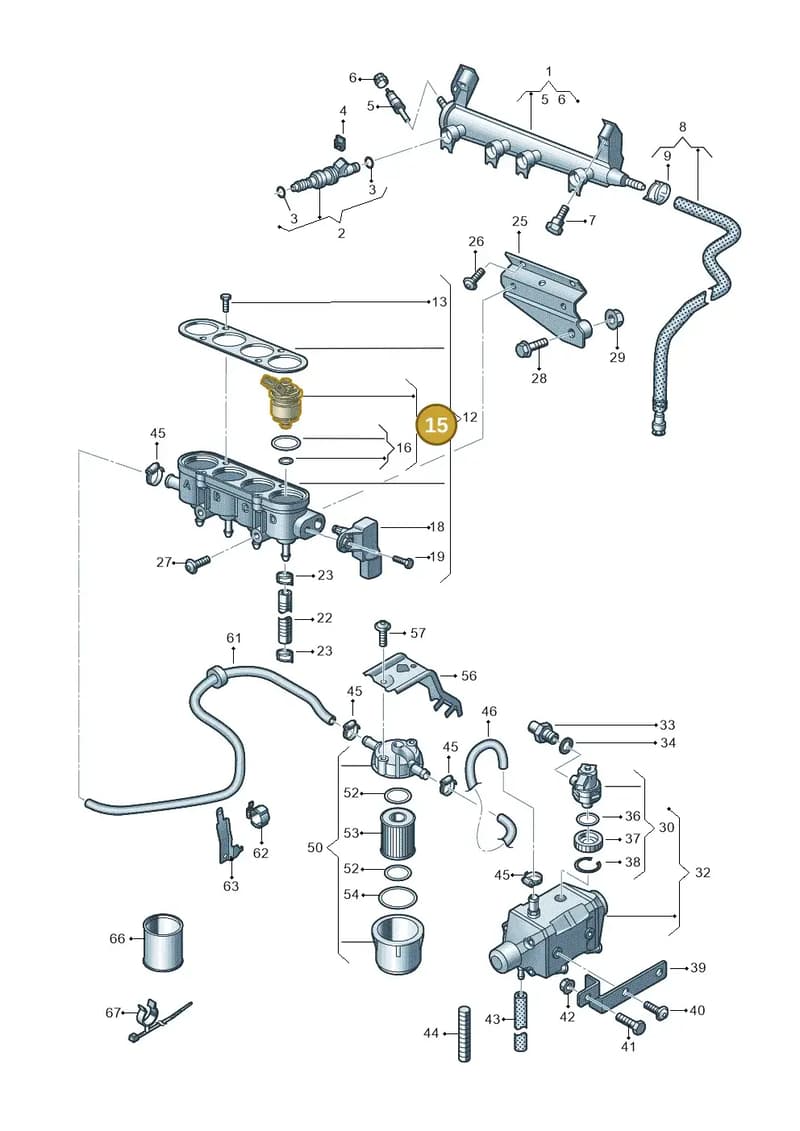

Number 15 marks the part’s position in this exploded view (SEAT Altea XL (2013-)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Injection Valve, part number JNV906031. Fits SEAT Altea XL (2013). Shown as position 15 in the engine diagram 649133440.
Catalogue entry: VALVE ×4; For vehicles with.
Technical details
- Category
- Fuel System
- Diagram sheet
- SEAT 649133440, position 15
- ETKA group
- 1 / 33 (133)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0GG
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
9 vehiclesInjection Valve — locate JNV906031 Volkswagen Injection Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Rail 06A133317AS
- 2Valve 06A906031BT
- 3Seal Ring 035906149A
- 3Seal Ring WHT005422B
- 4Clip 037133047
- 5Valve 022133434
- 6Part 036133335
- 7Bolt WHT001926
- 8Fuel Line 1K0133986AJ
- 9Clamp N90686701
- 12Rail JNV130125A
- 13Bolt N01021020
- 18Part JNV906527
- 19Bolt N01028716
- 22Hose 5K0133321C
- 22Hose 5K0133321D
- 23Clamp 3C0131483
- 25Part JNV201393A
- 26Screw N10721401
- 27Bolt N10670301
- 28Bolt N0195315
- 29Collar Nut N90761102
- 30Valve 6R0907642
- 32Evaporator 6R0133669A
- 33Connection JNV201287
- 34Seal Ring 6R0201174
- 36Seal Ring 6R0133696
- 37Filterelem 6R0133843
- 38Ring N0122871
- 39Bracket JNV133095A
- 40Bolt N91001302
- 41Bolt N90999503
- 42Collar Nut N10205802
- 43Part N10196503
- 44Pipe N10732701
- 45Clamp N10201901
- 46Hose 5K0133321G
- 50Filter 6R0133511C
- 50Filter 6R0133511B
- 52Seal Ring 6R0127113A
- 52Seal Ring 6R0127113C
- 53Filterelem 6R0127177A
- 53Filterelem 6R0127177B
- 54Seal Ring 6R0127113
- 54Seal Ring 6R0127113B
- 56Bracket 5K0133095
- 57Bolt N90737105
- 61Hose 5K0133321B
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Remark |
|---|---|---|---|
| Altea XL Reference | 2013-2013 | 15 | |

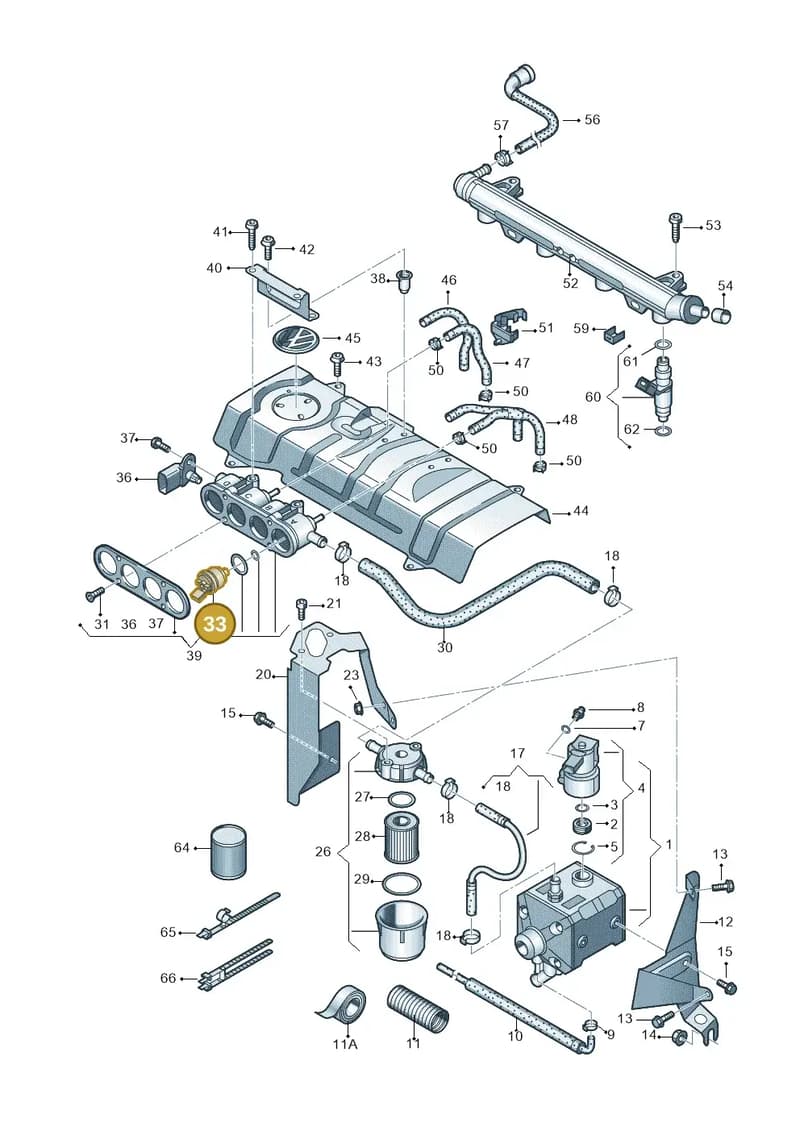

| Ibiza Reference | 2011-2012 | 33 | |
| Altea XL Reference | 2010-2013 | 24, 15 | |
| Leon Stylance | 2010-2012 | 24, 15 | |
| Golf Plus 1.6 | 2009-2011 | 24 | |
| octavia ambiente | 2008-2013 | 24, 15 | EU4 |
| golf 2.0 | 2008-2011 | 24 | |
| ALTEA 07> | 2006- | 24 | |
| LEON 06> | 2005- | 24 |
Diagrams & fitment data powered by oemdiagrams.com
JNV906031 Volkswagen Injection Valve is fitted on: Altea XL Reference 2013-2013; Ibiza Reference 2011-2012; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; Golf Plus 1.6 2009-2011; octavia ambiente 2008-2013; golf 2.0 2008-2011; ALTEA 07> 2006-; LEON 06> 2005-.
