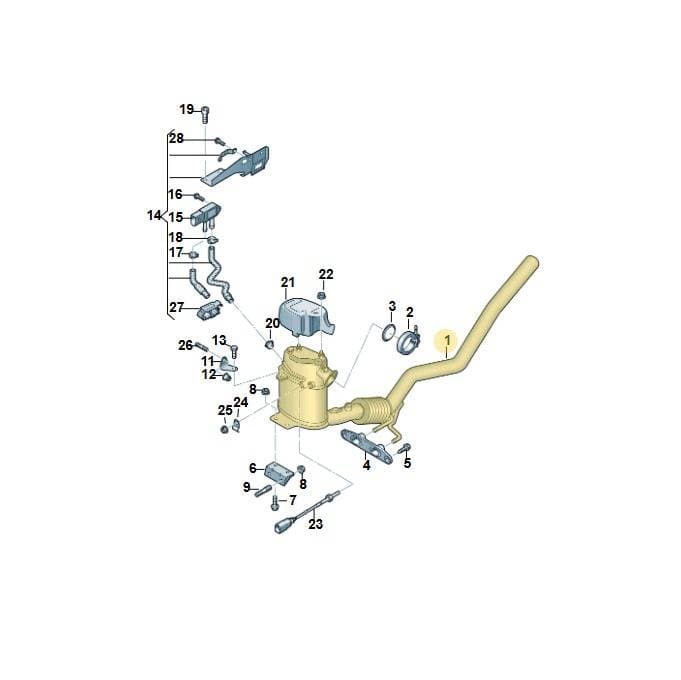

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Protection Sleeve, part number JZW254700HX. This sleeve shields nearby components from the high temperatures generated by the exhaust system. It is located in the exhaust assembly. Made by Volkswagen.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 84213935
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 120 × 42 × 22 cm
- Shipping weight
- 9.72 kg
Parts diagram & fitment
5 vehiclesExhaust Pi — locate JZW254700HX Volkswagen Heat Protection Sleeve | Exhaust System in the official exploded view and explore the surrounding assembly.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(36)
- 1Exh Pipe 1K0254707FX
- 1Exh Pipe 1K0254707PX
- 1Exh Pipe 2K0254700BX
- 1Exh Pipe 2K0254700CX
- 1Exh Pipe 2K0254700DX
- 1Exh Pipe 2K0254700EX
- 1Part JZW254700FX
- 1Exh Pipe 1K0254707LX
- 2Clamp 1K0253725
- 3Seal 1K0253115T
- 4Bracket 1K0253144BC
- 5Bolt N10240003
- 6Bracket 1K0253463AF
- 7Bolt N90786502
- 8Collar Nut N01508315
- 9Bolt N0144833
- 11Bracket 5N0253463
- 12Part WHT003354
- 13Bolt N10653102
- 14Control Line 5T0131552B
- 14Control Line 5T0131552C
- 14Part 1K0131552N
- 16Bolt N10451404
- 16Screw N91096901
- 17Clamp 3C0131483
- 18Clamp 3C0131483A
- 19Bolt N90737105
- 19Screw N91154701
- 20Clamp 4B0422379
- 21Shield 5N0131783A
- 21Shield 5N0131783
- 22Ut Hexagon Nut Self-locking Hexagon Nut N02300215
- 24Bracket 1K0131649A
- 26Bolt WHT002664
- 27Clip 1K0131213
- 28Screw N10284902
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
JZW254700HX Volkswagen Heat Protection Sleeve | Exhaust System is fitted on: Caddy Maxi Kombi 2010-2015; Touran 2.0 2010-2015; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013.
