N0102516 Hexagon Bolt
€0.77 excl. VAT
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

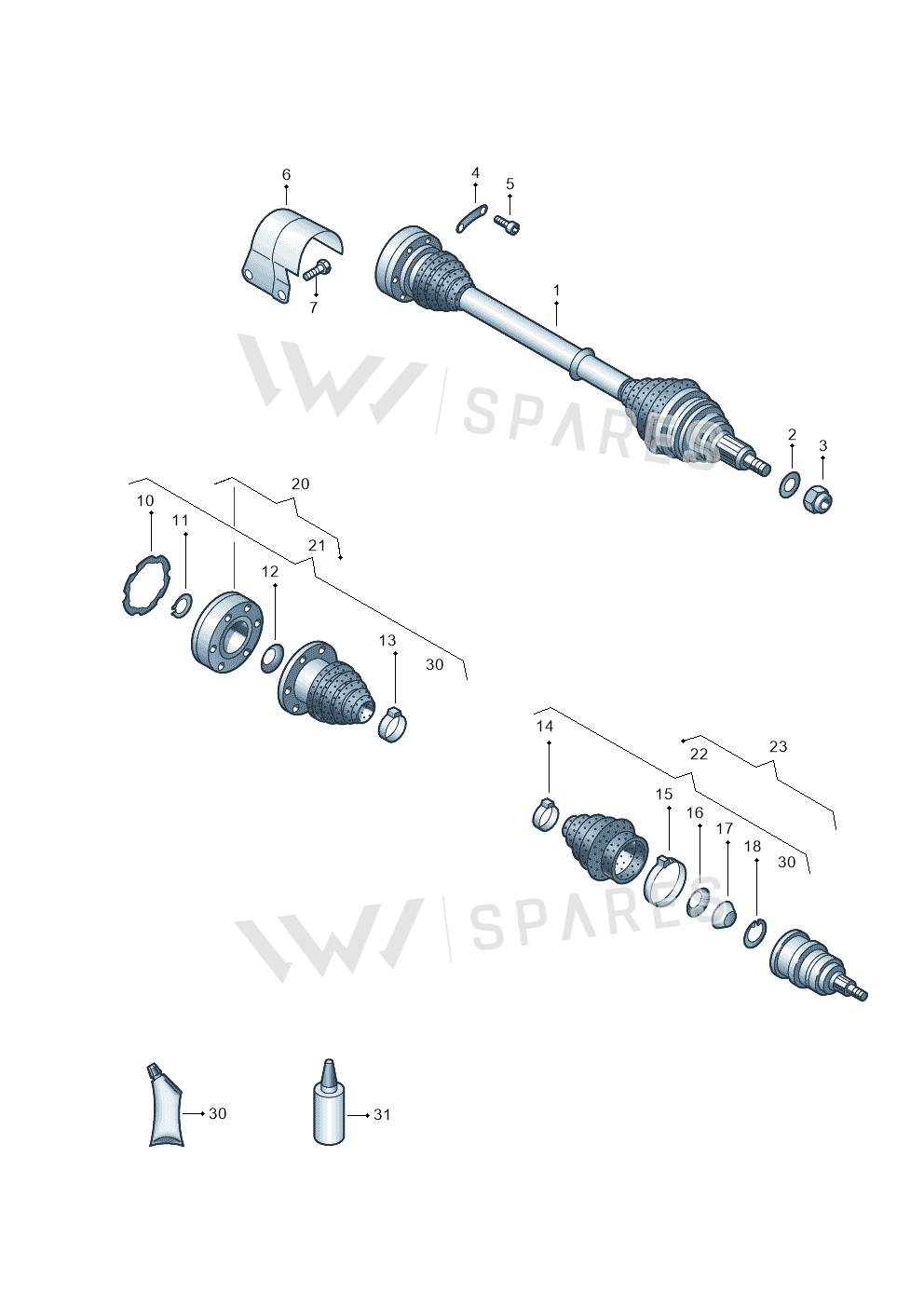

36 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1PartRightJZW407450AX
- 1PartLeftJZW407449AX
- 1DriveshaftLeft1H0407271CX
- 1DriveshaftRight1H0407272PX
- 2Washer 171407277
- 3Utnut 12 Point Socket Shouldered Nut N90587602
- 4Plate 1K0407357C
- 5Screw N91108201
- 10Seal Plate 8D0407309
- 11Circlip 113517279
- 12Spring 113501327A
- 13Clip N90442501
- 15Clip N90772401
- 16Spring 321407287
- 17Press Ring 321407295A
- 18Circlip 171407297C
- 20PartRightJZW498350GX
- 20PartLeft1K0498103X
- 21PartRight191498202A
- 21PartLeft1K0498201
- 22Part 1K0498203
- 23Part JZW498340BX
- 23Wheelshaft 1H0498340X
- 23Wheelshaft 357498099EX
- 30Grease G052133A3
- 31Locking D185400A3
- 31Sealant D454300A2
Vehicle fitment table37
Europe (27)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| GOLF CABRIO | 1998-2001 | 7 | 3 | |
| ALHAMBRA | 1996-2000 | 10 | 1 | |
| GOLF VAR./VENTO | 1996-1999 | 7, 6 | 3 | |
| POLO CLASSIC/VARIANT | 1996-1999 | 13B | 1 | ADC |
| Golf | 1996-1997 | 7, 6 | 3 | |
| SHARAN/SYNCRO | 1995-2000 | 10, 13 | 1 | |
| Golf 96 | 1995-1996 | 7 | 3 | |
| Golf Var./Vento 96 | 1995-1996 | 6, 7 | 2 | AGG |
| Passat | 1994-1997 | 17 | 2 | |
| Golf Cabrio | 1994-1996 | 7 | 3 | |
| Golf/Ecomatic 95 | 1994-1995 | 7, 6 | 3 | |
| Golf Var./Vento 95 | 1994-1995 | 7, 6 | 3 | |
| Jetta GLX 94 | 1993-1994 | 7 | 3 | |
| Transporter syncro | 1992-1995 | 6 | 4 | |
| GOLF/Ecomatic | 1991-1994 | 7 | 3 | |
| Passat | 1991-1993 | 17 | 2 | |
| Corrado | 1989-1995 | 20 | 2 | |
| Passat | 1989-1991 | 17 | 2 | |
| Jetta | 1989-1991 | 17 | X | |
| Jetta 89 | 1988-1989 | 17 | X | |
| Jetta 88 | 1987-1988 | 17 | 2 | |
| Jetta 87 | 1986-1987 | 42B | 2 | |
| Jetta 86 | 1985-1986 | 42B | X | |
| Jetta 85 | 1984-1985 | 42B | X | |
| Scirocco | 1983-1989 | 42B | 2 | |
| Jetta | 1981-1984 | 42B | X | |
| Scirocco | 1981-1983 | 42B | X |
Other markets (8)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Eurovan | 1996-1997 | 6 | 4 | |
| NOVA PARATI | 1995-2002 | 19, 20, 26 | ||
| NOVO GOL/SAVEIRO | 1994-2002 | 19, 20, 18, 26 | ||
| Eurovan 95 | 1994-1995 | 6 | 4 | |
| JETTA (FAW) 91> | 1991- | 17 | 1 | AHP:CHW,DQF; |
| Eurovan | 1991-1994 | 6 | 4 | |
| Rabbit Conv./Cabrio | 1983-1993 | 42B | X | |
| Rabbit Conv. | 1981-1983 | 42B | X |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 325 platform | 3 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Vanagon | 1987-1992 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: GOLF CABRIO 1998-2001; ALHAMBRA 1996-2000; GOLF VAR./VENTO 1996-1999; POLO CLASSIC/VARIANT 1996-1999; Golf 1996-1997; SHARAN/SYNCRO 1995-2000; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Passat 1994-1997; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Jetta GLX 94 1993-1994; Transporter syncro 1992-1995; GOLF/Ecomatic 1991-1994; Passat 1991-1993; Corrado 1989-1995; Passat 1989-1991; Jetta 1989-1991; Jetta 89 1988-1989; Jetta 88 1987-1988; Jetta 87 1986-1987; Jetta 86 1985-1986; Jetta 85 1984-1985; Scirocco 1983-1989; Jetta 1981-1984; Scirocco 1981-1983; Eurovan 1996-1997; NOVA PARATI 1995-2002; NOVO GOL/SAVEIRO 1994-2002; Eurovan 95 1994-1995; JETTA (FAW) 91> 1991-; Eurovan 1991-1994; Rabbit Conv./Cabrio 1983-1993; Rabbit Conv. 1981-1983; 325 platform.
