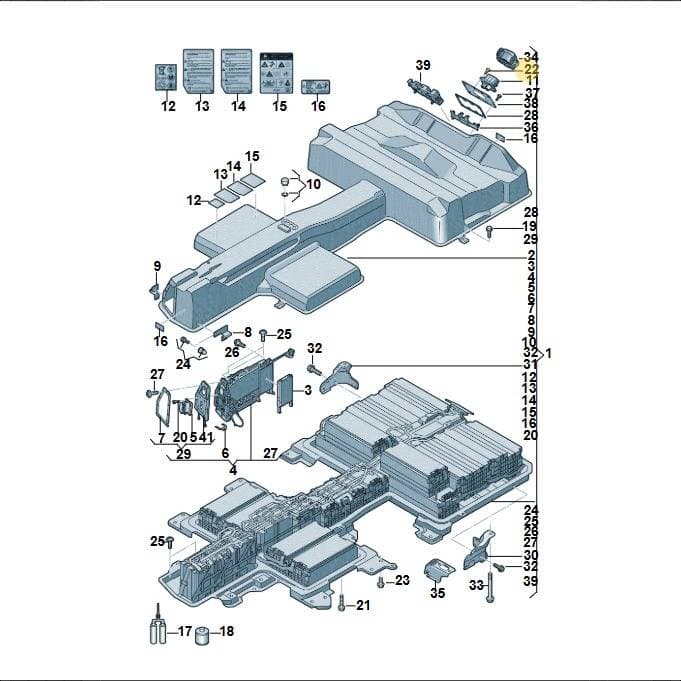

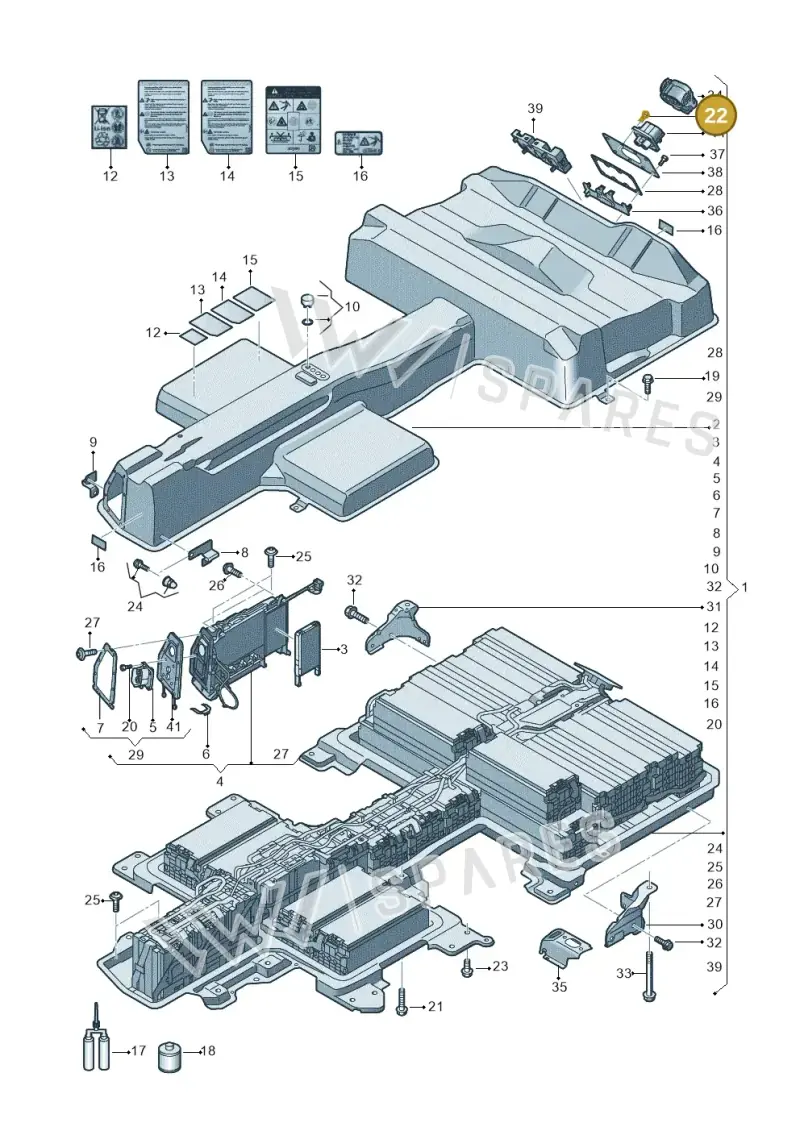

Number 22 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hexagon Bolt, part number N0102649. This hexagonal head bolt is used in various electrical and mechanical systems, including cooling and transmission components. It is located at position 22 in the diagram. Genuine OEM bolts ensure precise fitment and material strength for reliable component attachment.
Catalogue entry: BOLT M5X20 ×4.
Fitted with: 7LE804841 HOUSING, 5QE905452 SEAL, 1EA010505 WARN. SIGN, 12E010006Q WARN. SIGN, 12E010001B SIGN, D004660M2 2-PACK ADH, D181220A1 PRIMER, D181802M1 ACTIVATOR, 000012280A APPLICATOR, D00940104 CLEANER, N10653103 BOLT, N91252401 BOLT.
Technical details
- Category
- Battery & Charging
- Country of origin
- Germany
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.4 × 0.8 × 0.8 cm
- Shipping weight
- 0 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M5x20 mm
Equipment codes
- ES7
- only withES7
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
37 vehiclesHexagon Bolt — locate N0102649 Volkswagen Hexagon Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly30
- 1Battery 7LE915597C
- 1Battery 7LE915597D
- 2Housing 7LE804841
- 3Control Unit 5GE915225B
- 4Part 000915340D
- 5Support 12E915703A
- 6Clip 0BH325147
- 7Seal 5QE905452
- 8Strap 5QE804713
- 9Strap 5QE804714A
- 10Repair Kit 12E998754
- 11Support 5QE915703B
- 12Warning Sign 1EA010505
- 15Warning Sign 12E010006Q
- 16Sign 12E010001B
- 172-pack Adh D004660M2
- 18Applicator 000012280A
- 18Cleaner D00940104
- 18Activator D181802M1
- 18Primer D181220A1
- 19Bolt N10653103
- 20Screw N10569501
- 24Screw WHT000869
- 25Bolt N10661002
- 27Bolt N91252401
- 28Seal 5QE915433L
- 36Fuse 5QE972300C
- 38Support 5QE915316K
- 39Fuse 5QE972226C
- 41Support 5QE915316AA
Vehicle fitment table38
Europe (26)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| E-Crafter 35 | 2018-2024 | 22 | 4 | ES7 | |
| e-Golf | 2014-2021 | 22 | 4 | PR:ES5,ES6, | |

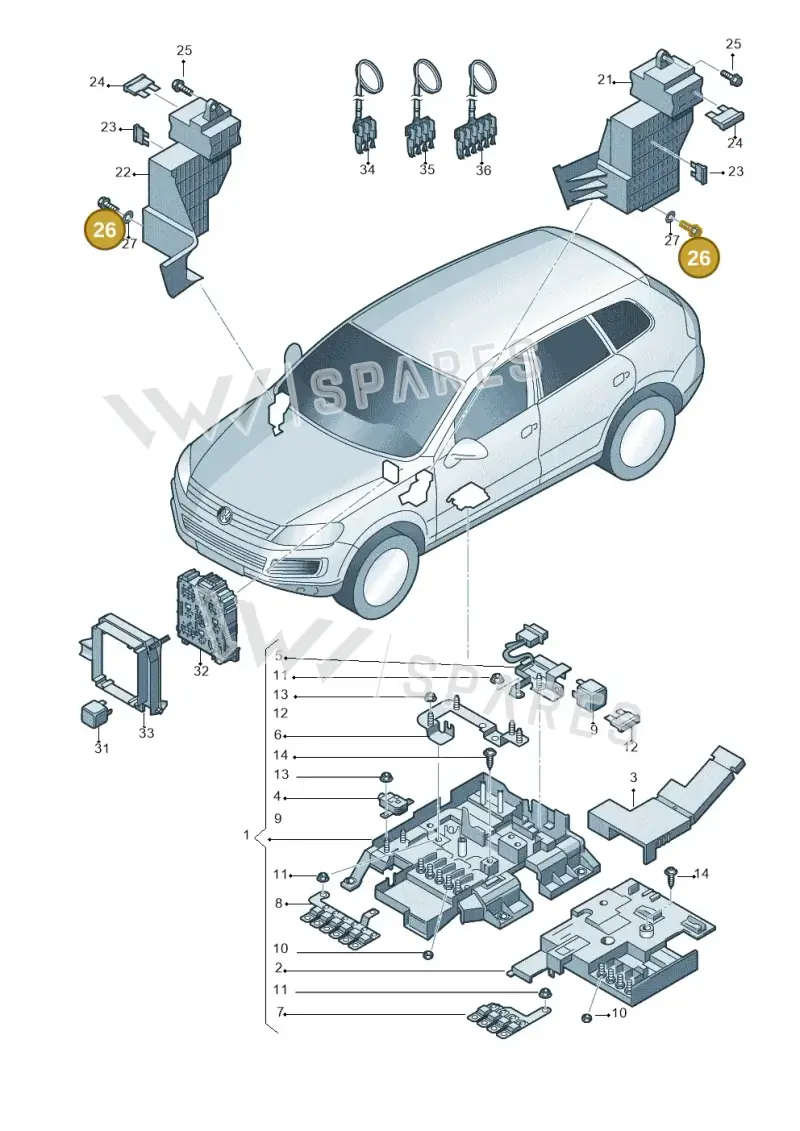

| Touareg BlueMotion | 2014-2018 | 26 | |||
| touareg | 2012-2014 | 26 | |||
| Polo | 2011-2014 | 12 | 1 | G0E | |
| touareg | 2010-2012 | 26 | |||
| Sharan | 2008-2010 | 29 | X | ||
| Touareg 08> | 2007- | 26 | |||
| Cayenne | 2007-2010 | 7 | 1 | PR:G0L | |
| Alhambra | 2006-2010 | 29 | X | ||
| SHARAN/4MOTION | 2005- | 29 | X | ||
| IBIZA 06> | 2005- | 12 | 2 | ||
| CORDOBA 06> | 2005- | 12 | 2 | ||
| ALHAMBRA/4MOTION | 2005- | 29 | X | ||
| FABIA/COMBI 05> | 2004- | 12 | 2 | ||
| Cayenne | 2002-2006 | 7 | 1 | PR:G0L | |
| SHARAN/4MOTION | 2002-2005 | 49, 25 | 2 | ||
| CORDOBA/SE241 | 2002-2005 | 12 | 2 | ||
| Audi A8 quattro | 1999-2002 | 7 | 1 | ||
| AUDI A8 | 1998-2002 | 7 | 1 | ||
| SHARAN/SYNCRO | 1995-2000 | 13, 49, 25 | 1 | ||
| Audi 90 93 | 1992-1993 | 29 | 4 | ||
| Audi 100/Wagon 92 | 1991-1992 | 21, 19 | 2 | ||
| Audi 100/Wagon qu. 92 | 1991-1992 | 4, 25, 21, 19 | 3 | ||
| Polo/Polo Coupe | 1990-1994 | 18 | 2 | ||
| Audi 100/Wagon | 1989-1990 | 10, 4 | 8 |
Other markets (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| E-Bora | 2019- | 22 | 4 | ||
| Audi Q2L BEV | 2019-2023 | 22 | 4 | L0L | |
| e-Golf | 2019-2020 | 22 | 4 | ||
| polo sedan | 2011-2014 | 12 | 1 | G0E | |
| POLO HATCH "BR."07> | 2006- | 12 | 1 | G0E | |
| POLO SEDAN "BR."07> | 2006- | 12 | 1 | G0E | |
| MARINE-MOTOR 02> | 2002- | 30, 6, 27 | 1 | ||
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 3, 5 | 1 | ||
| NOVA PARATI | 1995-2002 | 6 | 3 | ||
| NOVO GOL/SAVEIRO | 1994-2002 | 16, 6 | 3 | 498 | |
| Vanagon syncro | 1985-1992 | 7 | 2 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| CAMPMOBIL-T5 08 | 2007- |
