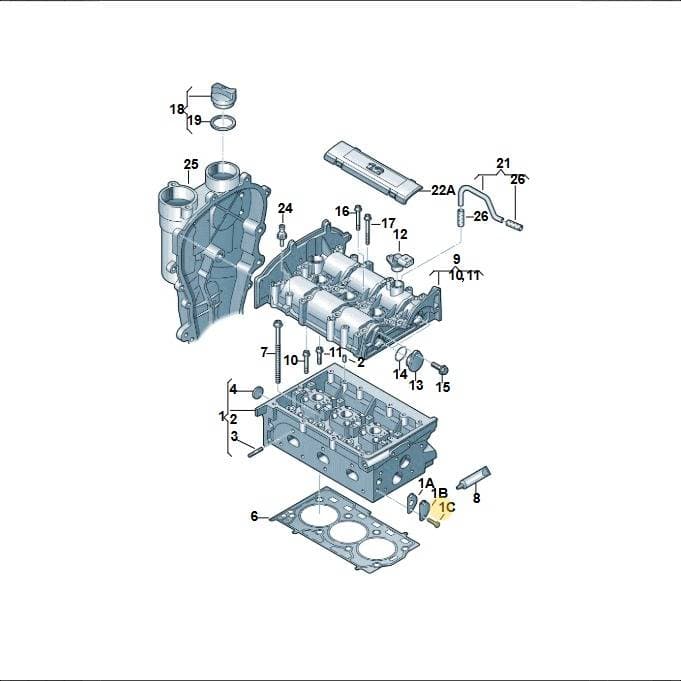

Number 1C marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hexagon Bolt, part number N01029315. This bolt is used in critical engine components such as cylinder heads, crankshafts, and exhaust systems. It is located at position 1C in the diagram. The bolt has dimensions of 0.021m length, 0.013m width, and 0.013m height. Genuine OEM bolts provide the correct tensile strength and thread pitch for secure and reliable assembly.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.1 × 1.3 × 1.3 cm
- Shipping weight
- 0.01 kg
Parts diagram & fitment
44 vehiclesHexagon Bolt — locate N01029315 Volkswagen Hexagon Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(32)
- 1Cylinder Head 036103264BX
- 1Cylinder Head 036103351P
- 1ASeal 036131550H
- 1BPlate 036131281
- 2Part N0132102
- 3Bolt N0444104
- 5Screw N0294562
- 7Cover N01191410
- 8Bungs 056103379A
- 8Bungs 056103379
- 10Seal 036103383AM
- 11Screw 036103384B
- 12Sealant D154102A1
- 12Sealant D188003A1
- 14Seal 036103085A
- 15Screw N10247504
- 16Screw N10300805
- 17Cover 036103111
- 18Seal Ring N90344501
- 19Bolt N10082912
- 20Cover 036103111A
- 24Pipe 036115302S
- 25Seal 06A103483D
- 26Grommet 036103638A
- 27Valve 036103175A
- 28Hose 036103560
- 32Buffer 036129689B
- 33Stud 036129846
- 34Eyelet 036103388E
- 35Screw N91026802
- 36Seal Ring 036133287
- 37Cover 06B103485C
Diagrams & fitment data powered by oemdiagrams.com
N01029315 Volkswagen Hexagon Bolt | Genuine OEM is fitted on: CADDY 2004-; GOLF PLUS 05> 2005-; POLO 2005-; Golf/Rabbit 2005-2007; SHARAN/4MOTION 2005-; TOURAN 2005-2006; 377 platform; Polo 2011-2014; polo sedan 2011-2014; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; TOURAN 2006-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; caddy panel van 2008-2010; Sharan 2008-2010; Polo 2008-2009; Touran 1.9 2008-2010; transp. caravelle 2008-2009; transp. dropside 2008-2009; Polo 2009-2012; transp. caravelle 2009-2011; transp. dropside 2009-2011; Caddy Maxi Kombi 2010-2015; Golf 2011-2013; Golf Plus 2011-2014; transp. caravelle 2011-2015; transp. dropside 2011-2015; Polo 2012-2014; Polo 2014-2022; Ameo 1,0 2016-2020; 2X2 platform; Audi R8 08> 2007-; Audi R8 qu. 5.2 2012-2015; ALHAMBRA/4MOTION 2005-; Ibiza Reference 2008-2011; Alhambra 2006-2010; Ibiza Reference 2012-2012; FABIA/COMBI 1999-2004; OCTAVIA/COMBI/4X4 01> 2000-.
